Operating Manual R-Series | Version 2.2 | 15.09.2020
© 2012 by Vogel & Plötscher GmbH & Co. KG Page: 12 / 21

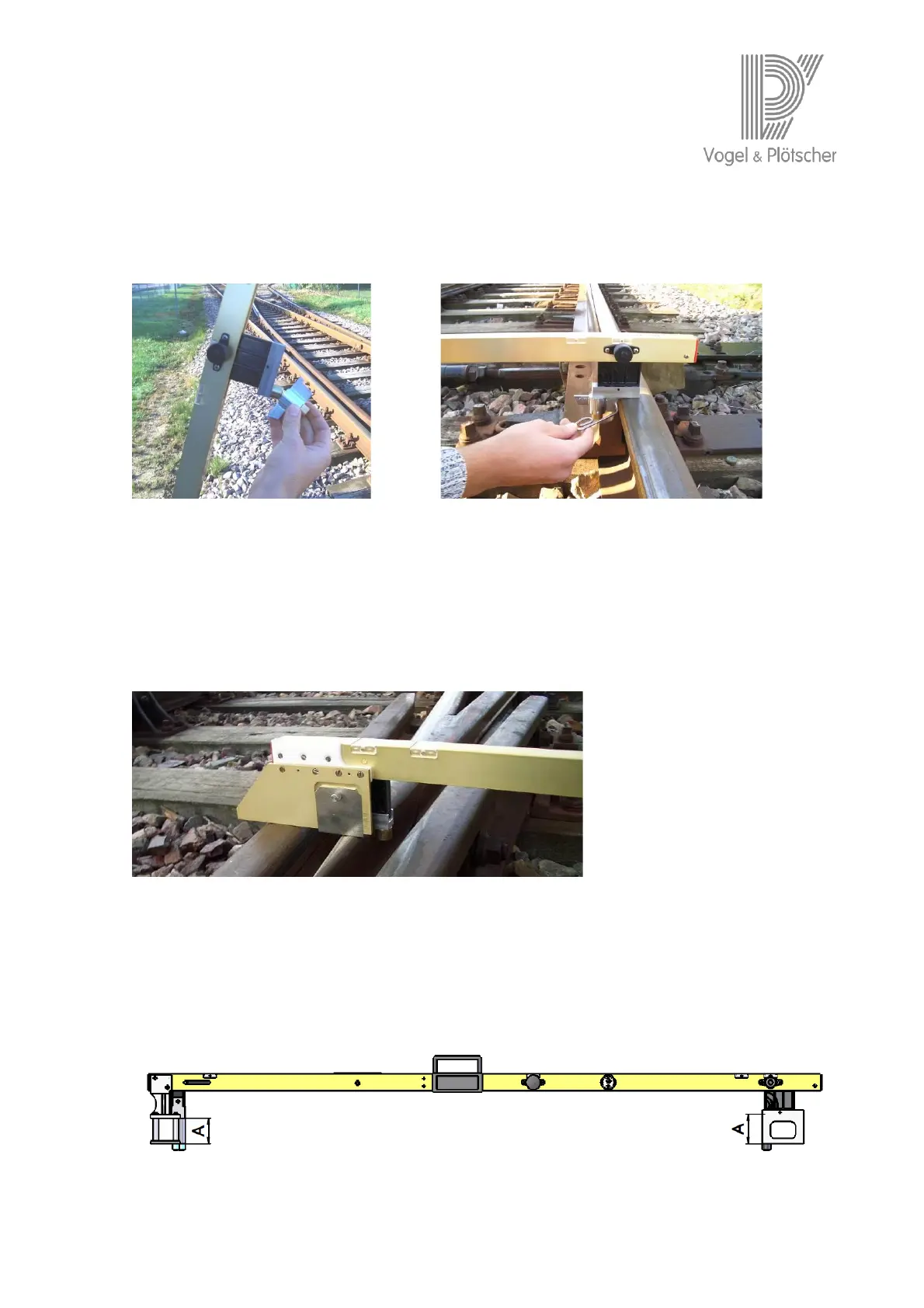

4.2 Option -P (blade inspection adapter)
Detach the blade inspection adapter from the retaining bolt and slot it onto the measuring bolt. For
the test conditions refer to the relevant inspection standards.
Figure 11 Figure 12
4.3 Option -H (crossing tip inclination)
Position the measuring device on the crossing. Open the retainer and mount the height gauge on the
crossing. Read off the measured value directly from the scale. Crossing tip inclination measuring
range: 0 – 20mm.
Figure 13: Option -H
4.4 Option -ZB (cogwheel operation)
The clearance (A) between the top of the rail and the bottom of the device can be increased as
required, such as to measure cogwheel rails (→ Figure 14).
Figure 14: Option -ZB
