Operating Manual R-Series | Version 2.2 | 15.09.2020

4.5 Option -R20 (flangeway 20 mm)

This option enables the measurement of grooved rails with flangeway clearances of ≥ 20 mm.

4.6 Option -W (changeable probes)

Changeable bolts can be used to adapt the measuring device variably to country-specific standards

and/or different rail types (e.g. vignole or grooved rail). Interchangeable bolts are available as

standard in the following variants and lengths:

- Cylindrical measuring probes (= variant Z)

- Shouldered “mushroom type” measuring probes (= variant A)

- Measuring probe lengths: 9 | 10 | 14 | 16 mm (in each case referred to rail surface)

All interchangeable probes have a screw thread and can be replaced on the measuring device by

screwing in and out.

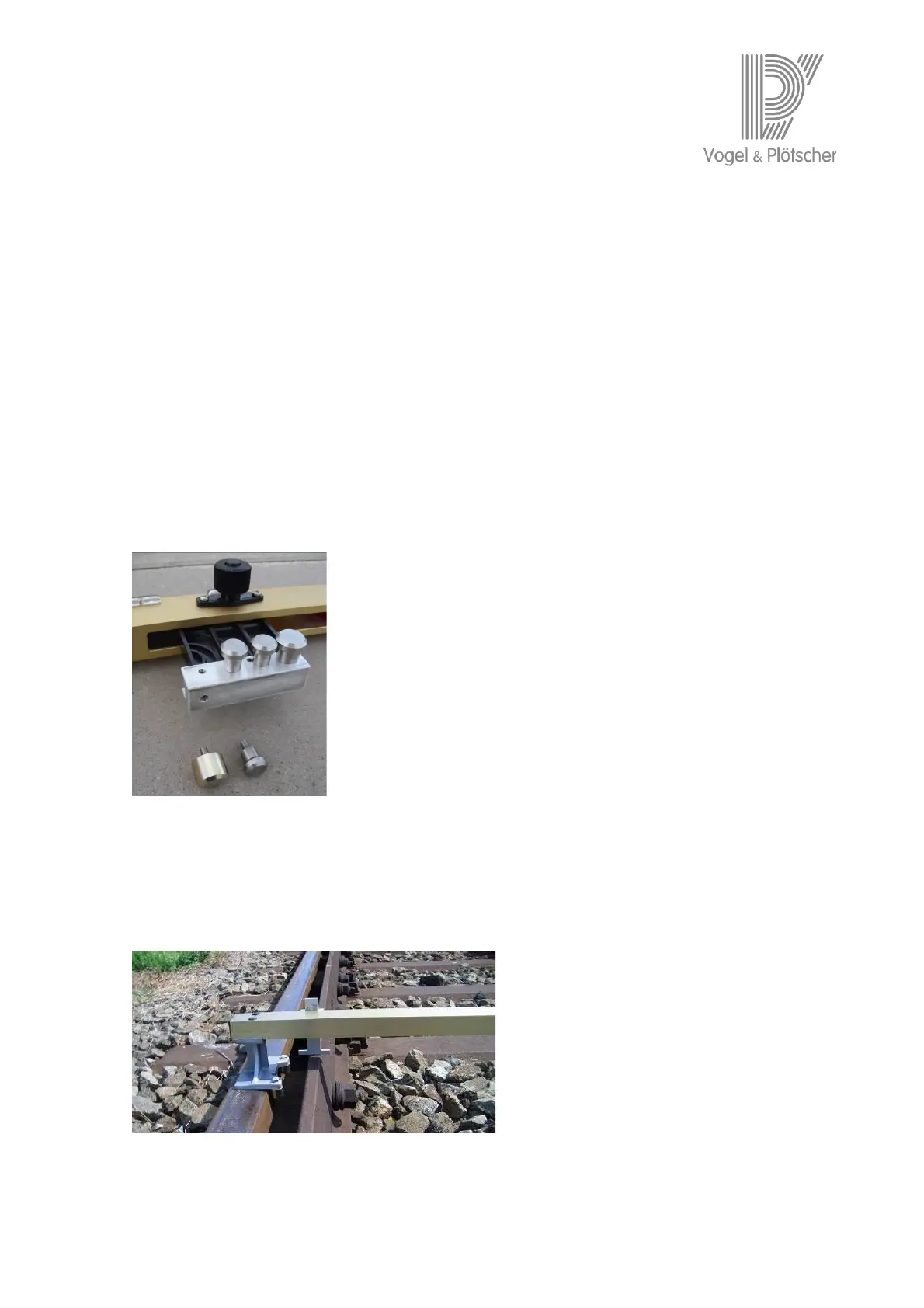

Figure 15: Option –W

4.7 Option -RH (check rail height measuring device)

With this measuring device the height difference between the rail surface and the check rail surface

can be measured by shifting the measuring arm vertically onto the check rail.

Figure 16: Option -RH
