Operating Manual R-Series | Version 2.2 | 15.09.2020
© 2012 by Vogel & Plötscher GmbH & Co. KG Page: 8 / 21
3.2 Measuring flangeway clearance (RA | RCA)
Position the measuring device on the track at the measuring point. Push the sliding bolt towards the
track construction (e.g. check rail or wing rail) until the measuring bolt makes contact. Read off the
measured value.

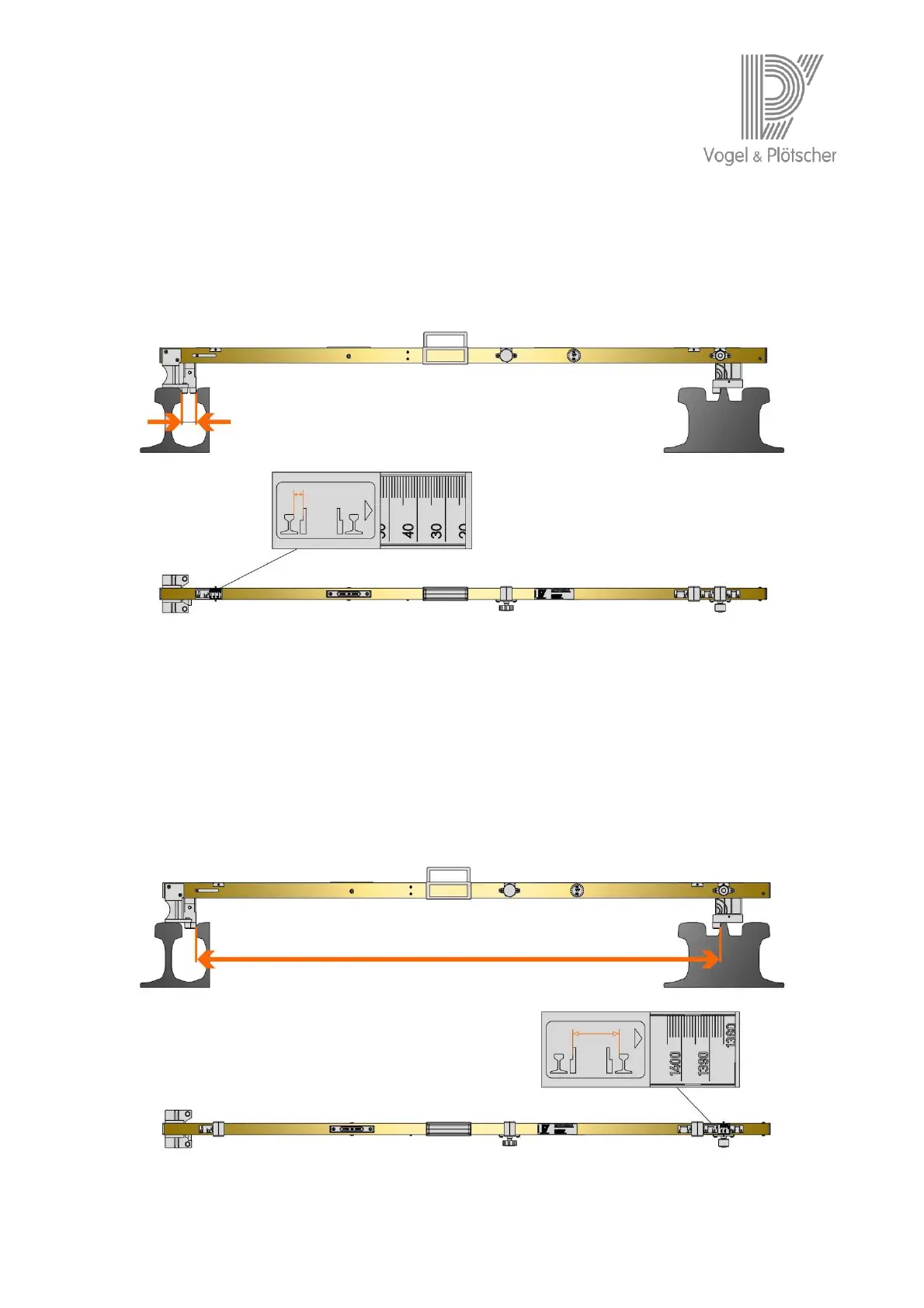

Figure 3: Measuring flangeway clearance
3.3 Measuring check rail gauge (RA |RCA)
Position the measuring device on the track at the measuring point. Fix it in place such that the
measuring bolt of the flangeway slider makes contact on the inside (i.e. on the check rail)! With the
fine adjuster, turn the measuring bolt of the narrow contact towards the crossing as far as it will go
and read off the measured value.
Figure 4: Measuring check rail gauge
