Operating Manual R-Series | Version 2.2 | 15.09.2020
© 2012 by Vogel & Plötscher GmbH & Co. KG Page: 11 / 21
4. Options
4.1 Option -T (separation)
Separable measuring device variant (asymmetric).

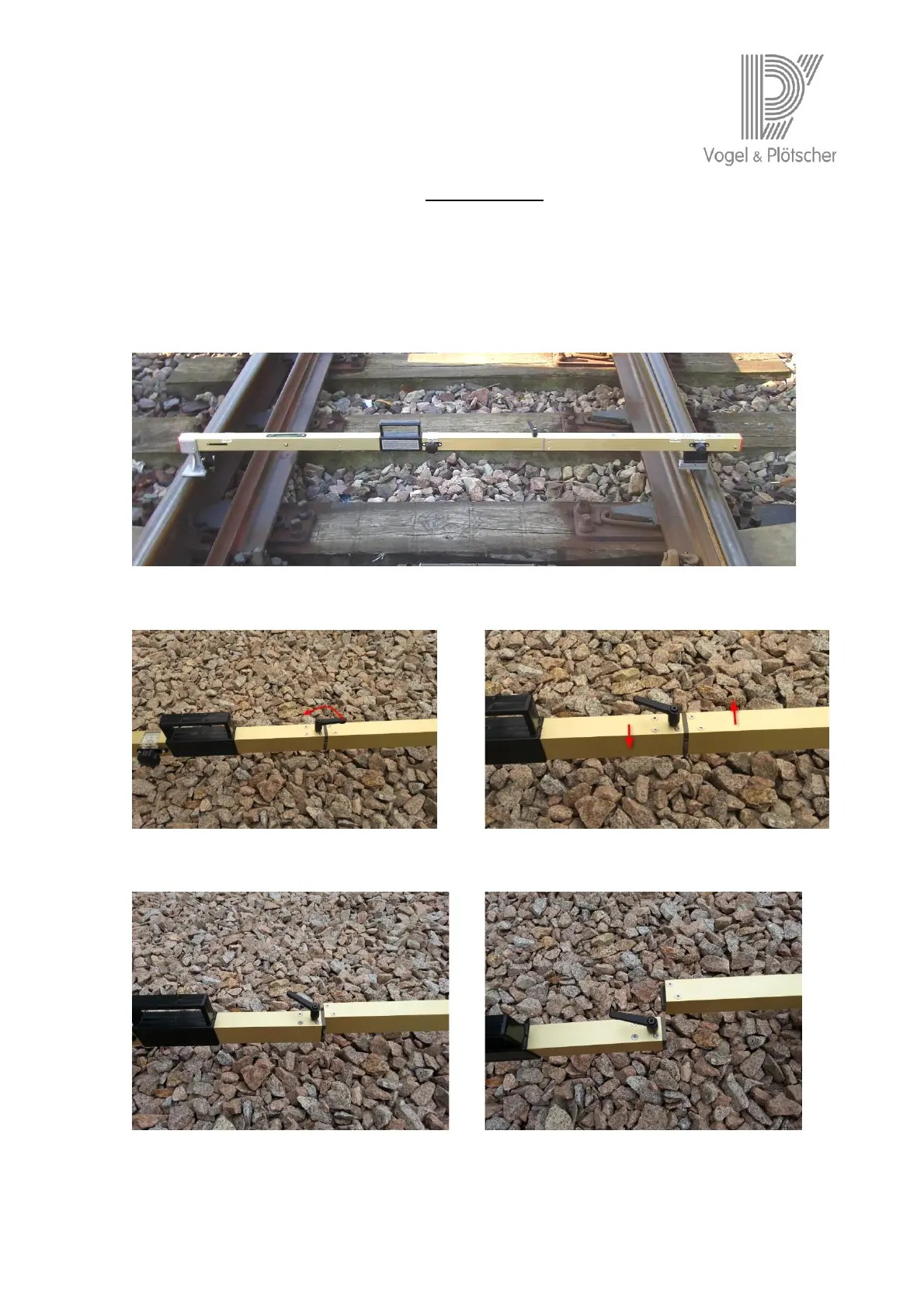

Figure 7: Option -T (example: RCA-T)
Figure 8: Separating (turn anti-clockwise) Figure 9: Lateral adjustment of both section
Figure 10: Joining of the separation in reverse order
