Operating Manual R-Series | Version 2.2 | 15.09.2020
© 2012 by Vogel & Plötscher GmbH & Co. KG Page: 9 / 21
3.4 Measuring back-to-back distance (RA | RCA)
Position the measuring device on the track at the measuring point. Fix it in place such that the
measuring bolt of the flangeway slider makes contact on the inside (i.e. on the check rail)! With the
fine adjuster, turn the measuring bolt of the narrow contact towards the wing rail as far as it will go
and read off the measured value.

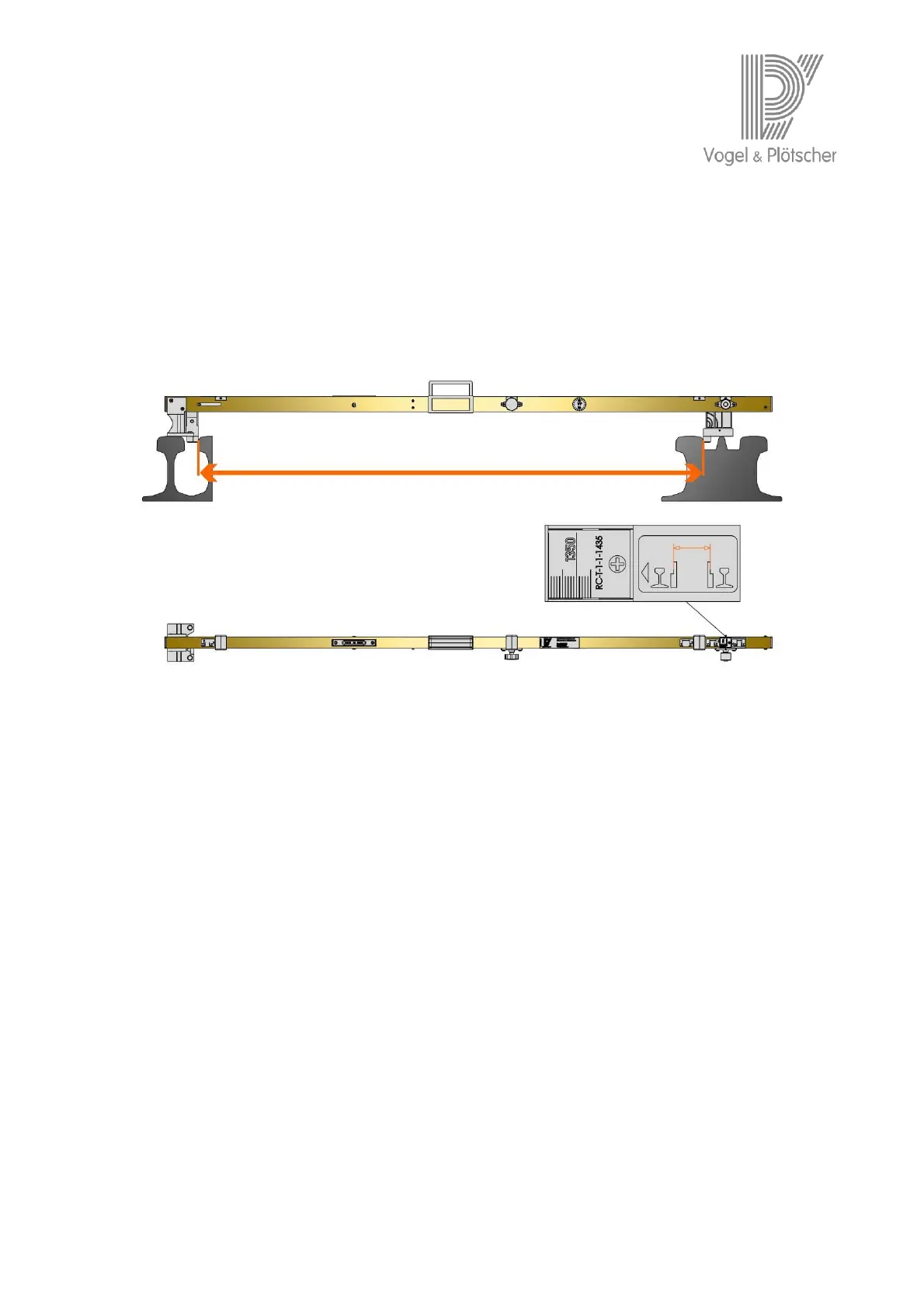

Figure 5: Measuring back-to-back distance
