2. Commissioning
2.1 Device description
The measuring device consists of a solid anodised aluminium tube. In the separable variant (→
Options) the measuring device can be separated asymmetrically.

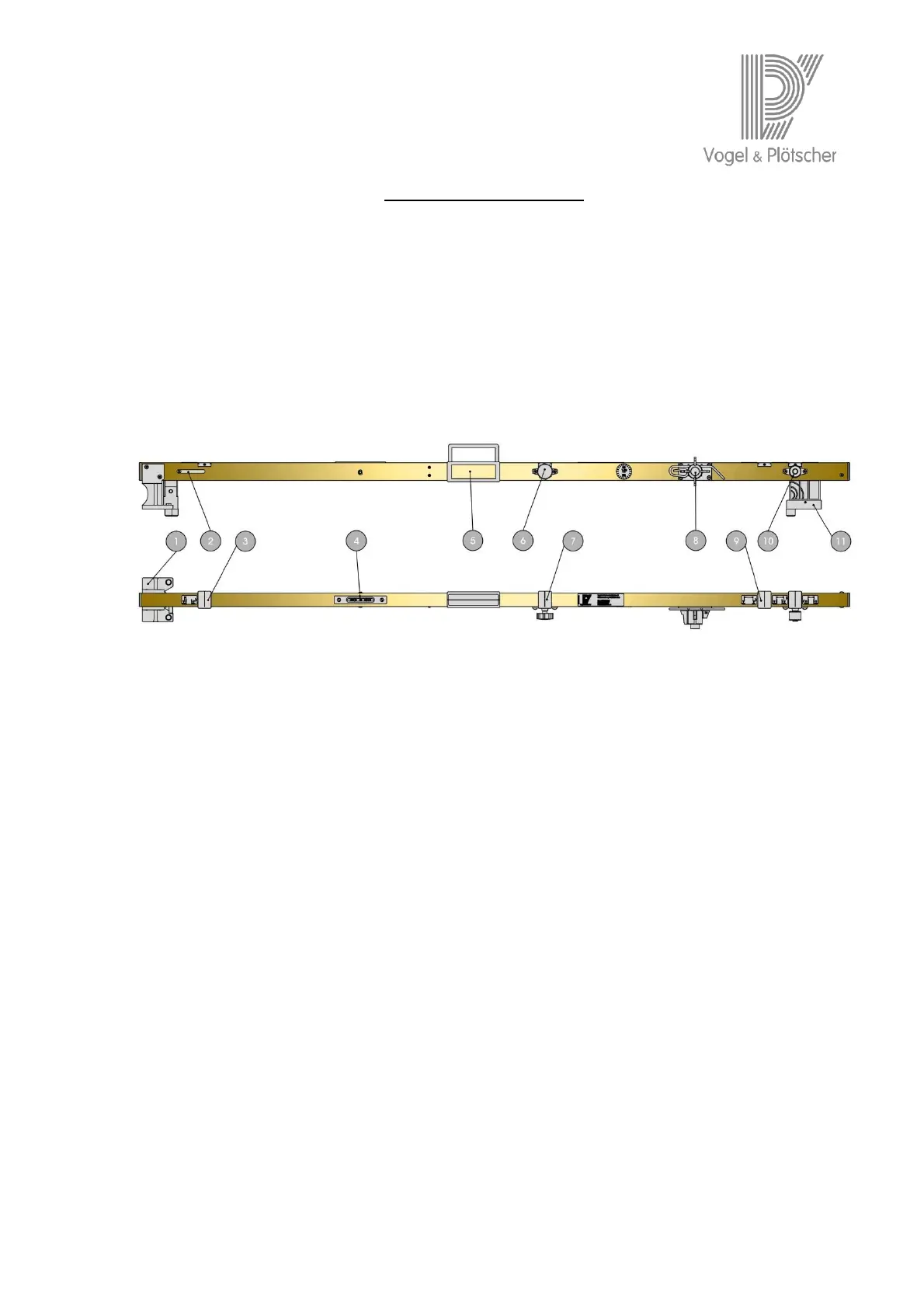

Figure 1: Device description for model RCA
Item 1: Broad contact
Item 2: Shifter for flangeway measurement (RA | RCA)
Item 3: Readout window for flangeway measurement (RA | RCA)
Item 4: Spirit level (RCA | RCS | RCFF)
Item 5: Carrying handle
Item 6: Pivot handle for cant (RCA | RCS | RCFF)
Item 7: Readout window for cant (RCA | RCS | RCFF)
Item 8: Blade inspection gauge (optional)
Item 9: Readout window for track gauge, check rail gauge and back-to-back distance
Item 10: Fine adjuster for track gauge, check rail gauge and back-to-back distance
Item 11: Narrow contact with interchangeable bolt (optional)
