3. Operation | Measurement
When measuring, both measuring bolts of the broad contact must be contacting on the rail
head in order to avoid measurement inaccuracies resulting from angle errors.
3.1 Measuring track gauge (RA | RCA | RCS | RCFF)
Position the measuring device on the track at the measuring point. With the fine adjuster, turn the
measuring bolt of the narrow contact towards the rail head as far as it will go. Read off the measured
value.

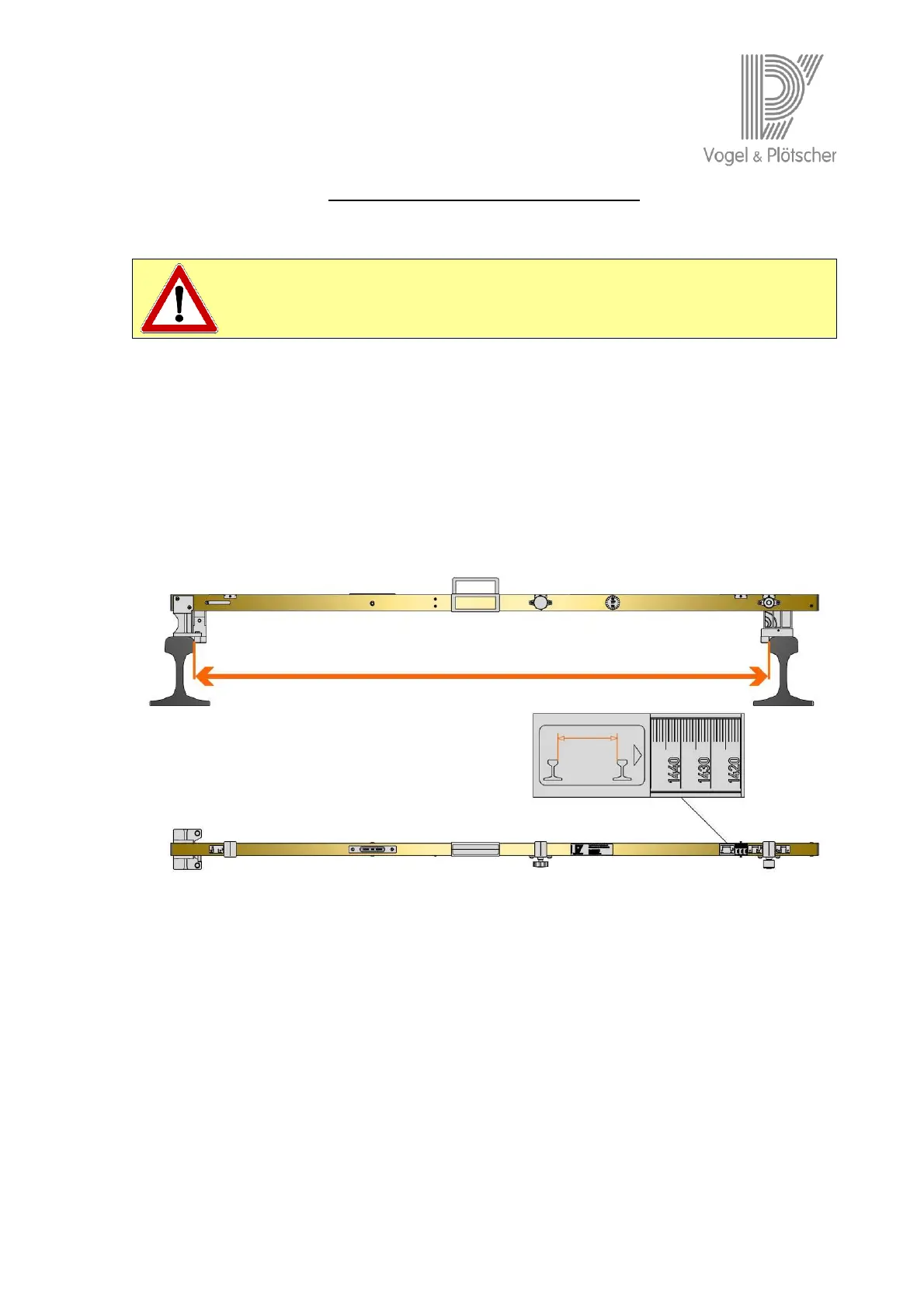

Figure 2: Measuring track width
