Vogt P18FXT User Manual

10TA Service Manual
SERVICE OPERATIONS
4/28/14
9-20
DEFLECTOR PLATE
PART NO. 19T4001S023
SPIRAL PIN HOLDS DISC
ASSEMBLY TO CUTTER SHAFT
PART NO. 12A3040S01
CUTTER MOTOR
208/230/460V-3Ph-50/60Hz
PART NO. 12A2900M0508
GEAR REDUCER
PART NO. 12A4030R12
GUM RUBBER GASKET
PART NO. 12A2600G05
CUTTER DISC ASSEMBLY
PART NO. 19T2163D0202
PIN FOR CUTTER BEARING
PART NO. 12A3040S02
CUTTER SUPPORT
PART NO. 12A2025B0102
UHMW CUTTER BEARING
PART NO. 19T2160C0201
CUTTER ASSEMBLY
FOR CYLINDER ICE
PART NO. 19T2160C0202
ADAPTOR PLATE
FOR CAST CUTTER
PART NO. 19T2010A12

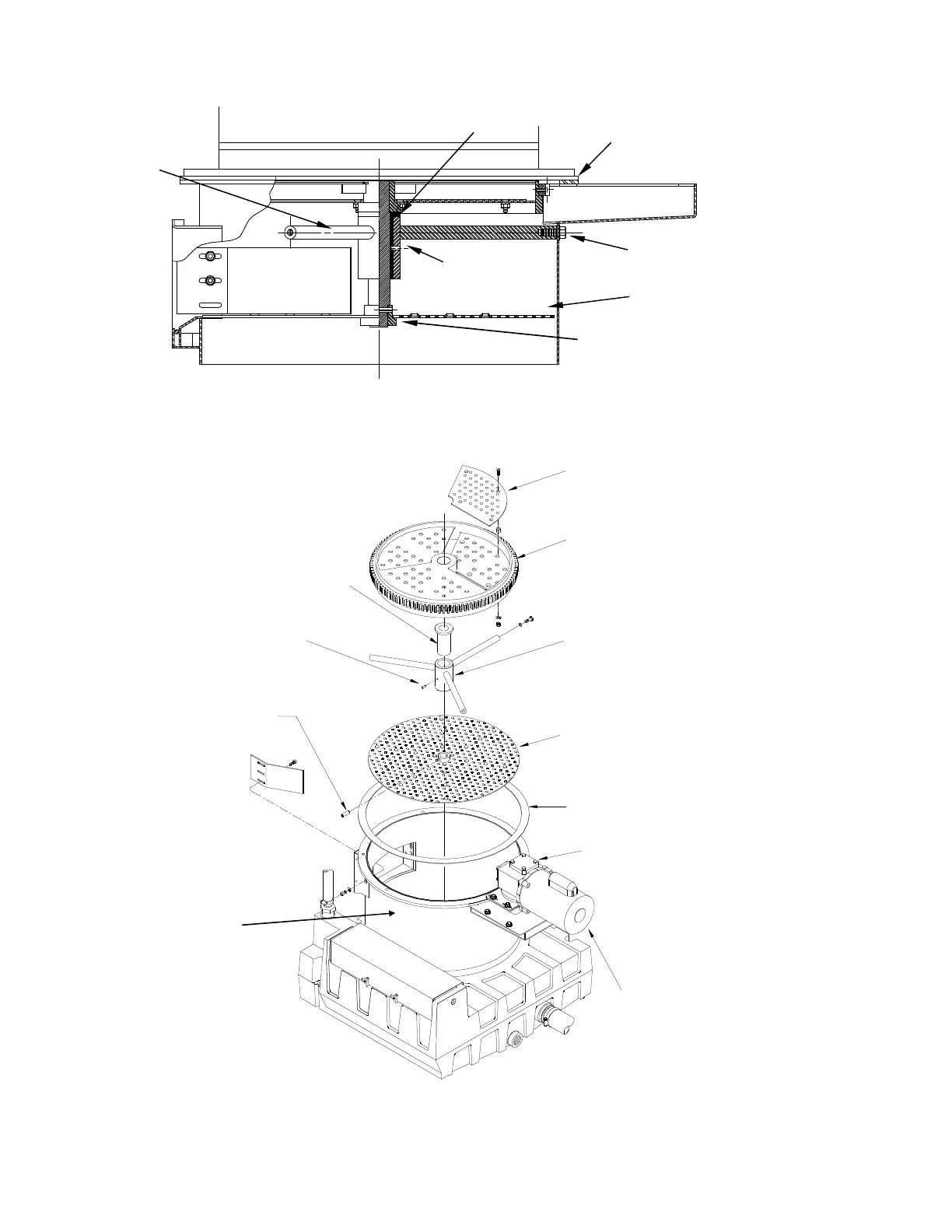

FIGURE 9-14
Cutter Assembly
FIGURE 9-15
Cutter Parts (cylinder ice)
FREEZER
CUTTER BEARING (47)
GASKET
DRIVE PIN
FOR BEARING
BEARING
SUPPORT
BRACKET
CUTTER HOUSING
DRIVE PIN FOR CUTTER DISC
CUTTER DISC
ICE DEFLECTOR
PLATE
3/8” BOLTS FASTEN BEARING
SUPPORT TO CUTTER HOUSING
PART NO. 19T2160C0202
NO>19T2160C02012
19T4500S01805
CUTTER HOUSING
ASSEMBLY
