10TA Service Manual
ELECTRICAL CONTROLS
4/14/14
6-9
FIGURE 6-4

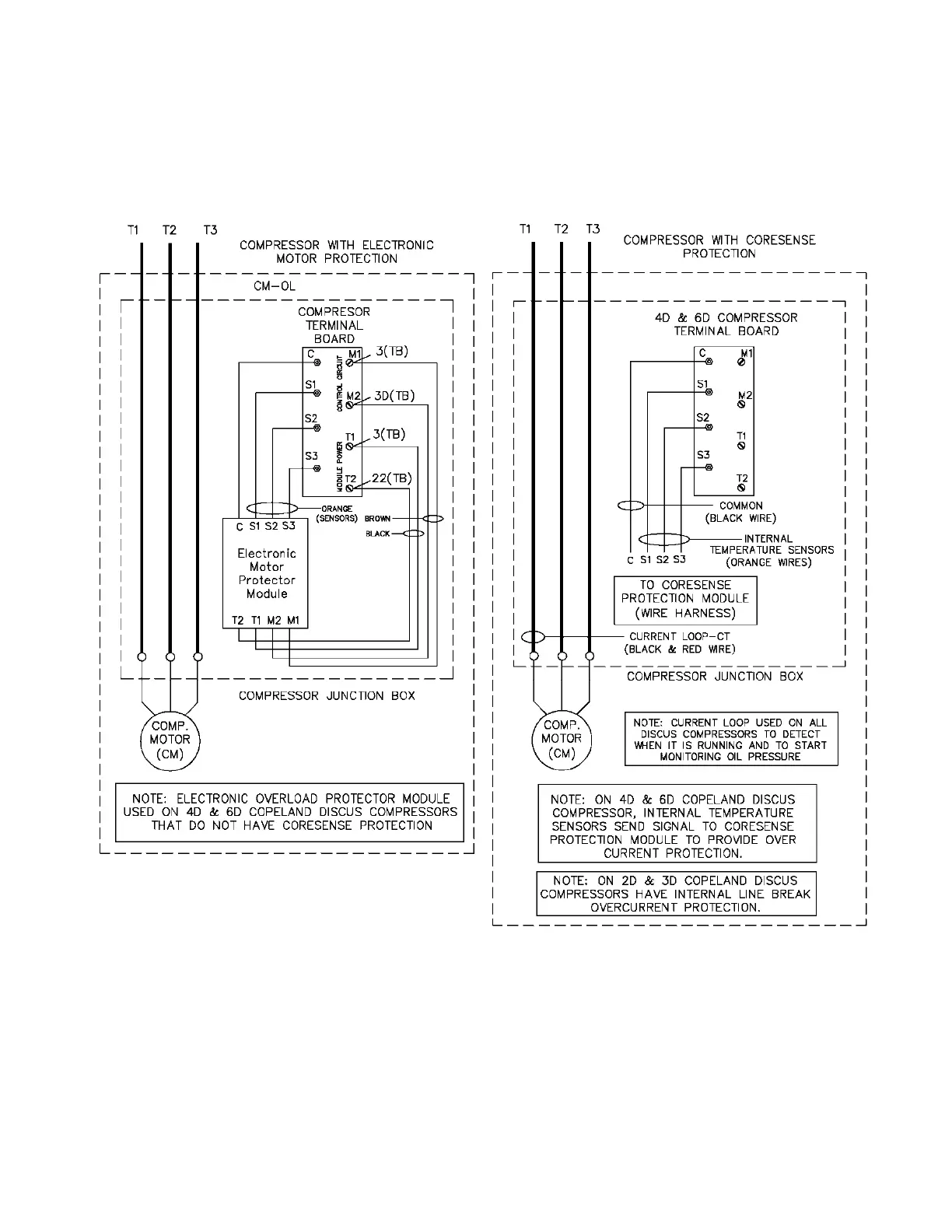

Compressor Schematic Detail All Voltages, 50-60 Hz.
