10TA Service Manual
SERVICE OPERATIONS
4/28/14
9-17
Circulating Water Pump Motor (Part No. 12A4020G01- 60hz, 12A4020G08 – 50hz)
The motor bearings are prelubricated and sealed. They require no further lubrication. The pump
should operate with the water level above the impeller housing. The pump is equipped with a
mechanical seal that is self-adjusting and requires no lubrication. However, the pump should not be
operated unless circulating water. The pump manufacturer recommends that a mechanical seal be kept
as a spare. When ordering a seal, specify pump size, type, serial number, and manufacturer’s name as
indicated on the nameplate.

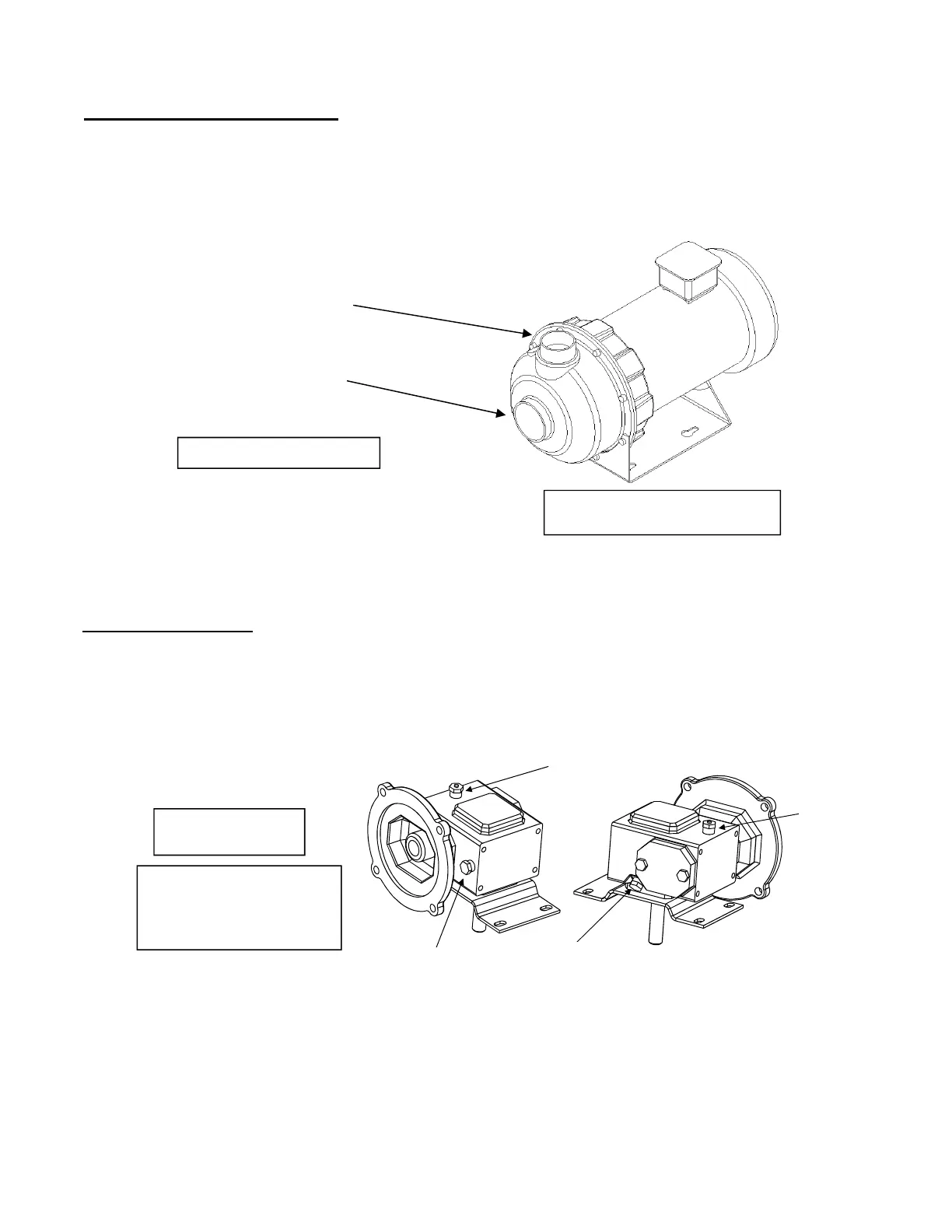

FIGURE 9-12
Circulating Water Pump
Cutter Gear Reducer (Part No. 12A4030R12) The oil level for the gear reducer should be checked
if there is evidence of a leak. It should be level with the plugged opening in the side of the gear
housing. Use Mobile 600W cylinder oil or equal. Change oil once a year. The motor bearings are
prelubricated and require no further lubrication. For additional information, refer to manufacturer’s
instructions.
Note: Ventless gear reducer used after August 2010
FIGURE 9-13
Gear Reducer
Pump Discharge (1 1/2” FPT)
Pump Part #: 12A4020G01 (60hz)
12A4020G08 (50hz)
Seal Kit Part #: 12A4080S12
Gear Reducer (10:1)
Part #: 12A4030R12
Replacement food grade oil:
Part #: 19T3020C01
Texaco Cygnus 220
Oil Capacity: 8 ounces
Vent Plug
Drain Plug
Oil Level Plug
Vent Plug
