10TA Service Manual
INSTALLING YOUR TUBE-ICE
®
MACHINE
4/14/14
3-11

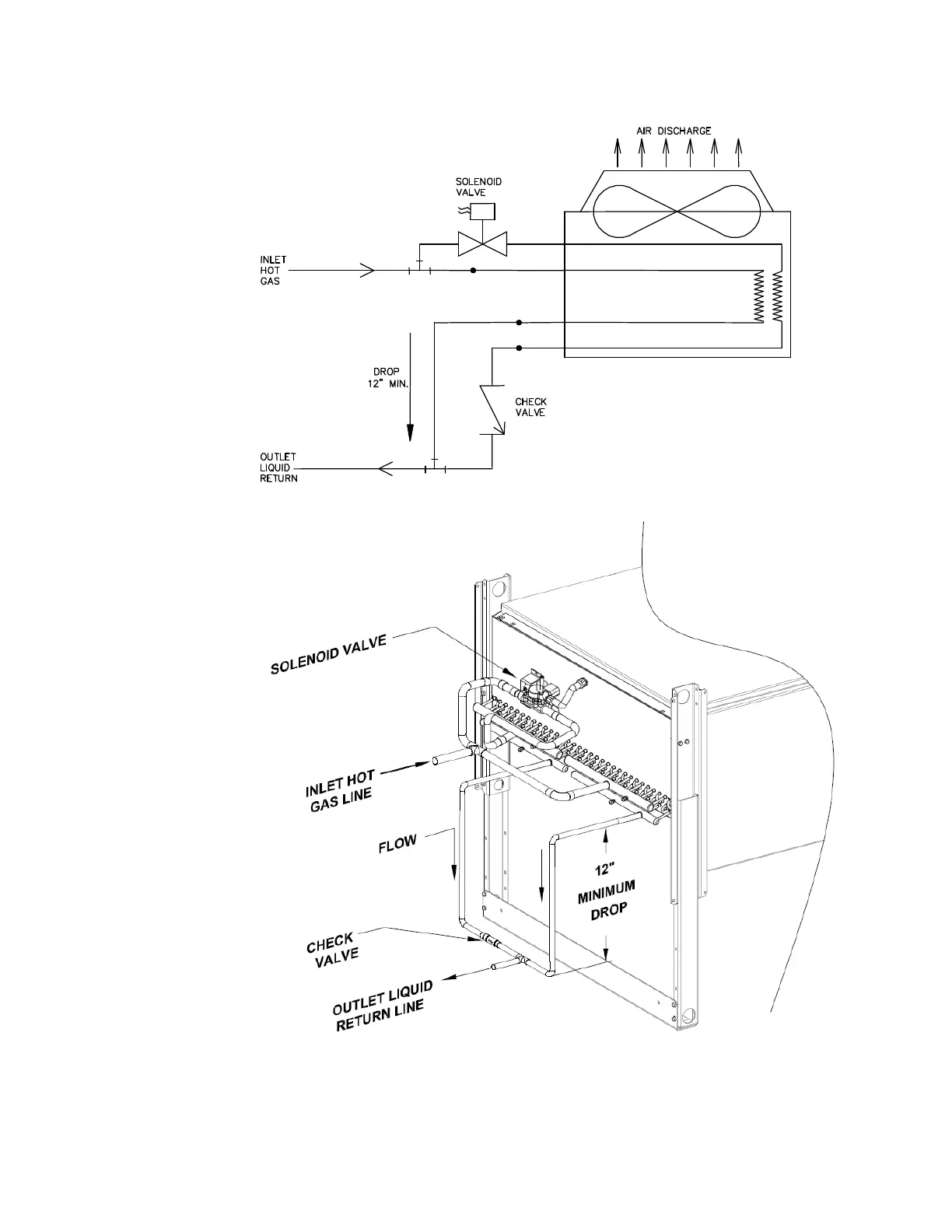

Note: Condenser return lines supplied by customer. (check valve supplied by Vogt)
FIGURE 3-5
Condenser Field Piping (Cold Weather Valve Kit)
