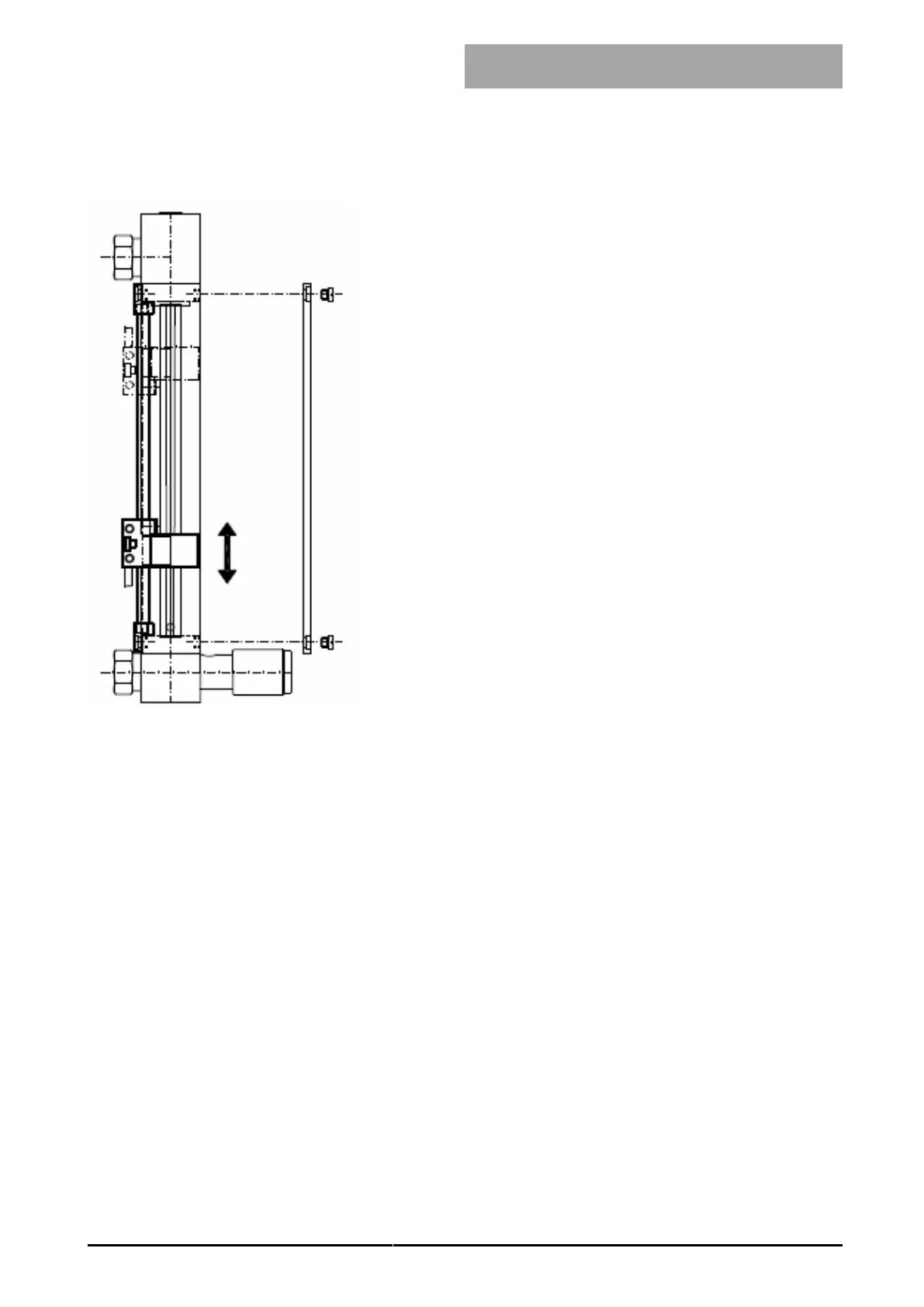

Setting the limit indicator
 Remove the front glass (1)
 Unscrew both clamping screws (2)
 Position the limit indicator
 Tighten the clamping screws
 Fit the front glass
For retrofit installation of a limit indicator the measuring glass
must be removed.
(See section Disassembly and Maintenance)
