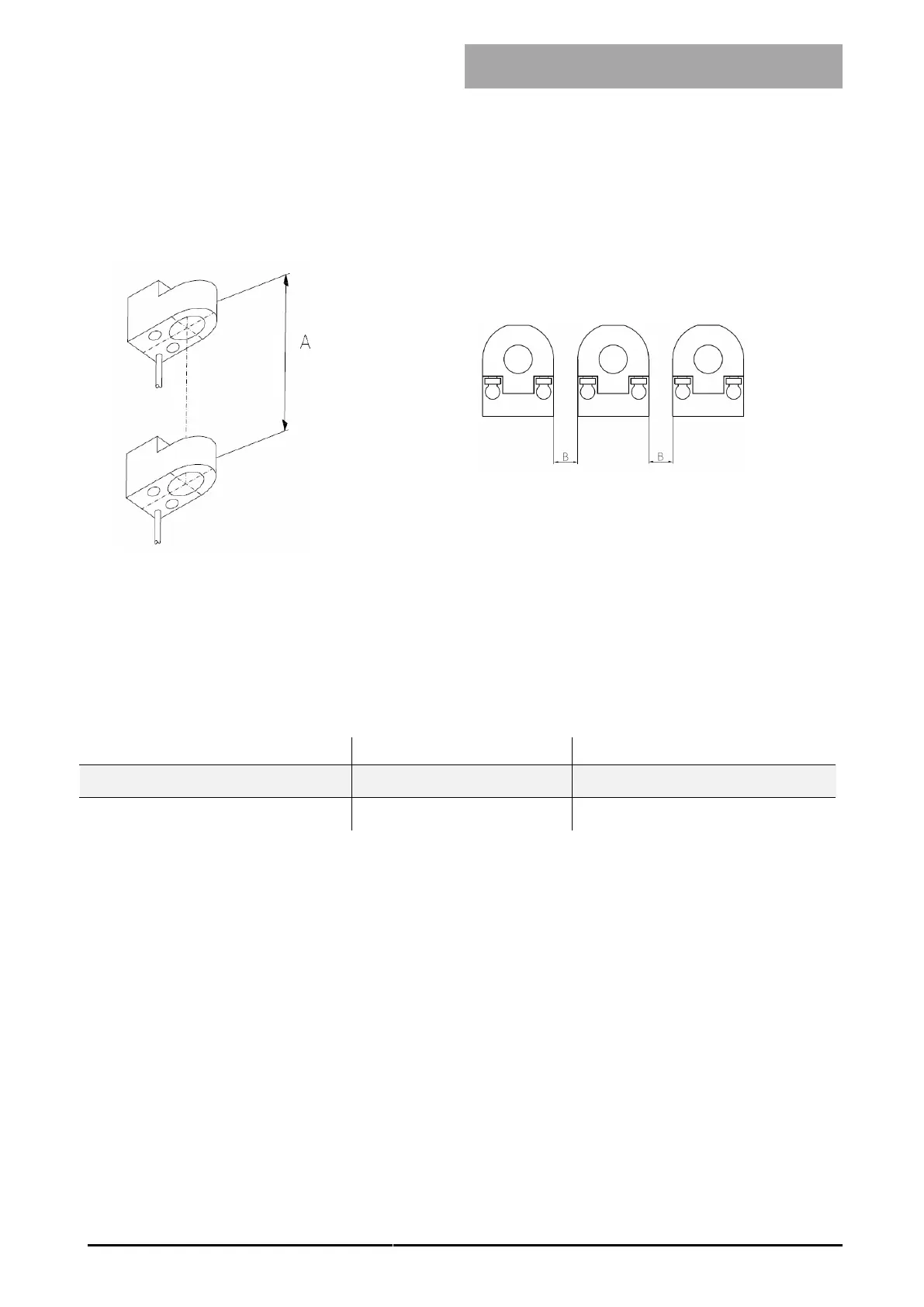

Minimum spacing for limit indicators
To ensure that the limit indicators do not interfere with one another a minimum space must be
complied with.
Installed vertically in a measuring instrument: Measurement instruments adjacent to one another:
A = Minimum 16 mm B = Minimum 6mm
Areas of application
Limit indicators only work with steel variable area flowmeters.
Limit indicators can be used with the following measuring glasses:
(mm scale with flow rate table)
Limit indicator Type
RC-10…
RC-15…
V-100 80
80.05 to 80.12
80.13 to 80.17
V-100 140
140.07 to 140.12
140.13 to 140.19
1
1
Measuring glasses 140.17 and 140.18 not possible
For standard air and water scale see section Variable area flowmeters measuring ranges
