Page 11UG10519-2.0 - Air Motion User Guide V2.0

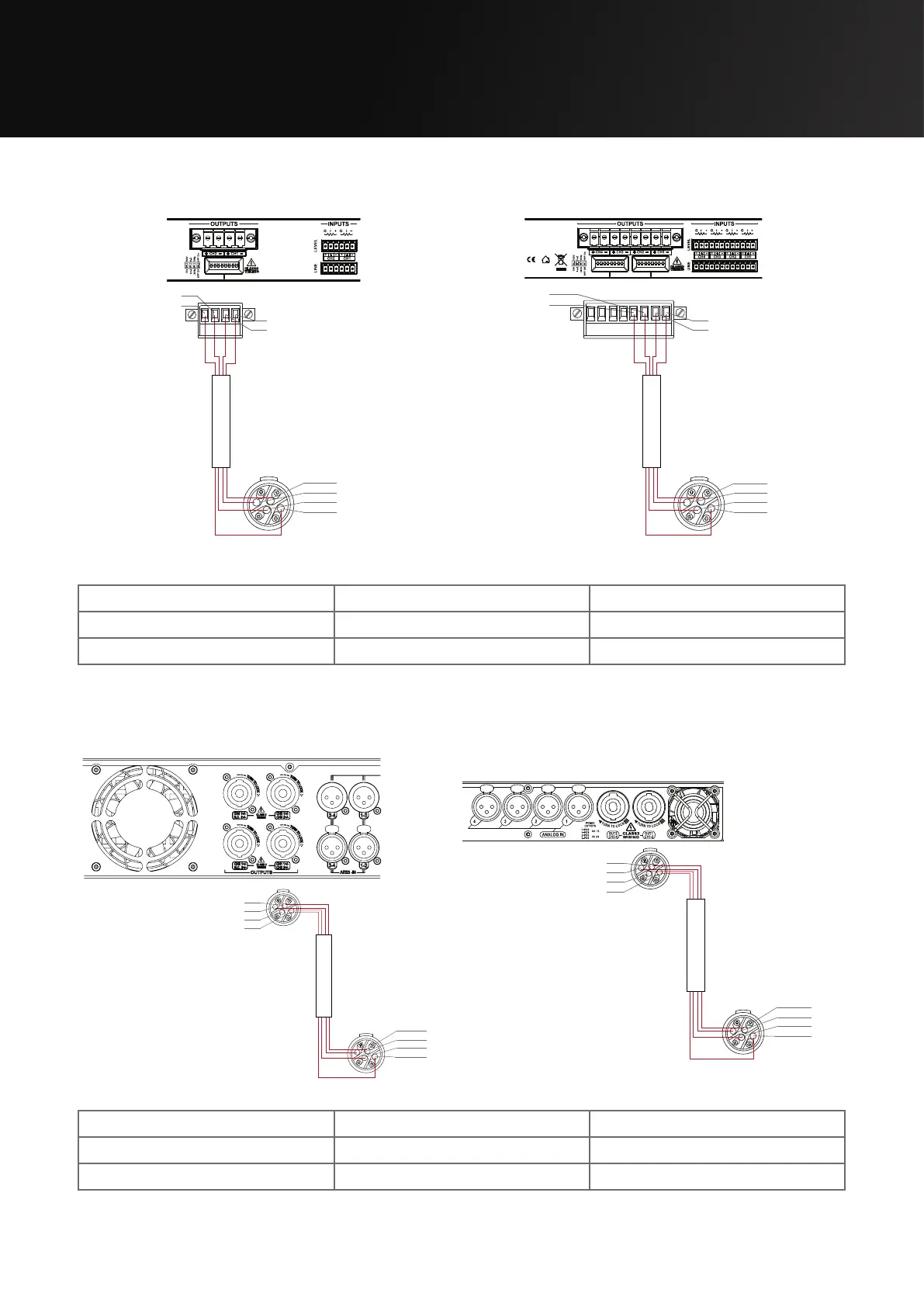

4 Cable and Wiring
4.4 Bias D1/Q1/Q2 phoenix wiring
Figure 4.2: Bias D1
Figure 4.3: Bias Q1/Q2
Bias D1/Q1/Q2 Output 1 Output 2
Output LF (12”) MHF (8”+1.5”)
Max parallel units 4 (2 Ω load to amplifier)* 4 (2 Ω load to amplifier)*
*Recommended max parallel units 2 (4 Ω load to amplifier) due to the power rating of the amplifier.
LF 1+
LF 1-
MHF 2+
MHF 2-
LF 1+
LF 1-
MHF 2+
MHF 2-
Figure 4.5: Bias Q5
Bias Q3/Q5 Output 1 Output 2
Output LF (12”) MHF (8”+1.5”)
Max quantity per channel 2 (4 Ω load to amplifier) 2 (4 Ω load to amplifier)
4.5 Bias Q3/Q5 speakON
TM
wiring
MHF 1-
MHF 1+
LF 1+
LF 1-
MHF 2+
MHF 2-
LF 1-
LF 1+
MHF 1-
MHF 1+
LF 1+
LF 1-
MHF 2+
MHF 2-
LF 1-
LF 1+
LF 1+
LF 1-
MHF 2+
MHF 2-
LF 1+
LF 1-
MHF 2+
MHF 2-
Figure 4.4: Bias Q3
