Void Air Motion - Ceiling Pole Mounting

Page 23UG10519-2.0 - Air Motion User Guide V2.0

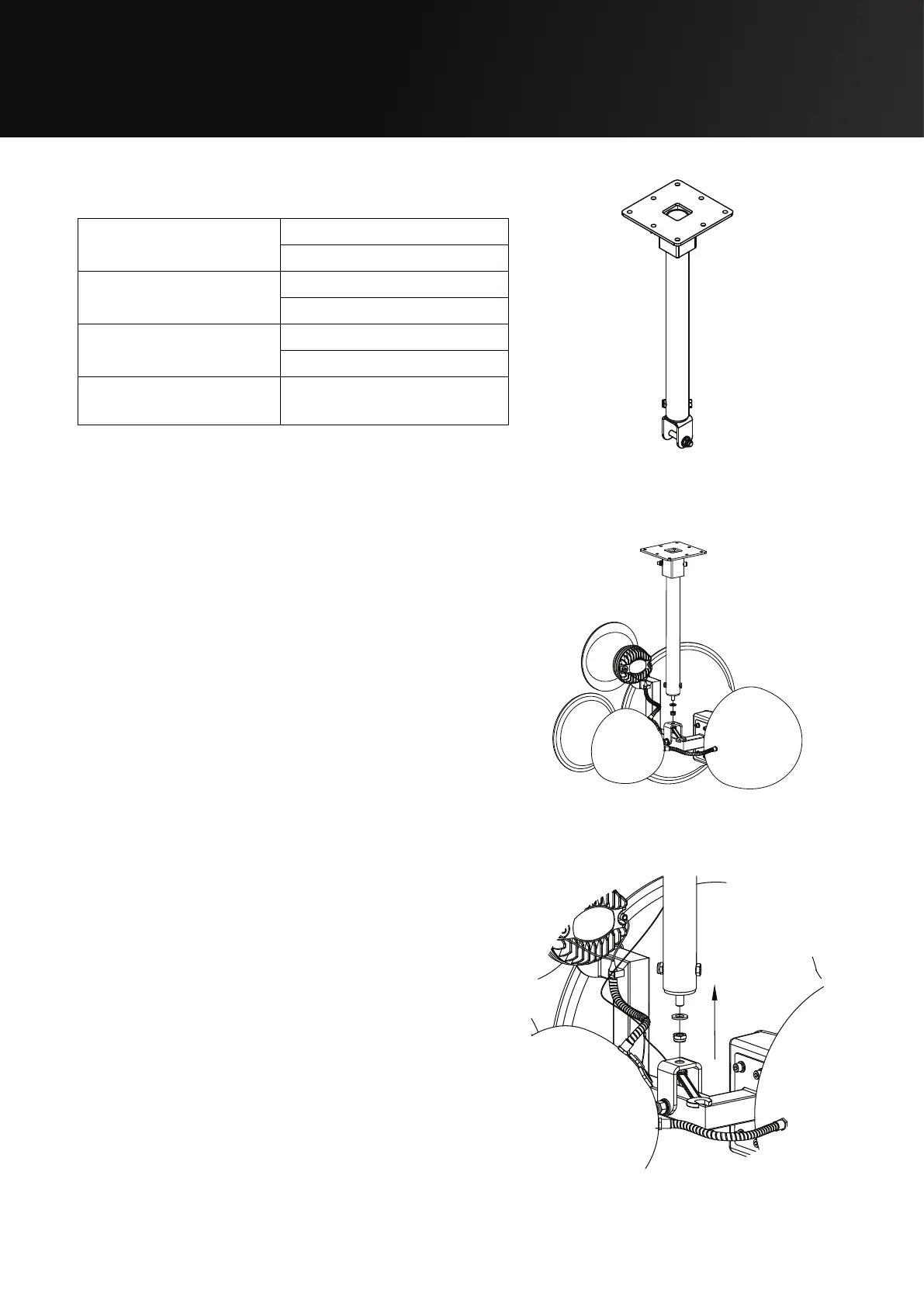

5.7 Ceiling Pole Mounting
Figure 5.31: TU - Ceiling Bracket
Parts required:
TU - Ceiling Bracket
(1000mm)
White - IT3486
Black - IT3485
TU - Ceiling Bracket
(1500mm)
White - IT3149
Black - IT2462
TU - Ceiling Bracket
(500mm)
White - IT2817
Black - IT2816
TU - Ceiling Bracket
(3000mm)
Black - IT2027
Figure 5.32: Air Motion positioning
Figure 5.33: Attaching the Air Motion
Step 1:
Lift the Air Motion into position making sure to
hold it by the safe lifting positions detailed in
section 2.
Step 2:
Attach the Air Motion to the bracket with the M12
Aerotight nut using a 19 mm ratchet spanner.
