Step 3:
Lift the Air Motion into position making sure
to hold it by the safe lifting positions detailed
in section 2.
Step 4:
Attach the Air Motion the bracket with the
M12 Aerotight nut using a 19 mm ratchet
spanner.
Step 5:
Attach the secondary bond (safety wire) to
the central box section.
The safety wire must be rated to
35.4 kg (78 lbs) with a safety factor
conforming to local regulations.

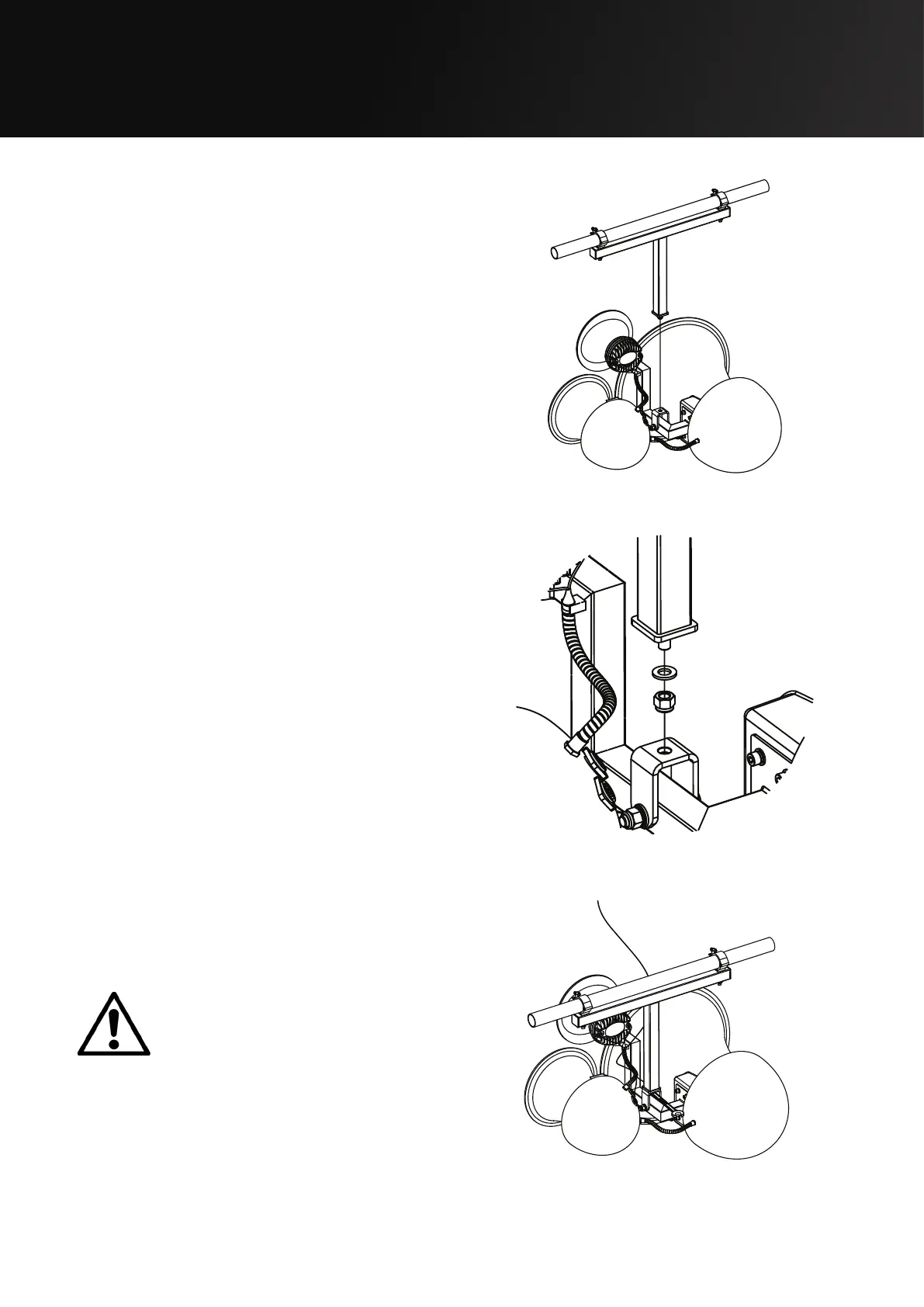

Figure 5.28: Air Motion truss mount
Figure 5.29: Air Motion truss mount detail
Figure 5.30: Safety wire attachment
5.6 Truss Mounting
