5.8 Pole Mounting

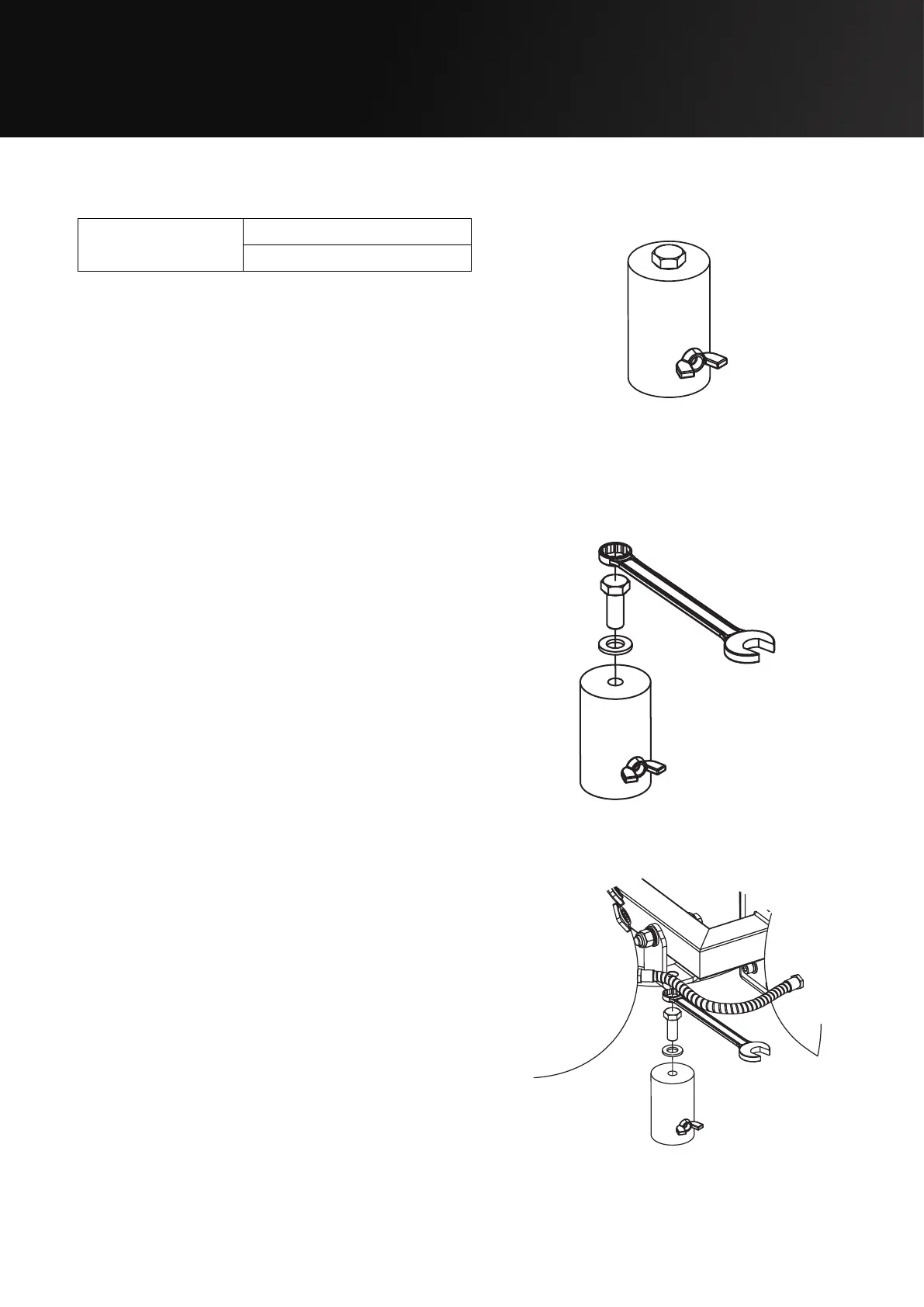

Figure 5.36: TU - Pole Bracket
Parts required:
TU - Pole Bracket
White - IT3514
Black - IT3513
Figure 5.37: Pole mount bracket removal
Figure 5.38: Mounting to the U bracket
Step 1:
Remove the M12 bolt from the pole mount
bracket.
Step 2:
Mount the pole mount bracket to the U bracket.
