Page 18UG10519-2.0 - Air Motion User Guide V2.0
5.4 Wall Mounting
Step 4:
With the lifting equipment still in place, attach
the secondary bond safety wire (not sup-
plied) to the central box section. The safety
wire should be attached to a secondary fixing
point, close to where the bracket is fixed to
the wall.
Figure 5.18: Safety wire attachment
Step 3:
Attach the U bracket to the extension piece
with the M12 Aerotight nut using a 19 mm
ratchet spanner.

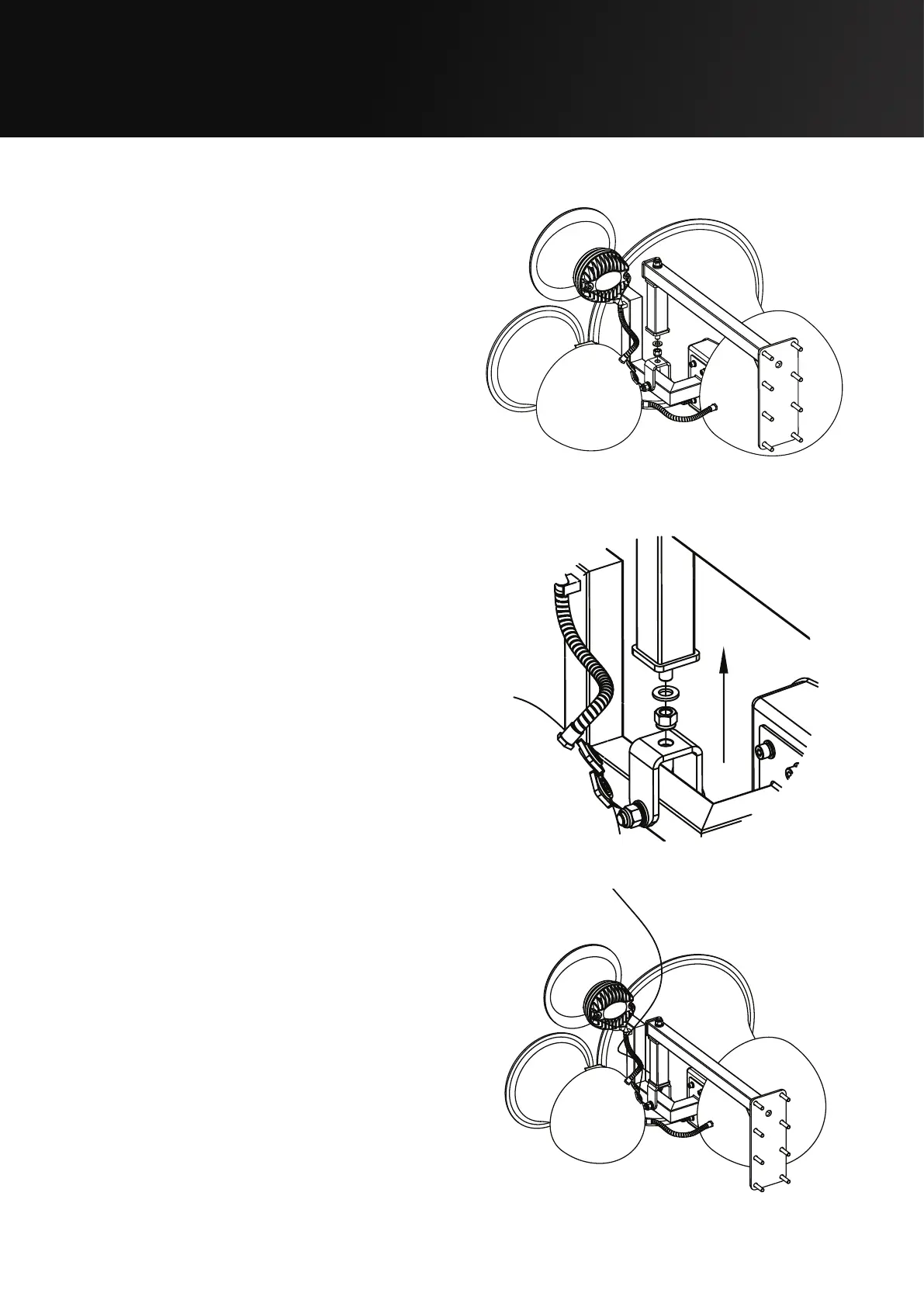

Figure 5.16: Air Motion wall mount
Figure 5.17: Air Motion wall mount detail
