Digital Storage Oscilloscope 10
2.4 Multi-functional Knobs and Buttons
2.5 Oscilloscope Setup
While operating the oscilloscope, you may often use three features: Autoset, saving a
setup and recalling a setup. Hereinafter they are introduced one by one.
Autoset: This function can be used to adjust the horizontal and vertical scales of the

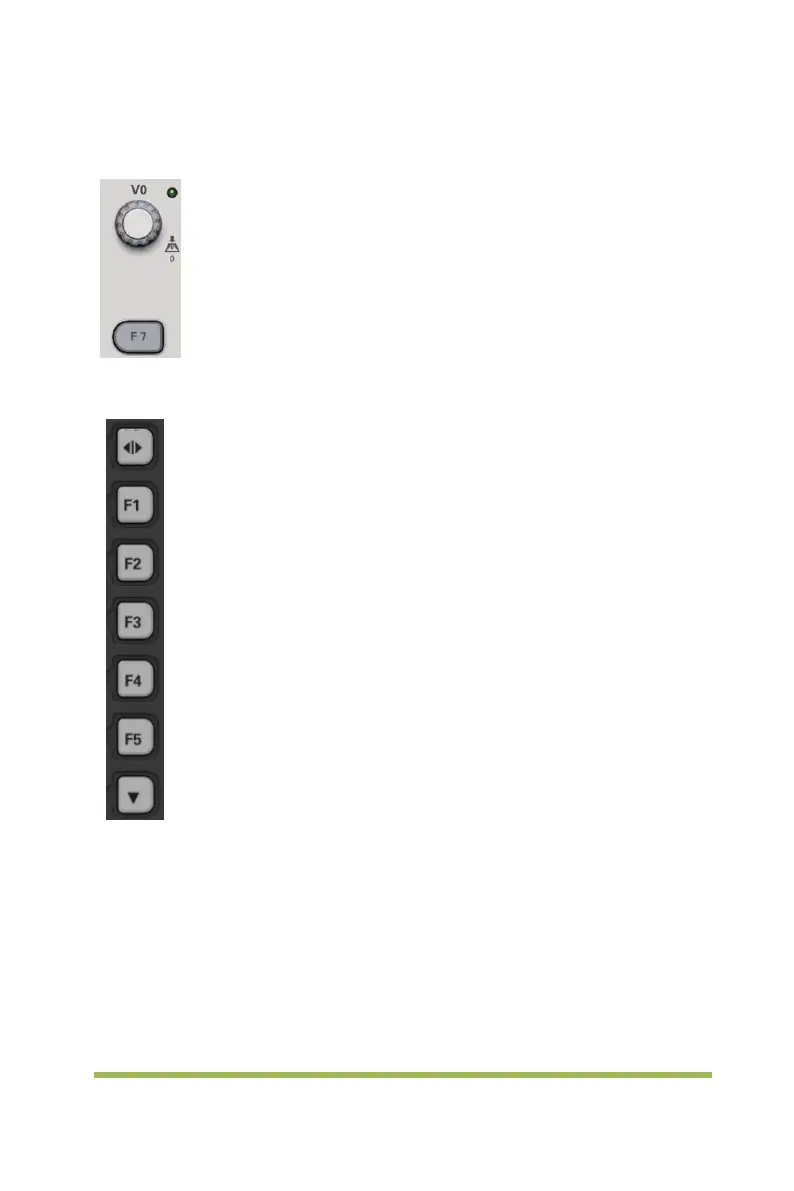

V0: Multi-functional knob. Under different menu options, it supports
selecting menu options (MEASURE), moving cursors and levels (Slope
Trigger).
Press this knob to reset data (trigger holdoff, overtime of the overtime
trigger
and slope trigger), select menu options and so on. Easy to operate.
F7: Push this button in single-window mode to switch between dotted line
display
and cross display. Push it in dual-window mode to perform autocruise.
F0: Hide/Show button. Push it to hide the menu options on the right side
of the screen and give a full screen display of waveforms. Push it again to
show the menu options.
F1-F5: These five buttons are all multi-functional. They are in charge of
selecting corresponding menu options on the screen in different menu
modes. For example, in the UTILITY menu, F1-F5 respectively correspond to
‘System Info’ – ‘Advance’.
F6: This functional button is mainly used to turn pages and confirm a
selection, such as ‘next page’, ‘previous page’, and ‘press F6 to
confirm’ appearing when you push Self Calibration option.
To Next Page
