2. Force Trigger
Used to complete an acquisition regardless of an adequate trigger signal. This button
becomes useless if the acquisition is already stopped.
3. TRIG Type
DSO4000B(C) provides multiple advanced trigger functions, including various serial
bus triggers.
 Edge trigger
 Pulse trigger
 Video trigger
 Slope trigger
 DropOut trigger
 Window trigger
 Pattern trigger
 Interval trigger
 Runt trigger
 UART trigger
 LIN trigger
 CAN trigger
 SPI trigger
 IIC trigger
2.8.1.1 Edge Trigger

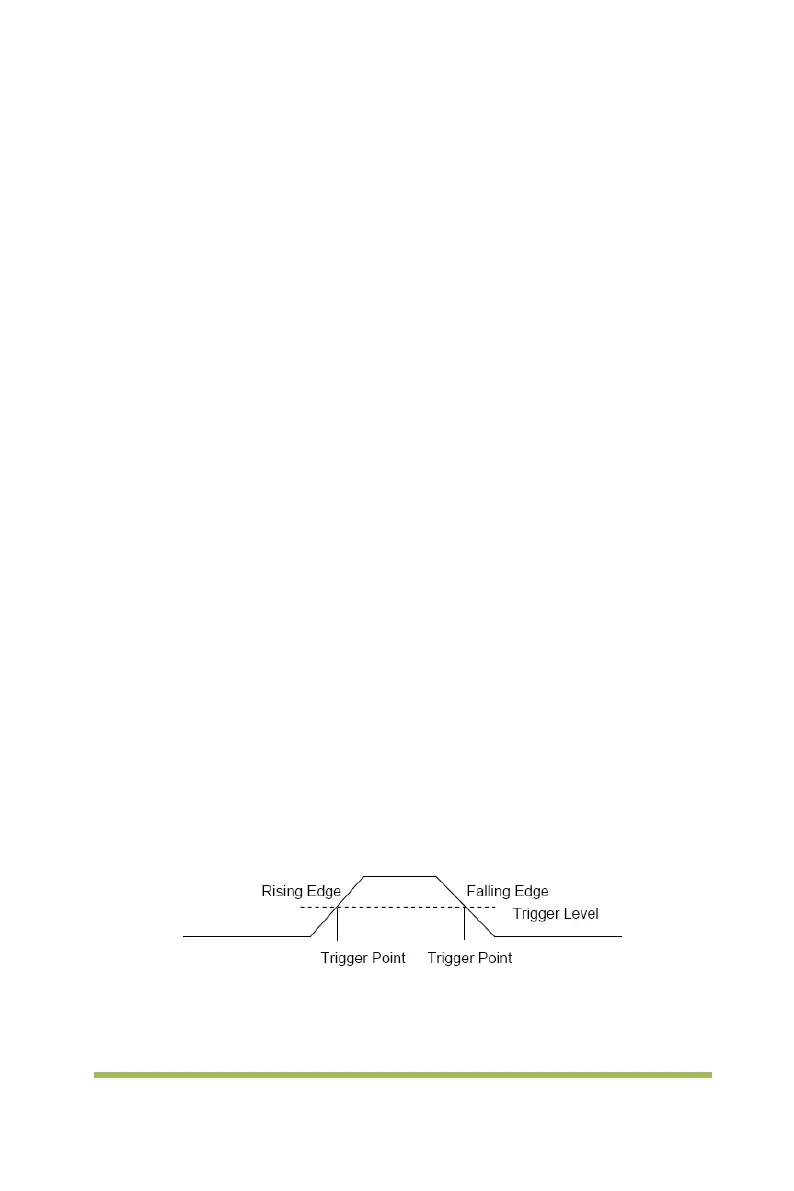

Edge trigger distinguishes the trigger points by seeking the specified edge (rising,
falling, rising & falling) and trigger level.
1. Press the [TRIG MENU] button on the front panel to enter the Trigger system
function menu.
