Fuses

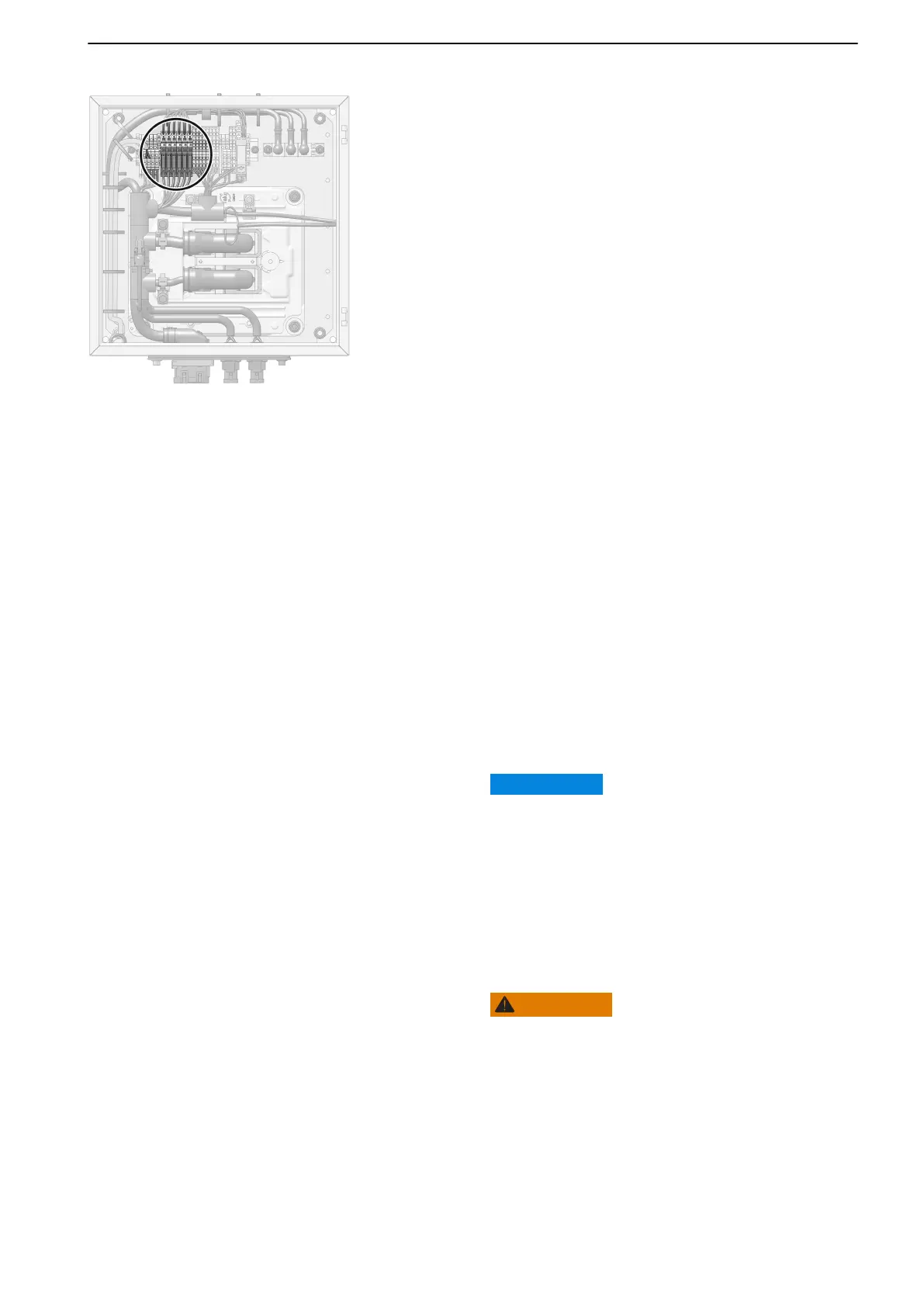

In SDM there are six fuses mounted marked:
F1 = Primary battery
F2 = Secondary battery
F3 = EVC/MCC
F4 = EMS
F5 = EATS
F6 = SDM unit/Terminal 1,2
Powertrim
Trim Ranges
To be able to use the information on the trim
instrument, it is important to be aware of the three trim
ranges and the way they are used.
Trim range
The trim range are used to provide the best comfort
when driving – from starting to top speed.
Beach range
The beach range is used for driving at low speed in
shallow water or where the depth is unknown.
The highest permitted engine speed when in the beach
range is 1500 rpm.
IMPORTANT:
Make sure the drive's coolant inlet is never trimmed out
of the water when operating in the beach range.
Lift range
The lift range is never used when the boat is under way.
It lifts the drive to maximum height and is used for e.g.
transporting the boat on a trailer. Power Trim has an
automatic stop that turns off the power when the end
position is reached. The catch is released
automatically when the stern drive is trimmed down.
WARNING!
Never run the engine with the drive in the “lift” range.
P0027954
Instruments and Controls
47713726 12-2021 © AB VOLVO PENTA 55
