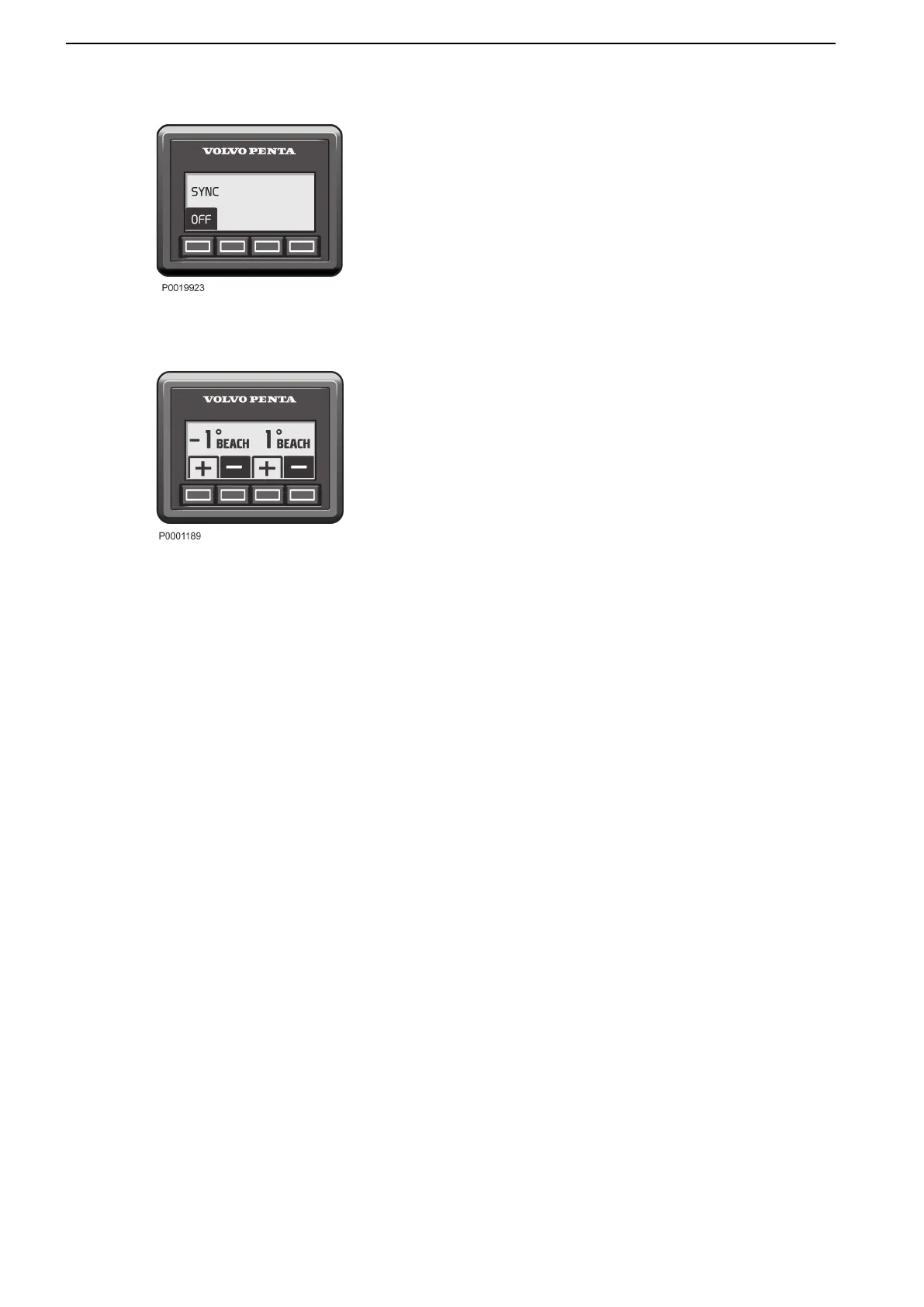

Synchronization Panel
The engine synchronization function can be switched
off at the synchronization panel to allow engine speeds
to be controlled independently. In triple installations,
the midships engine receives an average of the two
outboard engines’ speeds.
Switch on synchronization by pressing the button to the
far left.
Powertrim panel
The Power Trim panel allows you to adjust the angle of
the drive with respect to the transom.
For twin engine installations, the control panel can be
used to make individual or simultaneous adjustments
to the drives.
By trimming out the drive away from the transom, the
bow will be ”raised” in relation to the horizontal axis and
trimming in the drive will ”lower” the bow of the boat
+ Will trim the drive away from the transom, the bow will
be ”raised” in relation to the horizontal axis.
– Will trim the drive away towards the transom, ”lower”
the bow of the boat.
For further information on Power Trim refer to Trim
Ranges, page 55.
Instruments and Controls
34 47713726 12-2021 © AB VOLVO PENTA
