12 Plates and decals
Information and warning plates

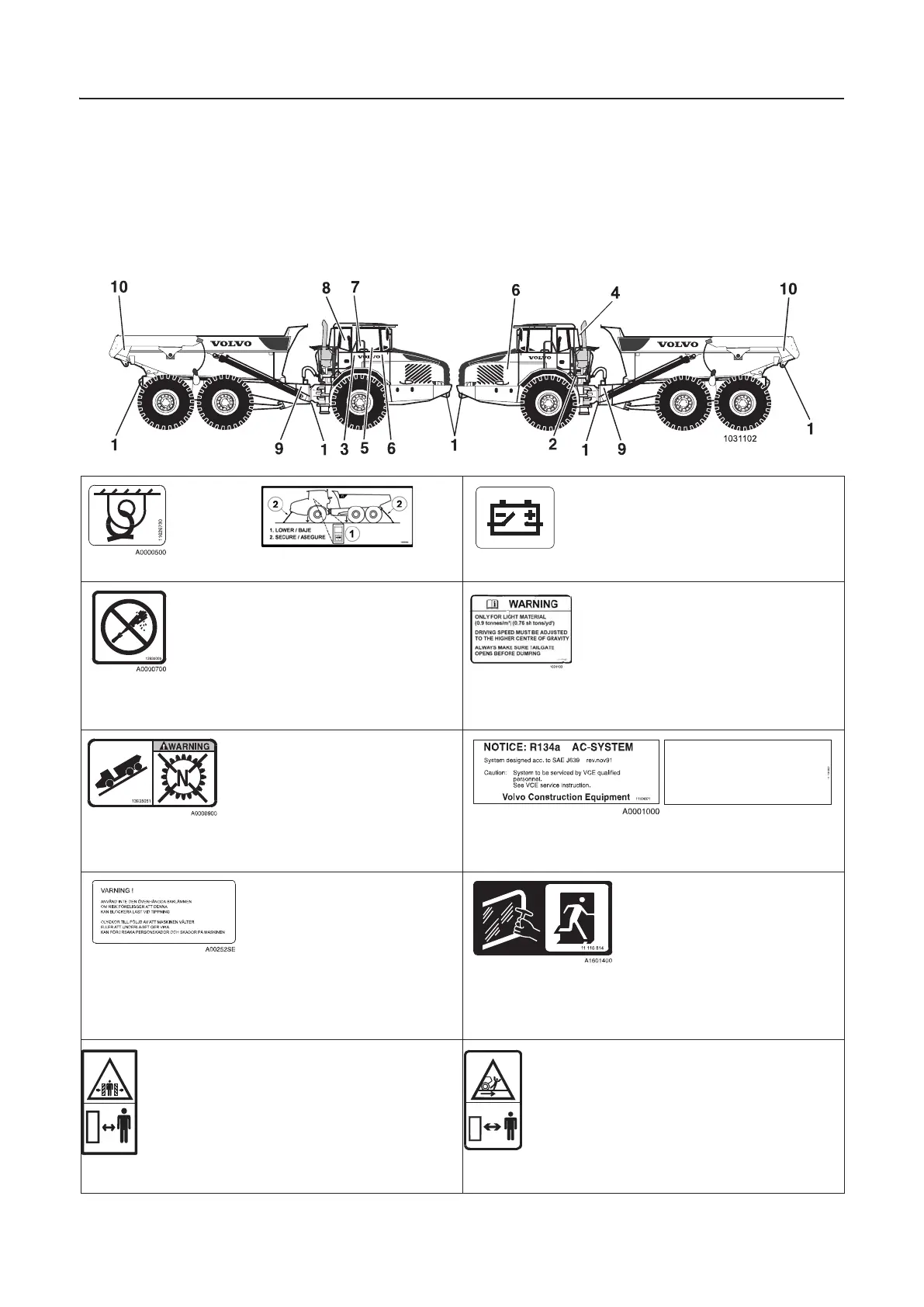

In the following is shown which warning texts and information texts that can be found on the machine. The
machine operator should know and pay attention to warnings and information which are stated on decals and
plates. Decals/plates which have disappeared, been damaged, painted over or are no longer legible for other
reasons, should be replaced immediately.
The part number (order number) of the respective plates/decals can be found in the Parts Catalogue.
NOTE! The text “WARNING” appears on the warning decals on North America.
1 Attaching point for lashing. (+ decal for FS-machine)
2 Battery disconnect switch
3 Avoid directing water jet against air intakes.
4 WARNING! The machine must not carry a heavier load
than what is stated on the decal (optional equipment on
machines with body height extension for light materials).
5 WARNING! Do not operate downhill with the gear
selector in neutral. Only change gear with the
accelerator released.
6 Air conditioning filled with R134a. Opening pressure,
safety valve (optional equipment).
7 WARNING! Do not use the overhung tail gate (optional
equipment), if there is a risk that it may block the load
when tipping. Accidents caused by the machine
overturning or the ground giving way can cause injuries
and damage to the machine.
8 Emergency exit
9 WARNING! Risk of crushing – articulated frame steering
10 WARNING! Do not remain within the working area of a
reversing machine.
1034999
11026729
1014833
Volvo Construction Equipment
A1601500
LUFTKOND. FYLLD MED 2.3 -0,1 KG R134a
ÖPPNINGSTRYCK SÄKERHETSVENTIL 38±3 BAR
AIR COND. CHARGED WITH 2.3 -0,1 KG R134a
HIGH PRESSURE RELIEF VALVE SETTING 38±3 BAR
0
0
1044759
