Safety when servicing
Service position 89
Safety when servicing
Service position
IMPORTANT! If the machine is equipped with FS-system,
make sure that the system is in the lowered position before
beginning any service work.

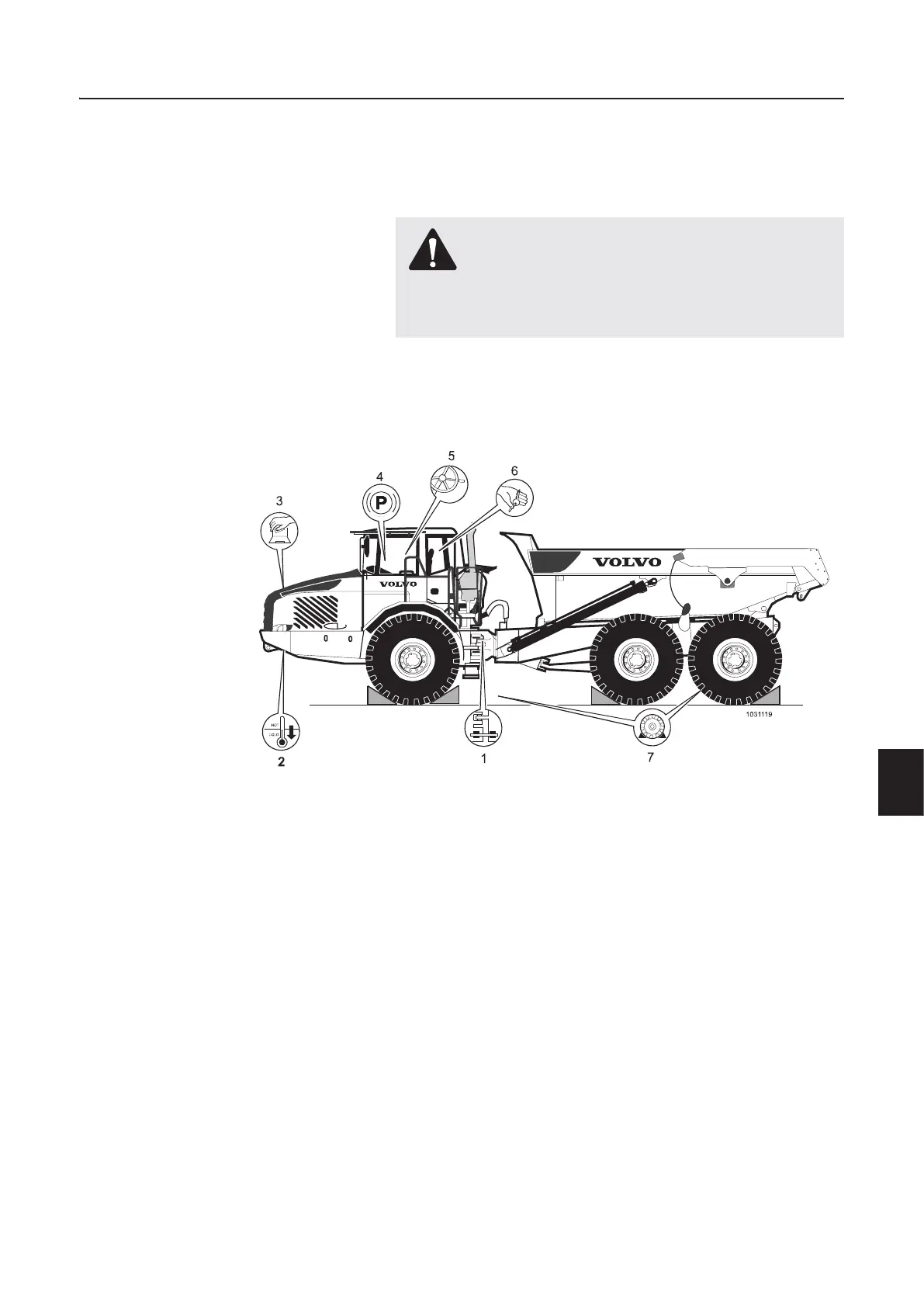

Before you begin any service work, the machine should be
placed on level ground and prepared for service as shown below:
1 Lock the steering joint with the steering joint lock. Lower the
dump body onto the frame.
For service with the dump body up, secure with the dump body
lock or the dump body support, see page 94. Lock the dump
lever with the lock-out control, see page 48.
2 Let the machine cool.
3 Carefully release the pressure in pressurised lines and
pressure vessels. When work is required on the brake system
(or the FS-system, if the machine is equipped with such a
system) no plugs or pressure lines may be loosened before the
pressure in the system has been released, see page 138.
4 Apply the parking brake.
5 A yellow-black warning label or a red flag should be attached to
the steering wheel while service is being done.
6 Stop the engine and take out the ignition key (does not apply
when checking the oil in the transmission).
7 Block the wheels in a suitable way (with, for example, wedges).
NOTE! For work on and with the FS-system, contact a
workshop authorised by Volvo CE.
WARNING!
If work has to be carried out on the machine before it has
cooled down, care must be observed with regard to hot
liquids and hot machine parts – risk of burns.
