50 Operator comfort
Operator comfort

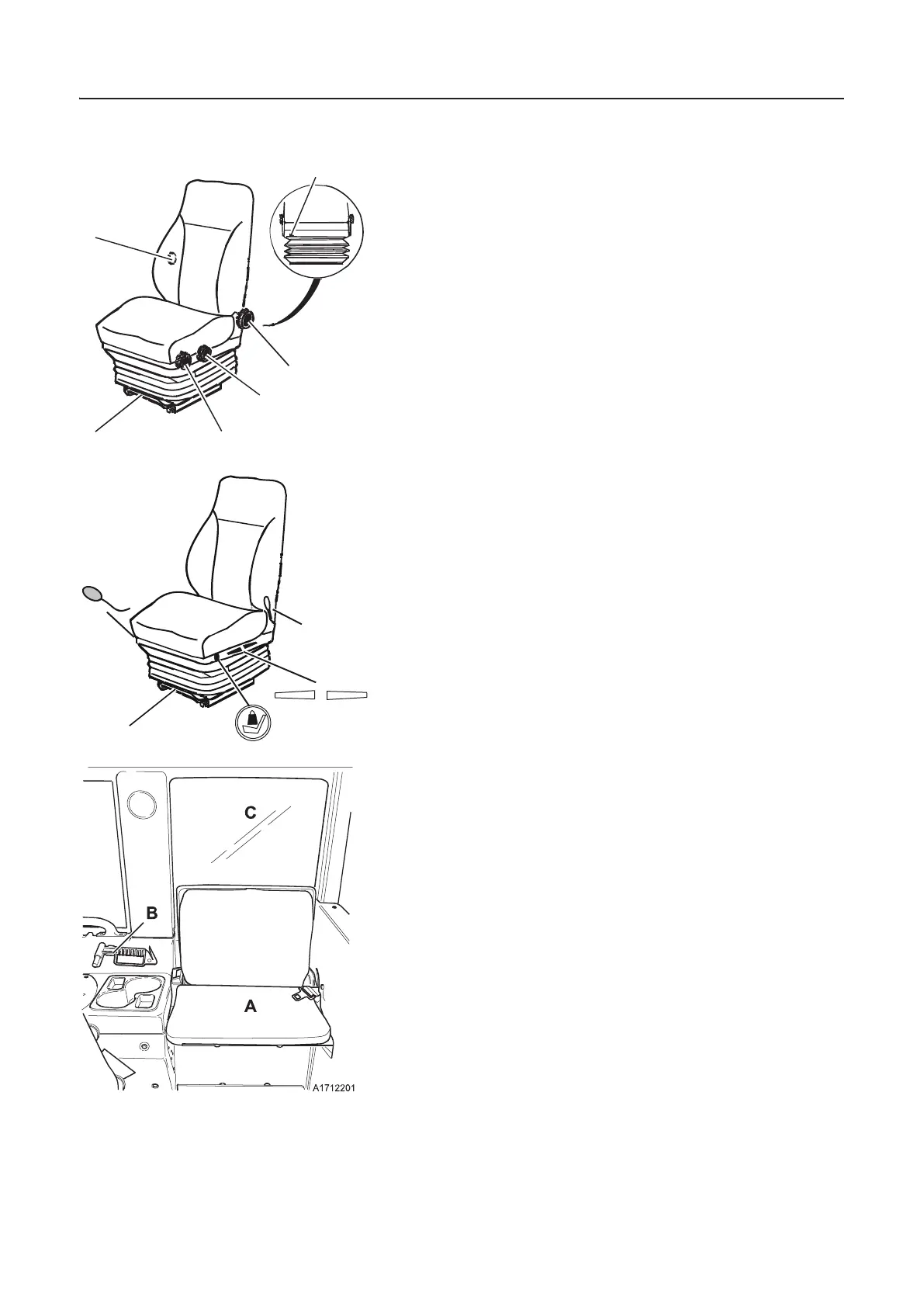

Operator seat
It is important that the operator seat is adjusted in a correct way in
order to provide the best possible comfort.
Mechanical operator seat, adjusting
Seat with air suspension, adjusting
Instructor seat
The cab is equipped with a collapsible instructor seat (A). This is
intended for an instructor to be able to travel temporarily on the
machine in order to instruct or train operators in how to operate
and handle the machine in the best possible way.
The instructor must use seat belt.
When an instructor is travelling on the machine, it must be driven
with the greatest care (low travelling speed) and on as level ground
as possible. The work site should then in advance be levelled and
bumps and holes be eliminated so as to avoid unnecessary
shaking and sudden movements.
IMPORTANT! The instructor seat is not intended for
passengers.
To fold down the backrest:
1 First lift up the seat cushion.
2 Fold down the backrest and then fold down the seat cushion.
IMPORTANT! When the instructor seat is not used, it should
be collapsed and folded down.
A Backrest inclination
B Seat inclination
C Seat height
D Longitudinal adjustment
E Lumbar support
F Height limitation with locking function
– full height adjustment = control to the right
– limited height adjustment = control at centre
– transporting position (never use when operating
(travelling)) = lever to the left
Electrically heated seat (optional equipment)
A Backrest inclination
B Seat height at front
C Seat height at rear
D Adjustment according to weight
E Longitudinal adjustment
F Lumbar support
Electrically heated seat (optional equipment)
A1600700
F
A
B
CD
E
A
B
C
DE
F
1009292
A Instructor seat
B Emergency hammer
C Emergency exit
