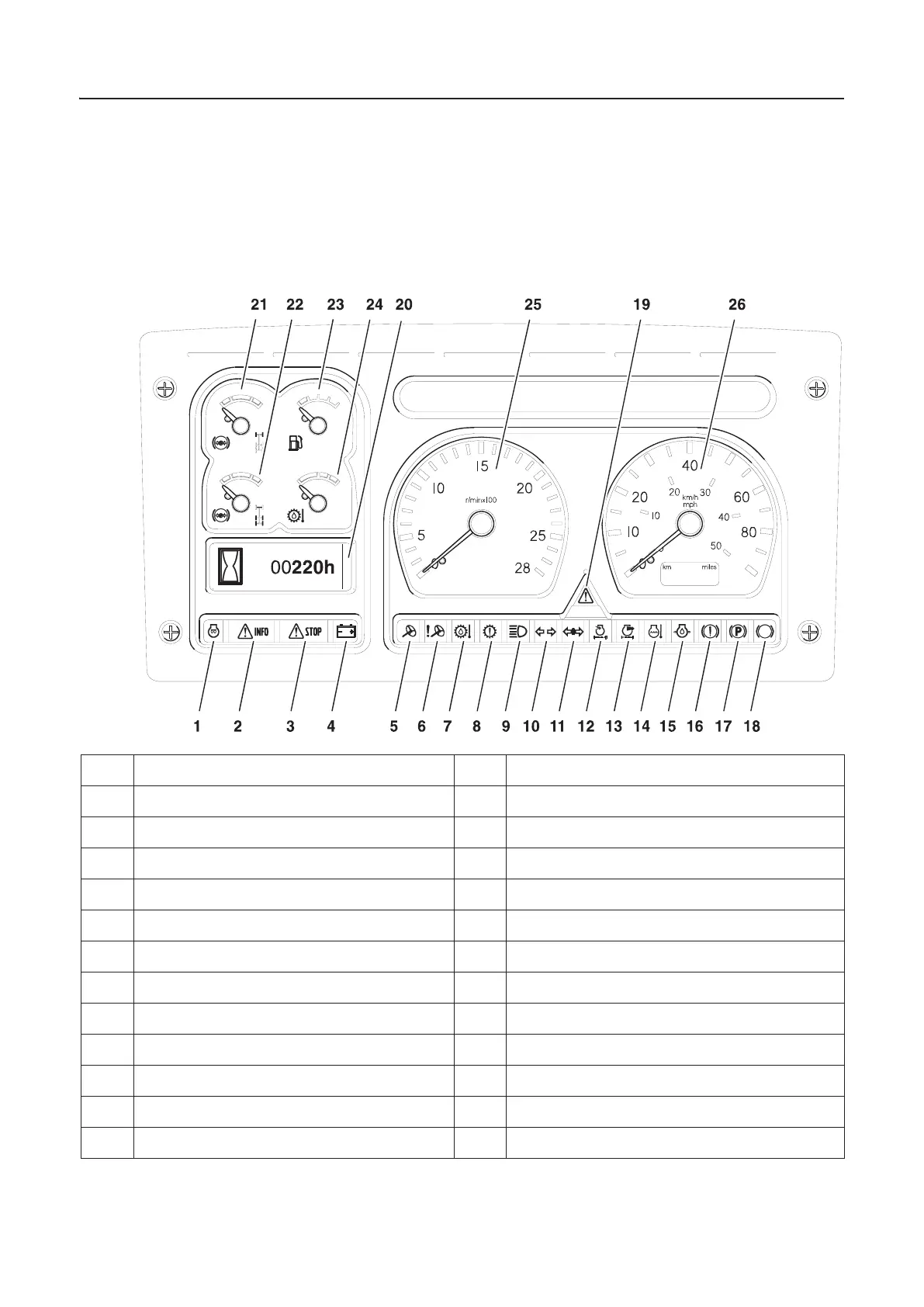

20 Centre instrument panel
Centre instrument panel
If, during the start-up sequence, any of these lamps do not light up
when the ignition key is turned to running position (1), the lamp is
faulty or a fault has occurred in the electrical system. This should
be dealt with before start.
All lamps should go out when the engine starts, apart from the
parking brake lamp, which does not go out until a pressure of
570 kPa (83 psi) has been reached.
1
Preheating connected
14
Coolant temperature high
2
Central warning, amber
15
Engine oil pressure low
3
Central warning, red
16
Brake system oil pressure low
4
Charging faulty
17
Parking brake applied
5
Secondary steering system out of order
18
Service brakes applied
6
Primary steering system out of order
19
Central warning, amber
7
Transmission oil temperature high
20
Display unit
8
Transmission sensor malfunctioning or faulty
21
Brake circuit oil pressure in tractor unit
9
High beams switched on
22
Brake circuit oil pressure in trailer unit
10
Direction indicators, tractor unit
23
Fuel gauge
11
Direction indicators, trailer unit
24
Transmission oil temperature
12
Engine air filter clogged
25
Tachometer
13
Is not used
26
Speedometer/odometer
A9000500
