Safety when servicing
92 Preparations before service
Preparations before service
Guard plates, lowering
For certain service work it is necessary to hinge down or remove
the guard plates.
Place the machine in service position, see page 89.
Front guard plate
1 Remove the bolts at the rear part of the plate (2 pcs.). The plate
is heavy and therefore secured with a chain (A) to prevent it
from falling down.
2 Remove the pin for the chain and carefully let down the plate.
Rear guard plates
Lower one plate at a time.
1 First unscrew the lower bolt (B).
2 Hold onto the edge at the same time as the two upper bolts (C)
are removed.
3 Remove pin (D) and let down the plate.
4 Proceed in the same way with the other guard plate.

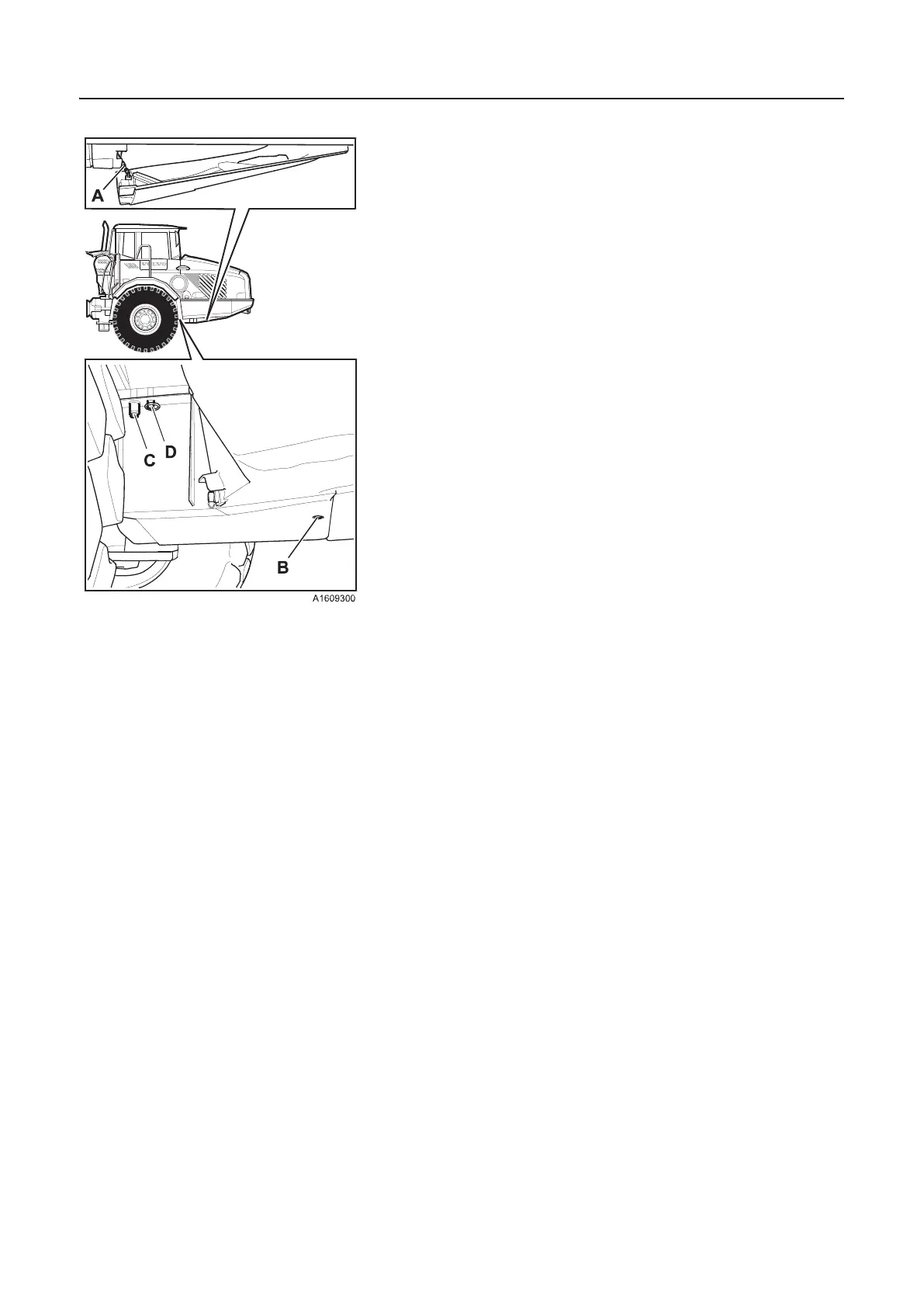

AChain
B Lower bolt
C Upper bolt
DPin
