Service and maintenance
Brake system 141
Brake cooling oil, checking level after
topping up or changing
Check the oil level every 250 hours.
The level should stand 3/4 up within the measuring range on sight
glass (A), which is located on the left side of the machine.
Brake cooling oil, changing
Change oil every 2000 hours.
1 Place the machine in service position, see page 89.
2 Connect the draining hose to the draining connection and drain
off the oil.
3 Remove the draining hose, when all the oil has run out.
4 Drain the brake cooling oil from the hubs.
5 Remove the cap from the brake cooling oil tank (positioned on
the left side of the machine). Remove the oil filter from the insert
and then clean the magnetic rings.
6 Install a new oil filter in the insert. Reinstall the insert in position
in the oil tank and install the cover.
7 Remove the filler plug from the cover and then fill with oil
through the hole until the max. level in sight glass (A) has been
reached.
8 Start the engine and leave it running a few minutes to fill the
system with oil.
9 Stop the engine, read off at the sight glass and fill with more oil
if it is required.
10 Install the plug.
Capacity when changing: approx. 210 litres (55.4 US gal)
For oil grade, see page 167.
Brake cooling oil, replacing oil filter
Replace the oil filter every 1000 hours.
1 Remove the cap from the brake cooling oil tank (positioned on
the left side of the machine). Remove the oil filter from the insert
and then clean the magnetic ring.
2 Install a new oil filter in the insert. Reinstall the insert in position
in the oil tank and install the cover.
Brake cooling oil, replacing breather filter
Replace the brake cooling oil tank breather filter (A) every
1000 hours. The filter is of the disposable type, i.e. it cannot
be cleaned, but must be replaced.
1 Remove the cover.
2 Replace the filter insert.
3 Reinstall the cover.
Take care of filters/oils/liquids in an environmentally safe way,
see page 91.

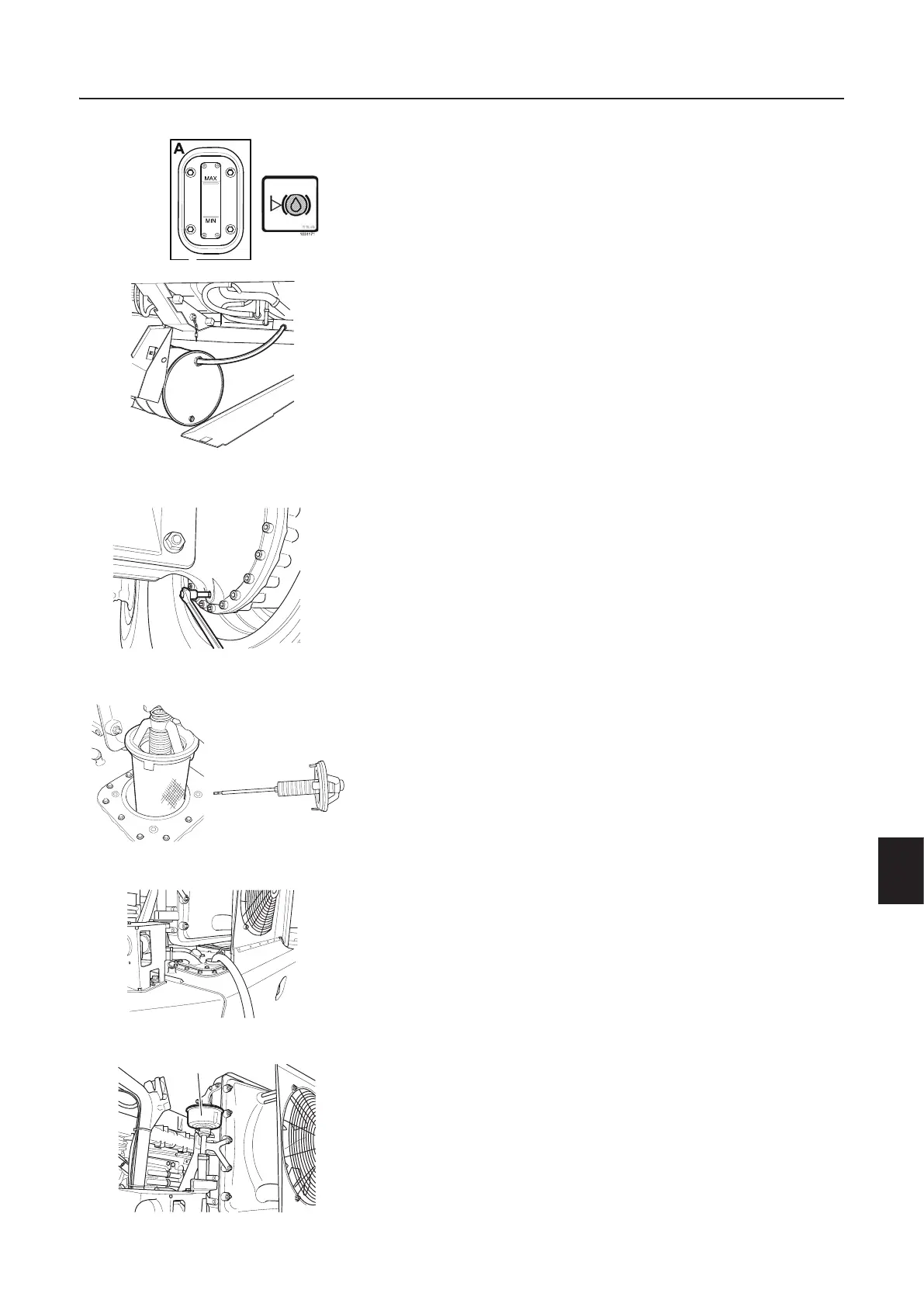

V1052760
Draining connection
V1052027
Draining point, hub
V1051427
V1052032
Oil filter and magnetic rod
V1052028
Brake cooling oil tank, filling point
V1052035
A
Breather filter, brake cooling oil
