Instrument panels
Right hand instrument panel 25
PUMA self-test
NOTE! After switching off the electric power supply, manually
by means of the battery disconnecting switch (optional equip-
ment) or by the internal function of the "PUMA"-control, the
control will run a self-test after switching the electric power
supply back on with the battery disconnecting switch or by
turning the ignition key to position "2". This test normally ta-
kes about 2 seconds. In exceptional cases it may take up to
40 seconds. However, in this phase the engine can be started.
After the self-test the display shows the excavator type and
the software version for a short moment.

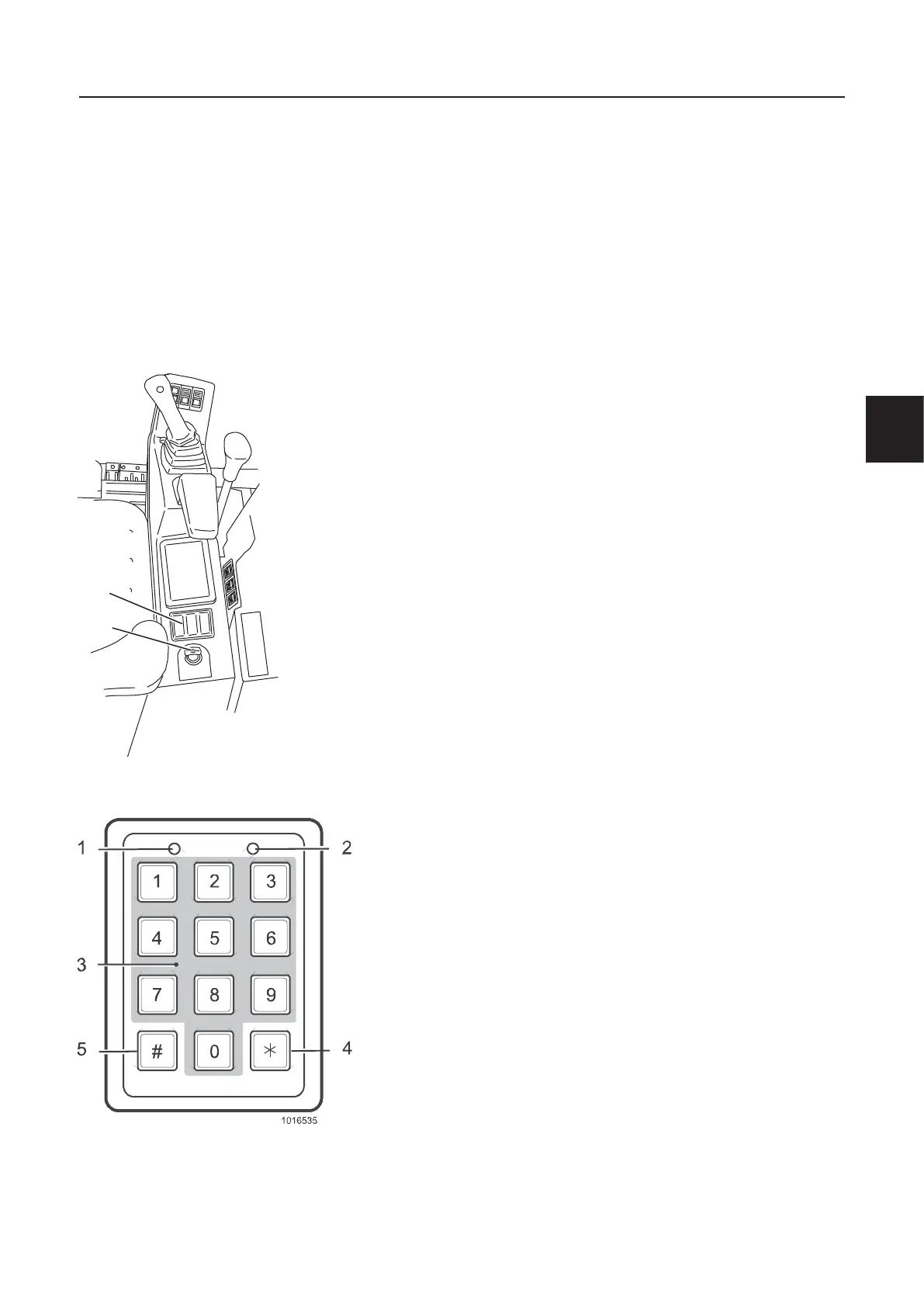

2 Anti-theft device (optional equipment)
1Green LED (Light Emitting Diode) shows the function of the
keyboard.
– Lights for a moment when pressing one of the keys.
2 Red function LED shows the status of the anti-theft device.
– Flashes, if the machine can be started without entering
the code.
– Lights permanently if the anti-theft device is activated. The
machine cannot be started.
3 Keys for input of code.
– The system allows for the use of a maximum of two 4-digit
codes. The machine can be protected by either one or two
codes. In either of these cases the engine can be started
after one of the two codes is entered. Both codes can be
individually changed.
4 Key to confirm or release a code.
5Key to edit a stored code.
Function
1 Insert the ignition key into the ignition switch and turn it to "Run-
ning" position (position 2), the red LED (2) lights permanently.
2 Enter the code (4-digit), press key (4) and start the engine. The
red LED (2) flashes.
Q When shutting down the engine (ignition key in stop position
(position 1)) the anti-theft device is activated after 15 minutes.
After this the code must be entered again for starting.
Q However, the anti-theft device can also be activated directly,
which requires to enter the code and press key (4) before swit-
ching off the ignition.
Q If the pause between the input of each digit exceeds ten se-
conds, the input of the code must be repeated from the begin-
ning.
Q The input of the code must also be repeated if the input is inter-
rupted by switching off the ignition or the battery.
Q Disconnecting the battery automatically activates the anti-theft
device.
Changing the code
1 Insert the ignition key into the ignition switch and turn it to "Tra-
vel Position" (position 2). Enter the current code and press key
