Indicators and control elements
26 Dashboard

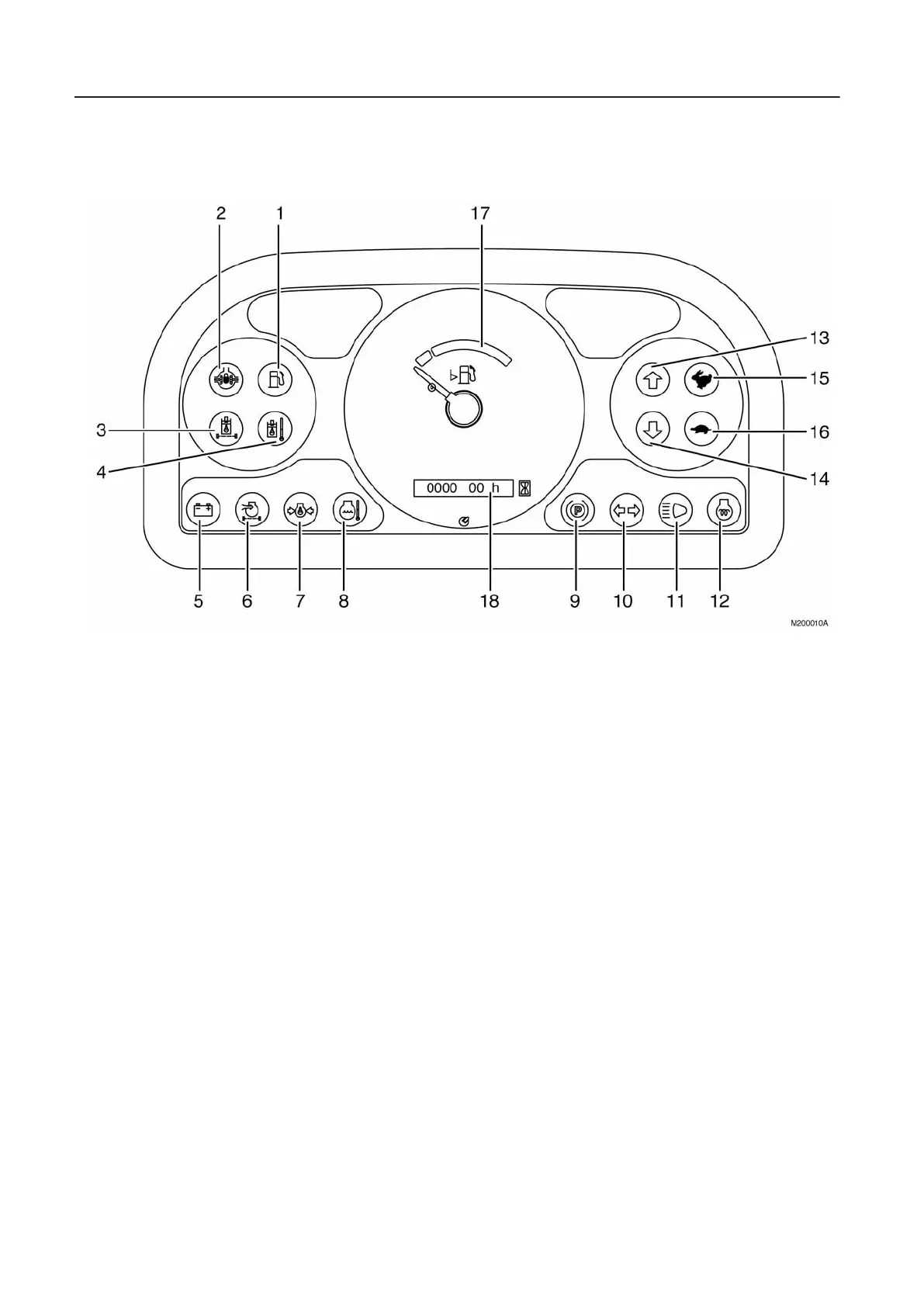

Dashboard
1 Fuel level (reserve)
2 Differential lock
3 Hydraulic oil filter
4 Hydraulic oil temperature
5 Battery charge control
6 Air filter gauge
7 Engine oil pressure
8 Engine oil temperature
9 Hand brake
10 Travel direction indicators
11 Headlights
12 Preheating
13 Forward travel
14 Reverse travel
15 Travel range gear "2" (rabbit)
16 Travel range gear "1" (turtle)
17 Fuel level gauge
18 Operating hour meter
When reaching the limit values the warning buzzer sounds as an audible warning signal (only when engine is run-
ning).
– Engine oil temperature
– Engine oil pressure
– Hydraulic oil temperature
– Hydraulic oil filter
– Air filter gauge
– Hand brake/travel system
