Levers and switches 33
Levers and switches
11 Ignition switch
The ignition switch is used for preheating and starting. Position "1"
also supplies all day consumers.
12 Push button for hazard light
This system is a precaution for a stopped wheel loader (break-
down) or for the warning of other participant in traffic in unclear traf-
fi c situations. When actuated all indicators on the wheel loader will
flash at the same time.
13 Light switch / direction indicators / warning
horn / windscreen wiper/washer system
Direction indicator, warning horn
– Lever forward = left hand direction indicator
– Lever backward = right hand direction indicator
– Button depressed = warning signal
Headlights
– Lift the lever towards the steering wheel = full headlights
Windscreen washer system
– Pull the ring towards the steering wheel = windscreen washer
system
Windscreen wiper (turning of lever)
– Position = interval wiper
–Position0 =Neutral
–PositionI = Windscreen wiper
–PositionII = windscreen wiper

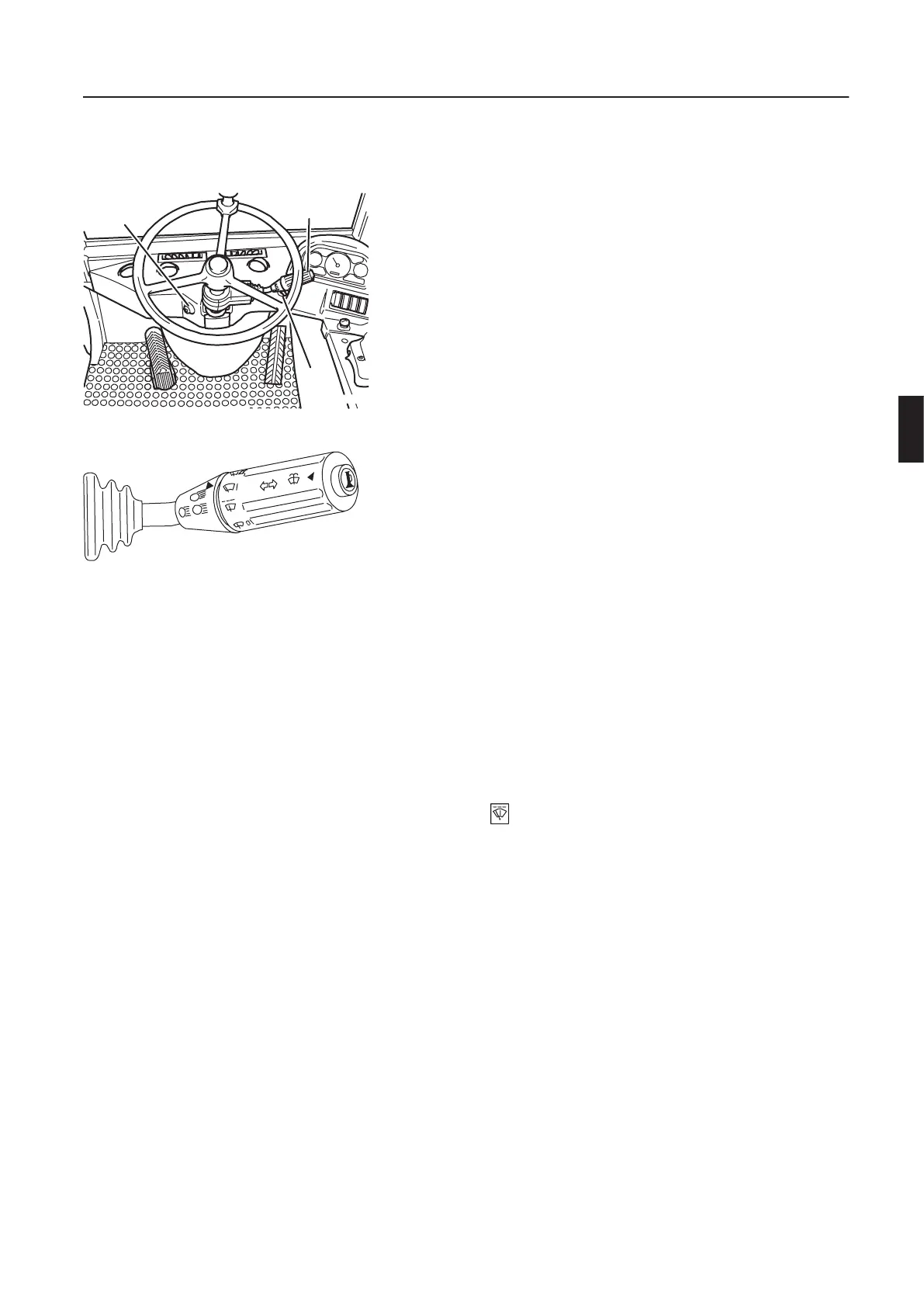

M200038A
11
13
12
M300029
