Volvo L20B - Attaching and removing attachments

Travel
50 Attaching and removing attachments
Attaching and removing
attachments
Installation and removal of quick change
working attachments without additional
hydraulics

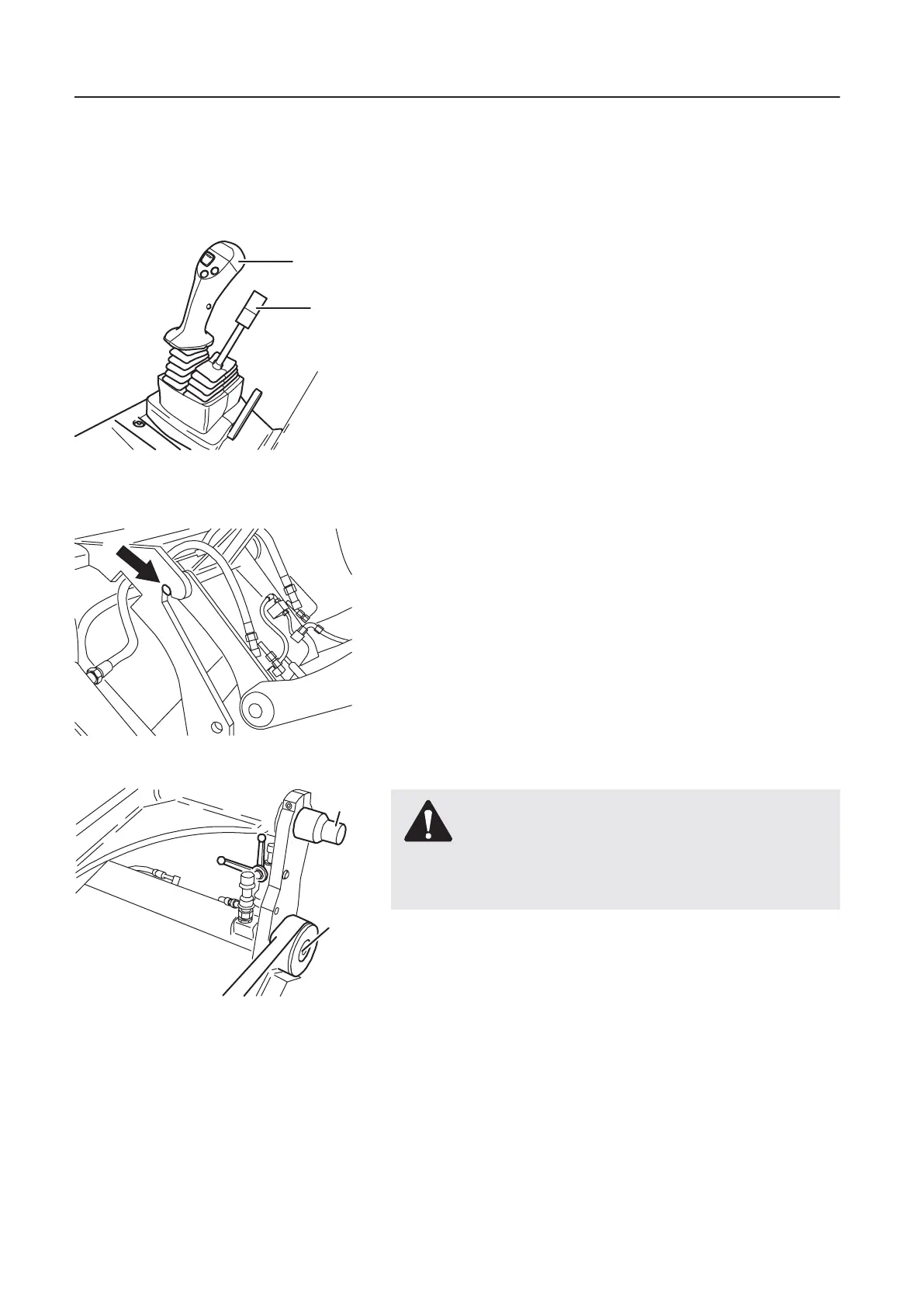

Install the working attachment (e.g. bucket, load-
ing fork etc.).
– Drive the loader forward up to the working attachment.
– Turn the cock valve on the attachment carrier to position (A).
– Shift lever (1) to "Lifting", until the centring pins (C) of the
SW-carrier (see illustration) have picked up the working
attachment.
– Actuate lev er (2) "Tipping back", until the working attachment
lifts off the ground.
– Shift lever (2) backwards until the locking pins (D) protrude from
the receiving bores of the working attachment for approx.
10 mm.
– Shift lever (2) to middle position (neutral).
– Shut the engine down.
– Turn the cock valve on the attachment carrier to position (B).
A Cockvalveinposition"Open"
B Cock valve in position "Closed"
C Locating pin
D Locking pin
ATTENTION!
Check whether the working attachment is properly locked
and secured by actuating lever (1) from "Tipping back" fully
to "Tipping".
M200054A
2
1
M300051A
C
M300049A
C
D
A
B
