Indicators and control elements

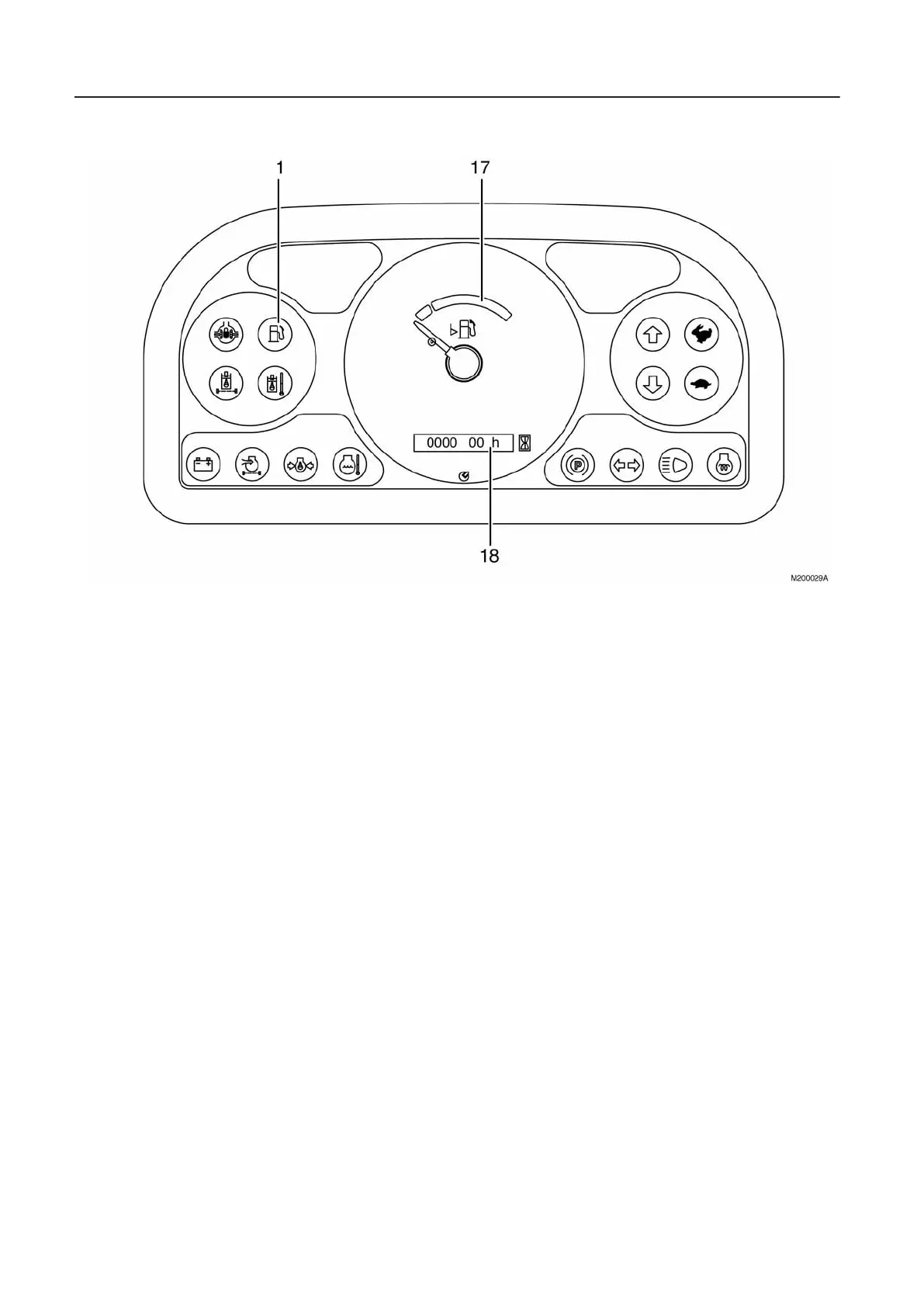

30 Dashboard
17 Fuel level gauge
Shows the filling le vel in the fuel tank. If the pointer is in the red
sector or the control light (1) lights up the machine needs refuel-
ling. Filling capacity: see technical data.
18 Operating hour meter
The operating hours of the wheel loader are shown in minutes and
hours. Perform the maintenance tasks accordingly.
