INSTALL CENTER

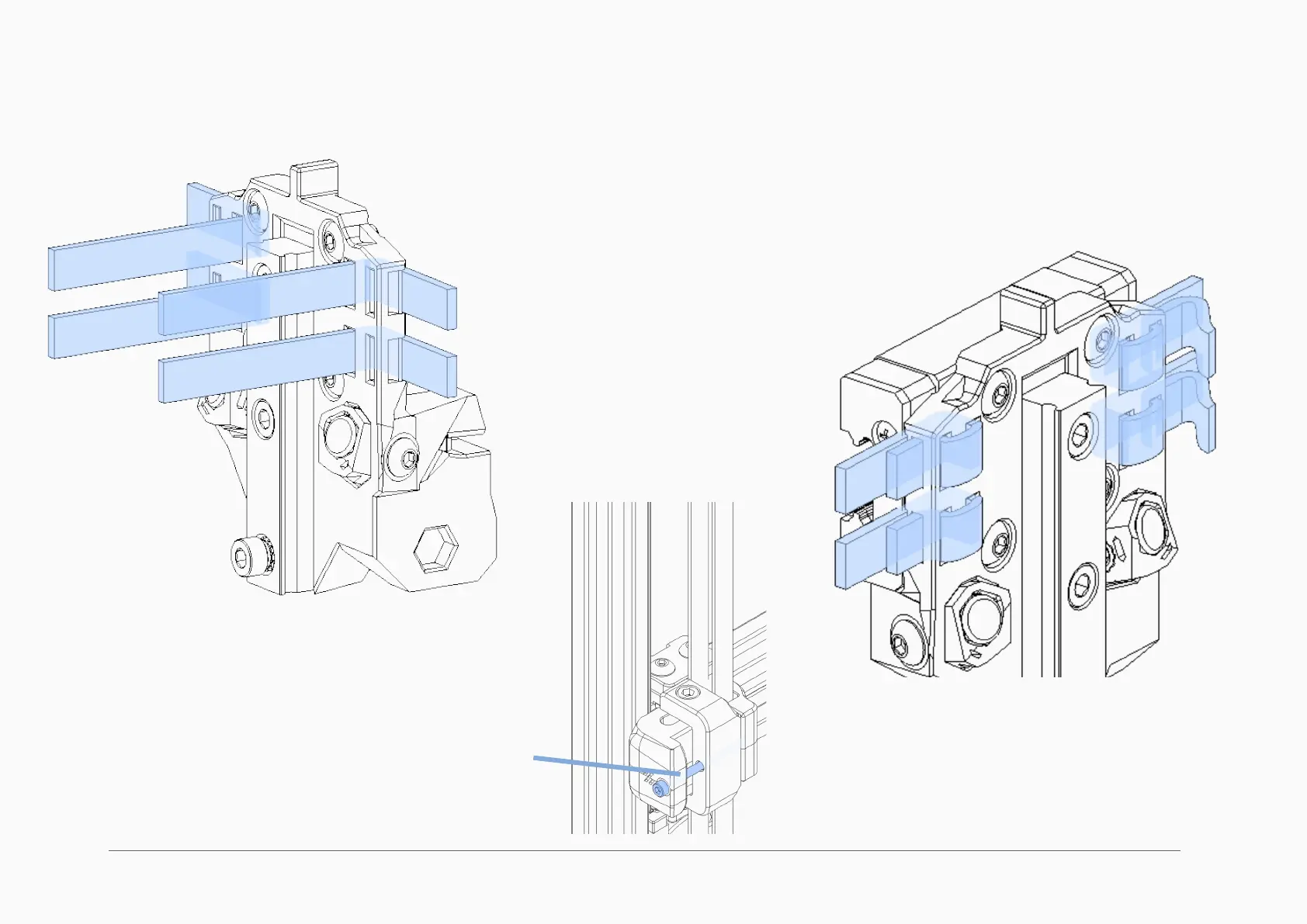

THREAD BELT ENDS THROUGH CENTER
Make sure the belt adjustment screws on the front idlers are loosened completely.
Pull the belts taut through the center section of Tap. Secure center to X-Axis MGN
12 using 4 M3x6 BHCS. Retension the belts using the adjustment screws on the
front idlers.
Belt adjustment screw
TUCK BELTS BACK THROUGH SLOTS
Tuck the belts back into the center and pull them out to sides. Don’t worry if
they stick out. We’ll manage that in a later step when we put the front on.
