8 Initial start up BTS 630, 635
38 Operator's manual
Slackening the V-belt
1. Loosen both belt guard screws by approximately one turn.
2. Rotate the adjusting screw counter-clockwise until the V-belt is slackened
completely.
3. Unscrew the belt guard screws and remove them.
4. Remove the belt guard.

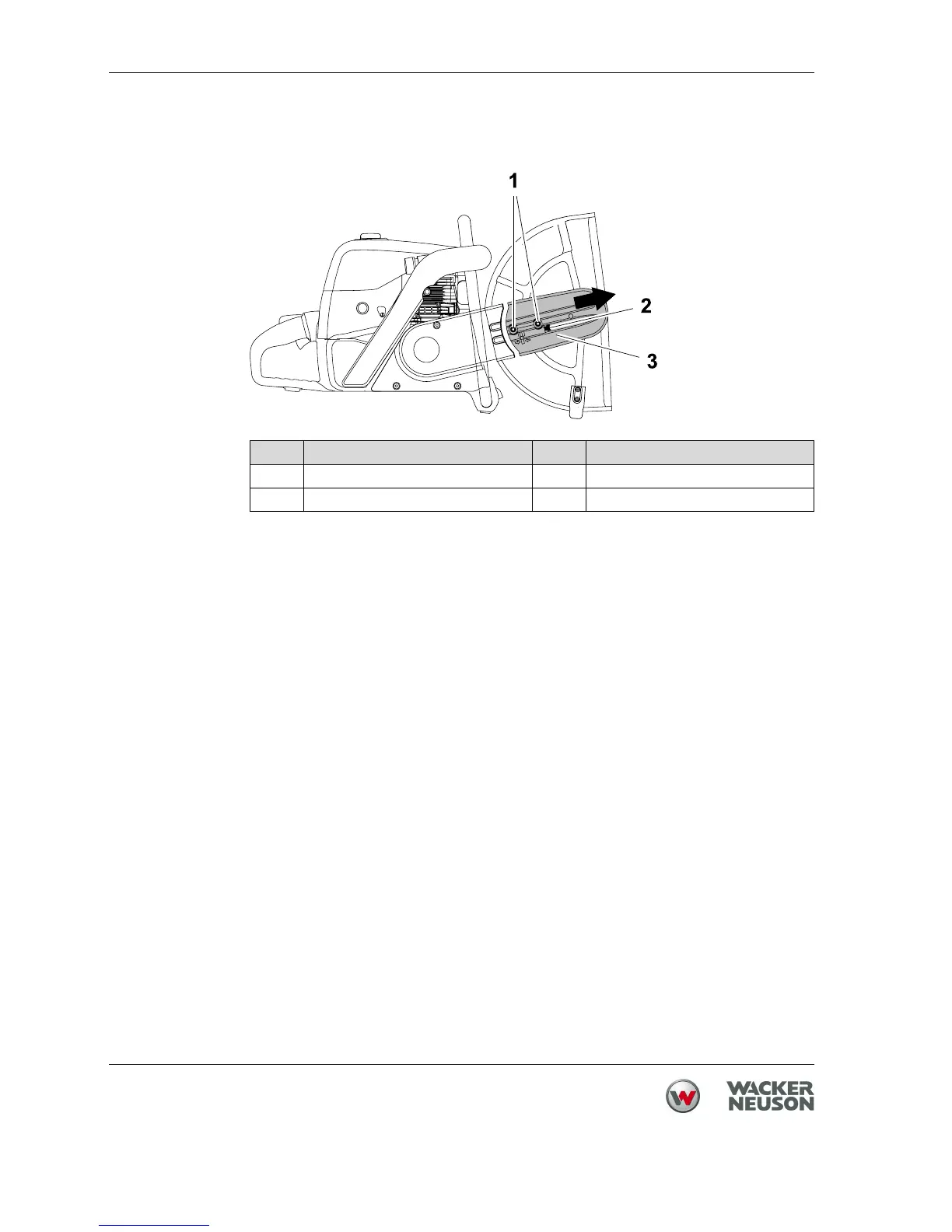

Item Designation Item Designation
1 Screw (2 pieces) 3 Belt guard
2 Adjusting screw 4
