BTS 630, 635 10 Maintenance
Operator's manual 61
Attaching the covers

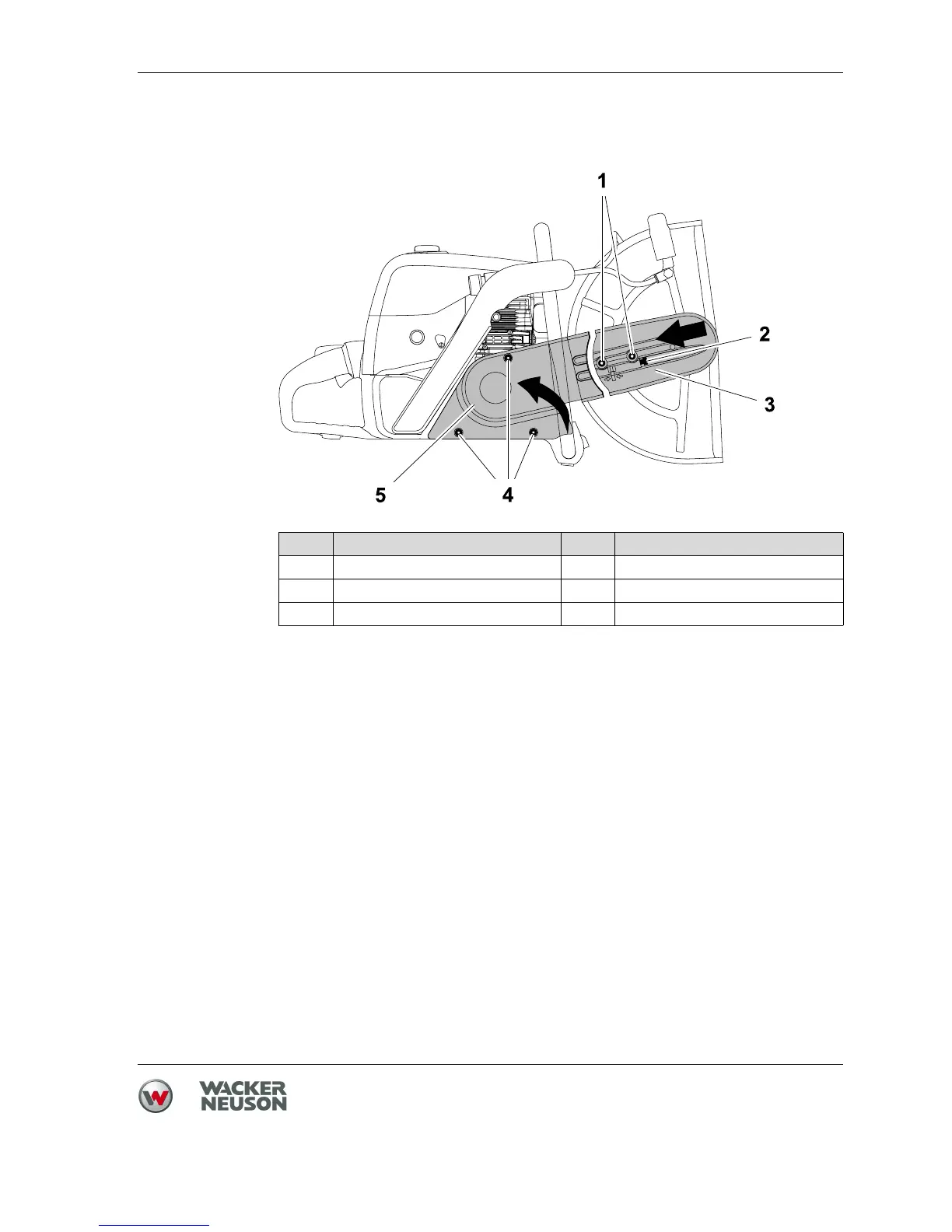

1. Place the clutch cover in position and tighten it with screws.
2. Place the belt guard in position and affix it with screws.
3. Rotate the adjusting screw clockwise until the square nut is flush with the
mark.
4. Tighten the belt guard screws.
Torque 25 Nm.
Item Designation Item Designation
1 Screw (2 pieces) 4 Screw (3 pieces)
2 Adjusting screw 5 Clutch cover
3 Belt guard
