TRANSPORT TO WORK SITE, RECOMMENDATIONS ON COMPACTION
Transport to work site
Conditions:
- To transport the vibration plate, only use suitable lifting equipment with a minimum load-bearing capacity of
800 kg.
- Always switch off engine before transporting the machine!

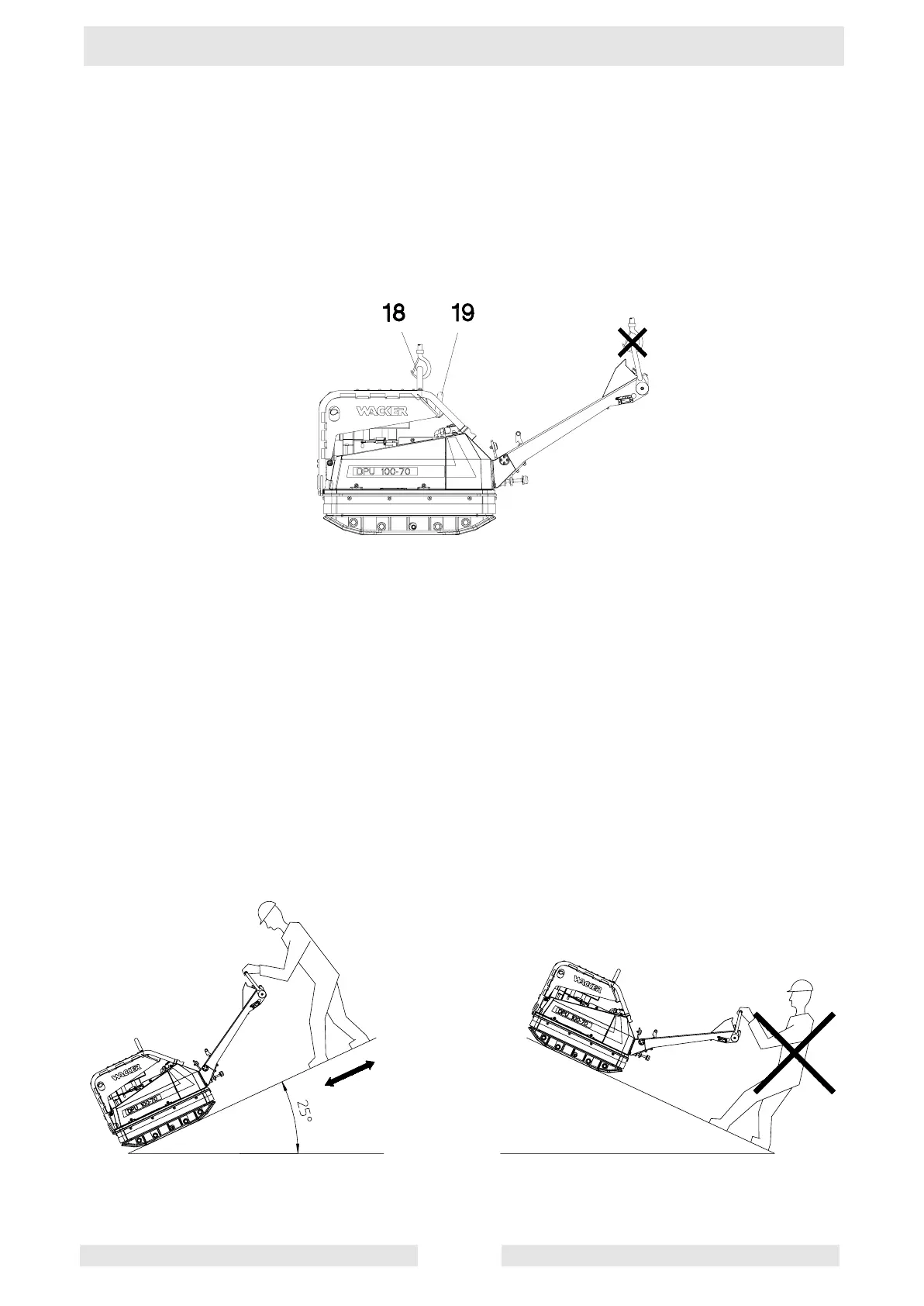

- Only attach suitable tackle at the central lifting point (18) provided. The central lifting point is located exactly
above the centre of gravity of the machine. The central lifting point can be displaced rearwards (19), given
an application in which the height of the machine is of importance (torque wrench setting = 85 Nm).
- Be sure to tie down the machine at the appropriate points during transportation on transport vehicles.
Note: Also observe the regulations in the “safety instructions“.
Recommendations on compaction
Ground conditions
The max. compaction depth depends on several factors relating to the ground conditions, such as moisture,
size grain distribution etc.
It is therefore not possible to specify an exact figure for.
Recommendation: In each case determine the maximum compaction depth with compaction tests and soil
samples.
Compaction on slopes
The following points are to be observed when compacting on sloped surfaces (slopes, embankments):
* Only approach gradients from the bottom (a gradient which can be easily overcome upwards, can also be
compacted downwards without any risk).
* The operator must never stand in the direction of descent (see chapter “safety instructions“).
* The max. gradient of 25
o
must not be exceeded.
ATTENTION! If the max. gradient were exceeded, this would result in a failure of the engine lubrication
system and thus inevitably lead to a breakdown of important engine components.
Right ! Wrong !
