MAINTENANCE
Hydraulic control

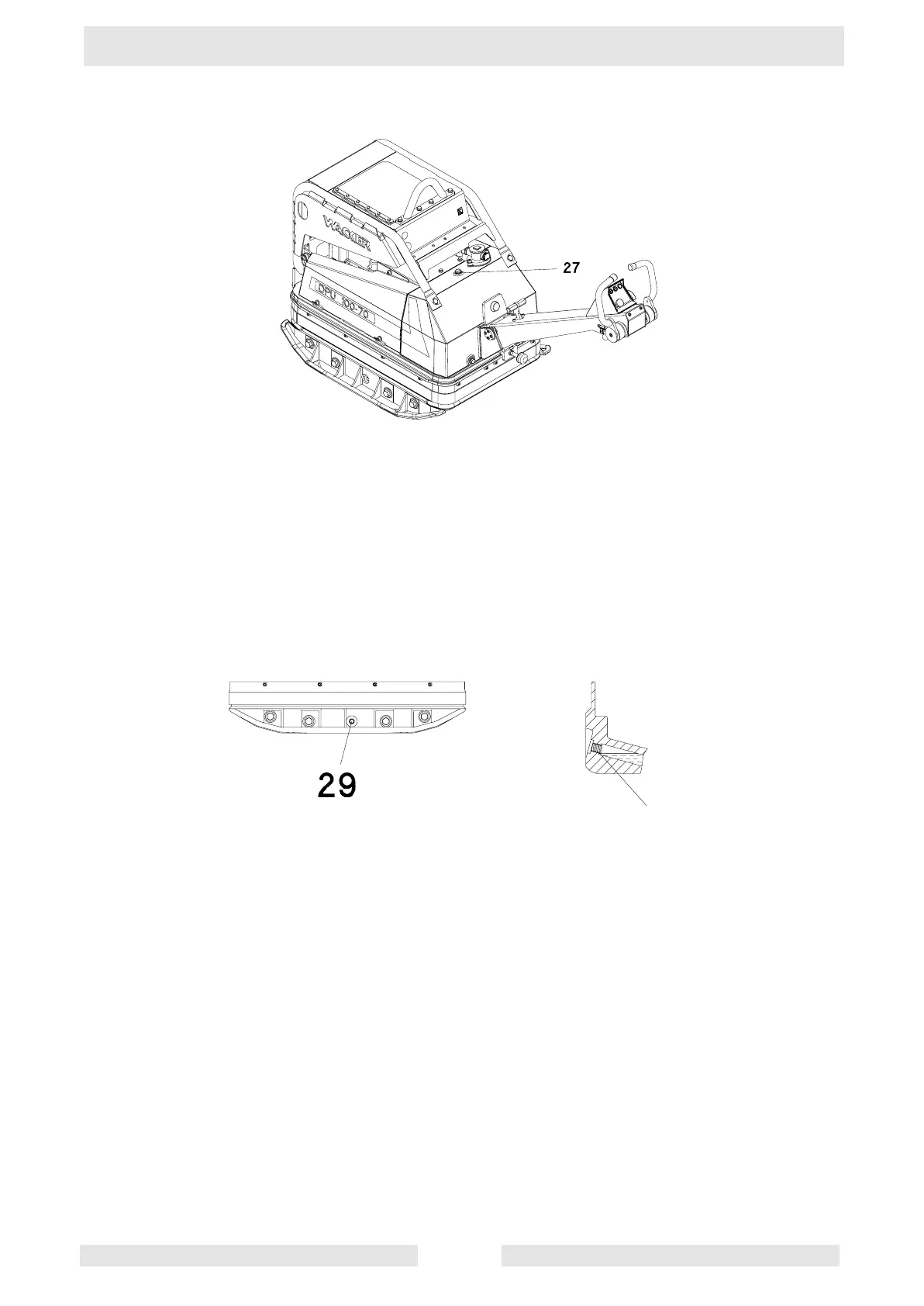

Check oil level:
1. Screw out screwed sealing plug (27).
2. The oil level must be 7,5 cm under the upper end of the screwed filler opening. Top up with oil (Fuchs Re-
nolin
MR 520) if necessary.
3. Screw screwed sealing plug (27) back in.
Bleeding the hydraulic system:
Bleeding of the hydraulic line to the exciter will be required after repair/ maintenance jobs of the hydraulic circuit
for forwards and reverse travel have taken place.
Exciter
Thread start
Check oil level:
1. Position vibration plate horizontally.
2. Open filler bore (29).
3. The oil level must reach the start of the thread of the filler bore (29).
4. If necessary, pour in Fuchs Titan Unic 10W40 MC oil through filler bore (29) (use funnel).
5. Close filler bore (29). (Tightening torque 100 Nm)
Changing the oil:
1. Remove extension plate if necessary.
2. Open filler bore (29).
3. Tilt vibration plate and keep it tilted until the oil has run out.
4. Place vibration plate in horizontal position.
5. Pour in 1,5 l Fuchs Titan Unic 10W40 MC oil through the filler bore (29).
6. Close filler bore (29). (Tightening torque 100 Nm)
7. Install back extension plate if necessary.
☛ATTENTION! Do not pour in too much oil!
