SK00633GB
20

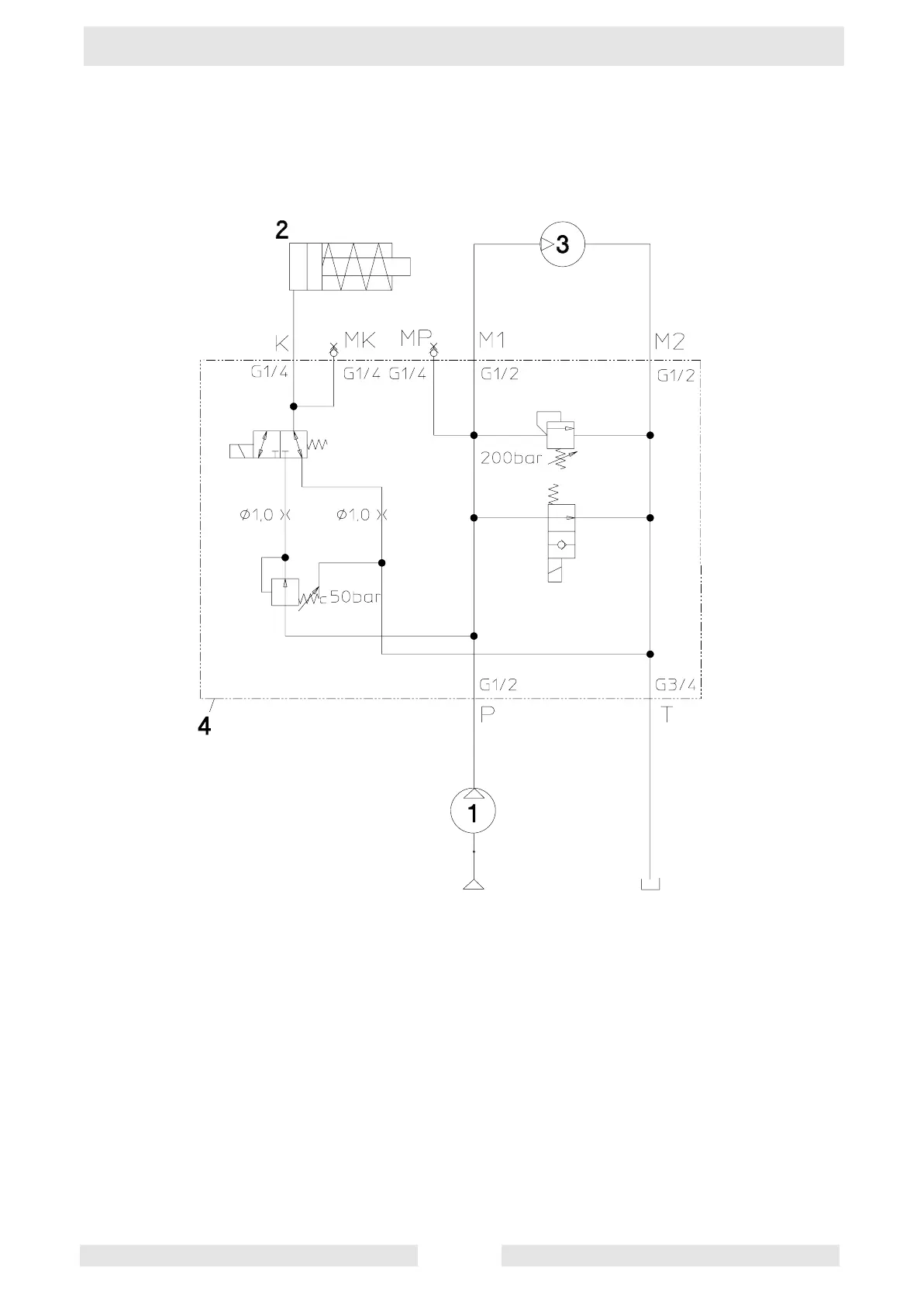

HYDRAULIC CONNECTIONS DIAGRAM
1) Gear pump
2) Advance/reverse control
3) Exciter drive
4) Block-hydraulic
