T00884GB
16
MAINTENANCE

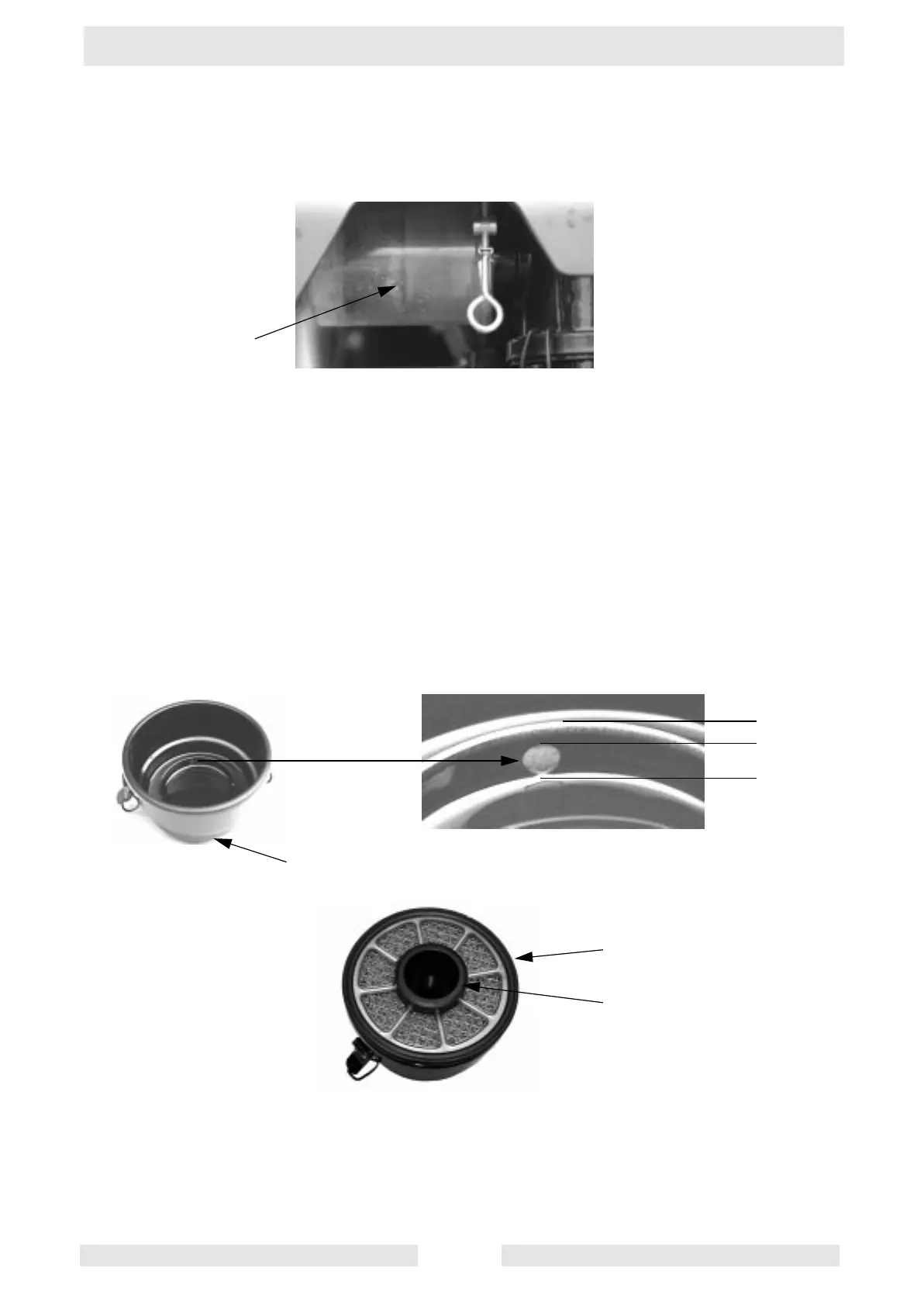

Oil bath air cleaner
Examination of dirt accumulation within the transparent preliminary filter (cyclone); Remove clamp if cleaning
is necessary, then off the cyclone and tap clean.
Cyklone
Control and oil quantities:
The air cleaner cover must be removed to check the oil level. Open both clamps for this purpose.
The necessary oil quantities have been defined by the engine manufacturer (0,3 liters 10W40), but are not al-
ways easy to duplicate if an appropriate graduated measuring cup is not available. The cover of the oil bath
filter has been provided with a punched oil level marking for this reason.
Easier yet for practical purposes, though, is the determination of the oil quantity with the help of the perforations
in the cover’s integrated ring.
The poil quantities have been defined as follows:
Minimum - Oil up to lower edge of boring
Standard - Oil up to upper edge of boring
Maximum - Oil up to upper edge of ring
Attention: Do not fill oil above maximum mark under any circumstances.
Maximum
Standard
Minimum
Punched oil level mark
a
b
Note: Pay attention when assembling the cover that the gasket (a) and the leathering (b) of the filter’s
insert are available and in the right position.
