Maintenance
T01007GB.fm 32

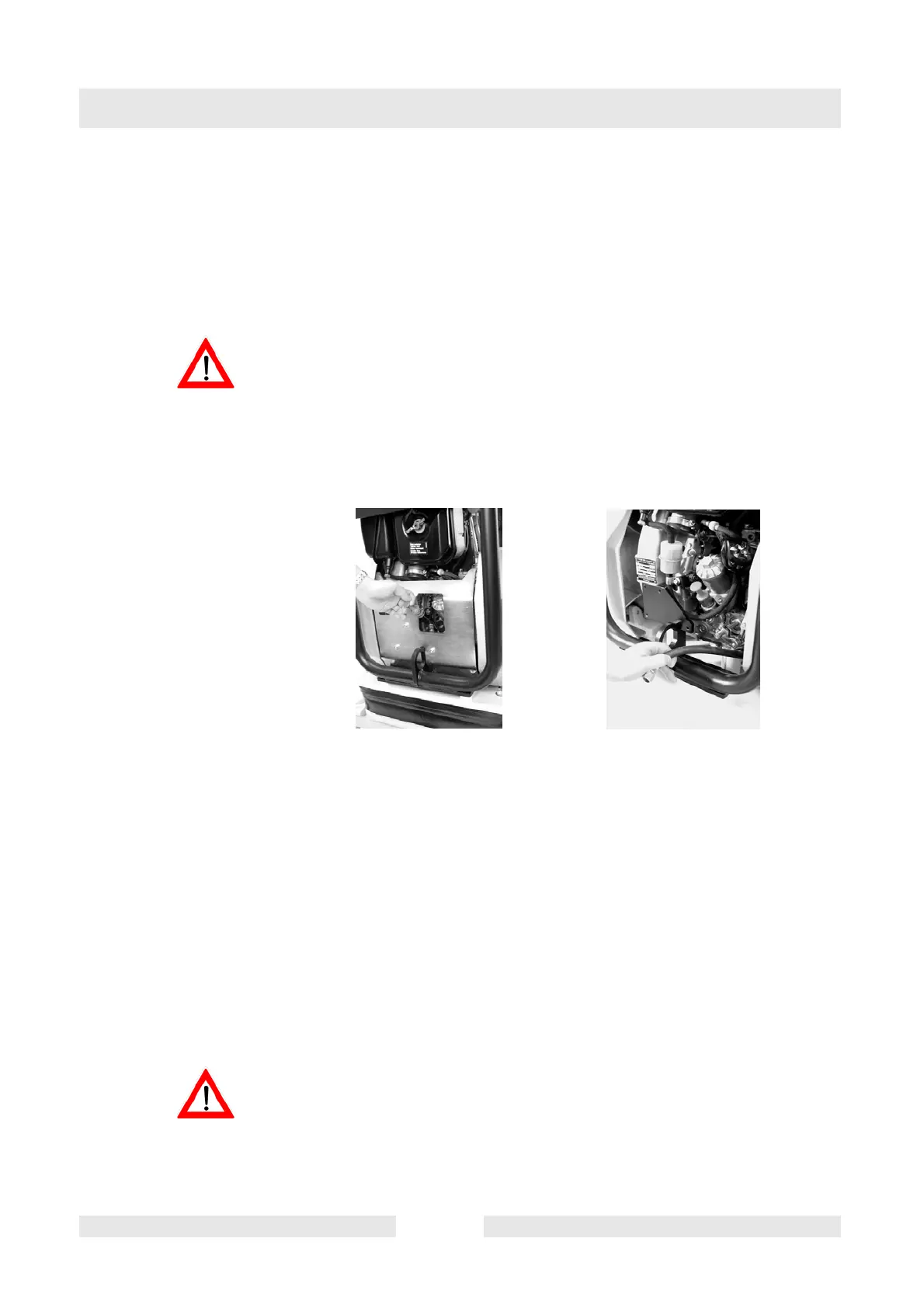

7.2 Engine oil and oil filter
7.2.1 Check oil level:
∗ Remove dirt from the oil dip stick area. Check oil level on oil dipstick
(19).
Place the machine in an horizontal (level) position and stop the engine
before checking the oil level.
∗ If the oil (see Technical Data) level is too low, top up with Fuchs oil
though the filler nozzle.
∗ Pay attention to the max. level mark on the dip stick!
7.2.2 Replacing oil and oil filter:
Note
The work area should be covered with a waterproof sheet to protect
the floor (protection of the environment).
1. Let engine warm up.
2. Take off the front cover plate.
3. Remove the oil hose from the support (spanner opening 19) and
then hang the hose into an appropriate container.
Danger of scalding by hot oil!
Collect the used oil and dispose of it according to local regulations.
4. Let the oil drain completely. Lift the back end of the machine if
necessary.
