Wacker Neuson DPU 7060SC - Wiring Diagram

Electricwirning-Diagramm
SK00689GB 33

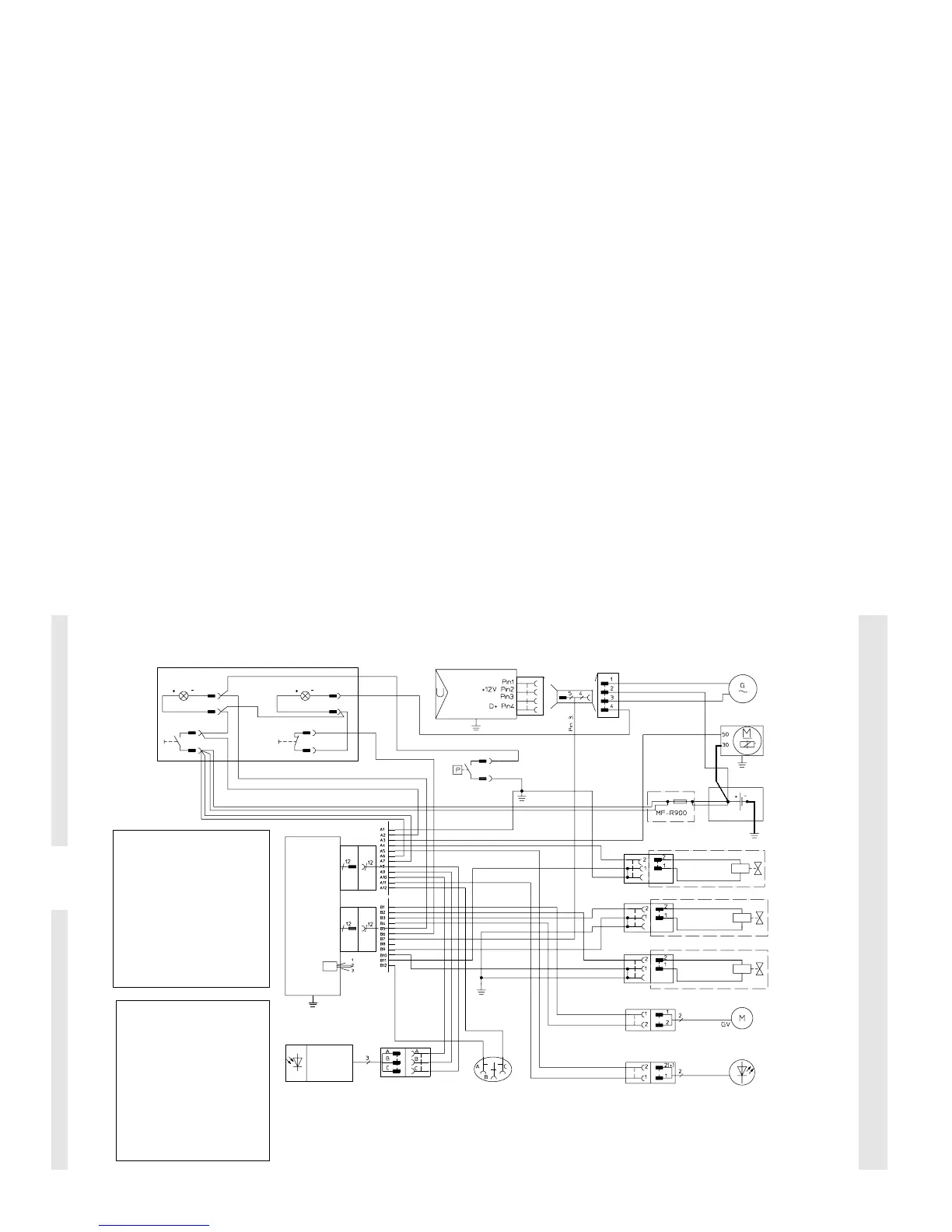

9. Electricwirning-Diagramm
PlugA, grey
A1 Ground, brown
A2 +12V ON, pink
A3 STA OUT, black
A4 FUE OUT, lilac
A5 CTL OUT, brown
A6 12V MF, red
A7 12V MF, red
A8 Ground, brown
A9 Eye specifications, blue
A10 Eye+, pink
A11 Ground, blau
A12 +12V OUT, red
Plug B, black
B1 GV 1 OUT, black
B2 R OUT, lilac
B3 L OUT, blue
B4 GV 2 OUT, red
B5 OELDR IN, white
B6 OFF IN, red
B7 FREQ IN, black
B8 POS IN,
B9 GND, brown
B10 GND, brown
B11 GND, brown
B12 GND, black
Console
Generator
Electric starter
Battery
Diesel valve
Left
Eccentric
weight
Throttle adjuster
Charge regulator
Oil pressure
lamp
ON-
Switch
LED-Ring
Oil pressure switch
Plug A
grey
Plug B
black
Codification
switch
IR - Receiver
Right
Eccentric
weight
Charge socket
Decoder
Charge control lamp
Generator
Generator
black
red
black
red/yellow
yellow
ayellow
redrred
brown
white
brown
red/yellow
pink
red
pink
white
black
red
red
pink
OFF-
Switch
black
