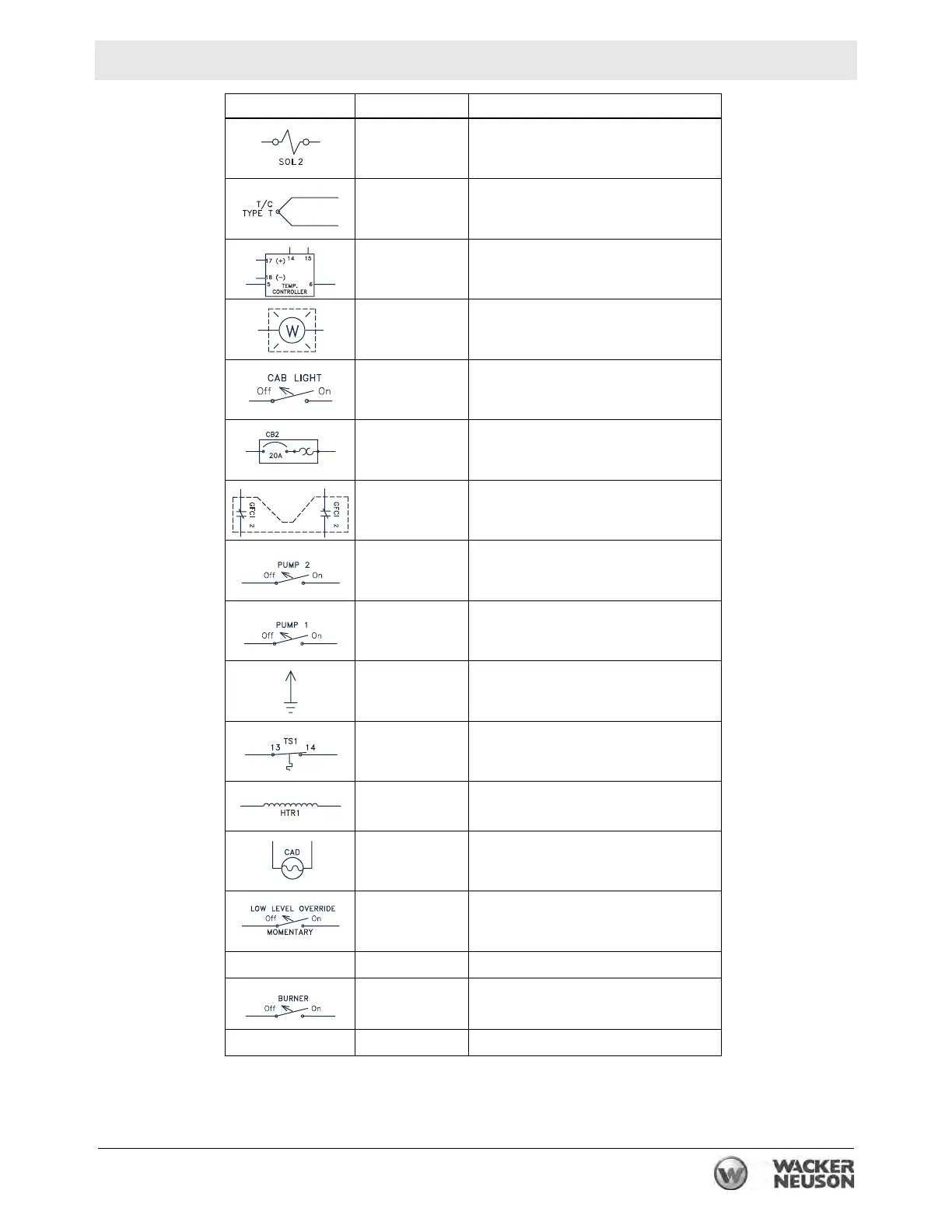

E 2200, E 3000ES Schematics
wc_tx001672gb.fm 127
SOL 2 Solenoid 2
(Oil valve)
T/C type T Thermocouple Type T
TEMP.
CONTROLLER
Temp. (temperature) controller
n/a Cab light
CAB LIGHT Cab light
Off/On switch
CB 2 Circuit breaker 2
GFCI 2 Ground Fault Circuit Interrupt 2
PUMP 2 Pump 2
Off/On switch
PUMP 1 Pump 1
Off/On switch
GND Ground
TS1 Thermal switch 1 (snap disc)
HTR1 Heater (fuel prewarmer)
CAD Cad cell
LOW LEVEL
OVERRIDE
MOMENTARY
Low-level shut down device
momentary override Off/On
switch.
n/a n/a Auxilliary pump panel
BURNER Burner
Off/On switch
n/a REWIND Rewind
Symbol Ref Description
