E 2200, E 3000ES Accessories
wc_tx001668gb.fm 69
Continued from the previous page.
3. Close valve (4).

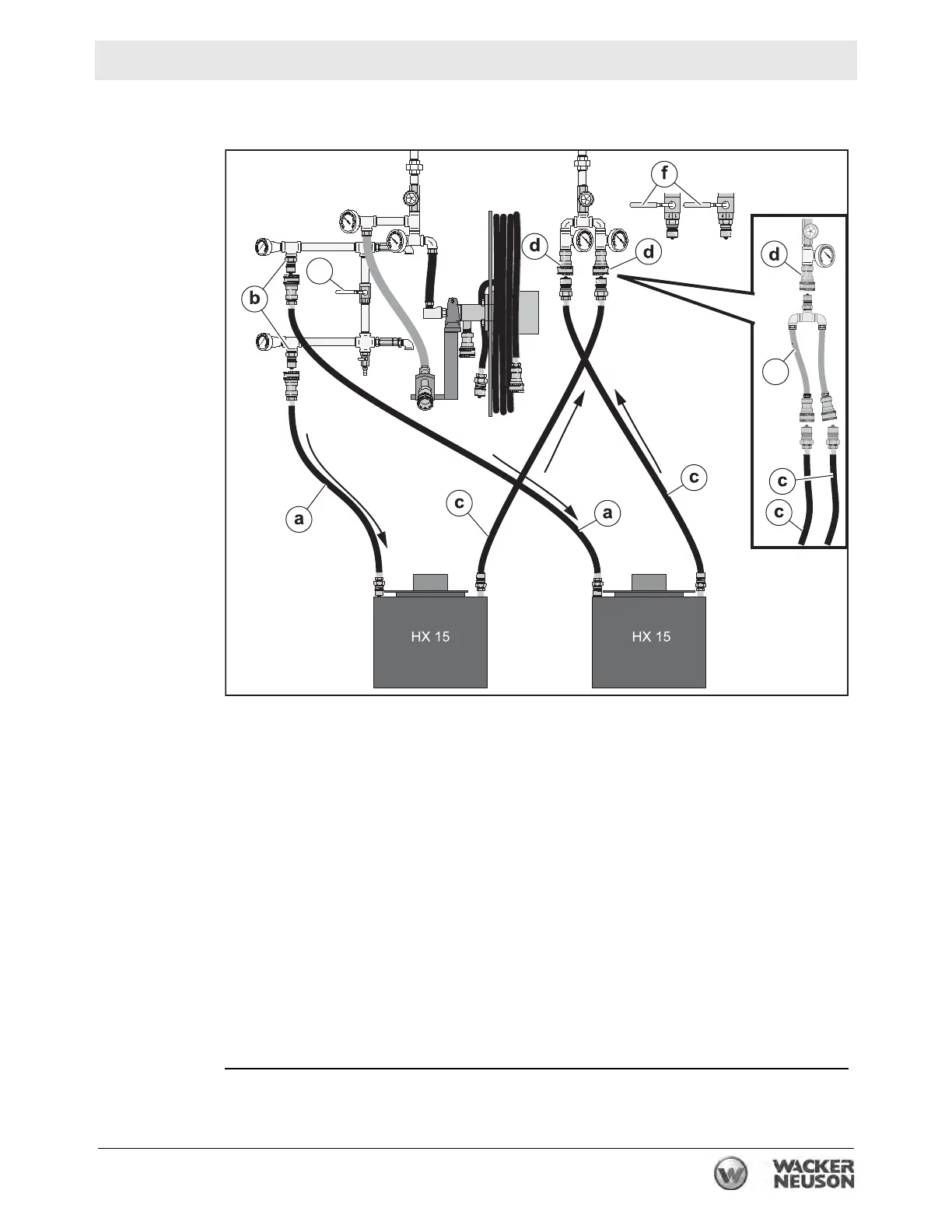

4. Position the HEAT XCHANGERS within the space to be heated.
5. Connect the HEAT XCHANGER supply hoses (a) to the HTF supply line (b).
6. Connect the HEAT XCHANGER return hoses (c) to the accessory HTF return
port (d). On E 3000ES machines, use a 1–2 connector (g).
7. Insulate the supply and return hoses.
8. Close the Pump Pack HTF supply valves (f).
9. Connect the HEAT XCHANGERS to the appropriate electrical sources.
NOTICE: Only turn on the pumps when the HEAT XCHANGERS are connected.
Turning on the pumps when the HEAT XCHANGERS are not connected will cause
excess system pressure which will damage the pumps.
10.Start the parent machine. Operate the parent machine with the temperature
controller set to 80°C (180°F).
11.Turn on the HEAT XCHANGERS and adjust their thermostats as desired.
Result
The HEAT XCHANGERS have now been connected.
wc
r007817
HX 30 HX 30
4
g
E 3000ES
To Next Page
