Continued from the previous page.
3. Close valve (4).
4. Position the HEAT XCHANGERS within the space to be heated.
5. Connect the 1-2 adapters (a) to the supply lines (b).
6. Connect the HEAT XCHANGER supply hoses (e) to the 1-2 adapters (a).
7. Connect the HEAT XCHANGER HTF return hoses (f) to 2-1 adapters (c).
8. Close the Pump Pack HTF supply valves (h).
9. Insulate the supply and return hoses.
10.Connect the HEAT XCHANGERS to the appropriate electrical sources.
NOTICE: Only turn on the pumps when the HEAT XCHANGERS are connected.
Turning on the pumps when the HEAT XCHANGERS are not connected will cause
excess system pressure which will damage the pumps.
11.Start the parent machine. Operate the parent machine with the temperature
controller set to 80°C.
12.Turn on the HEAT XCHANGERS and adjust their thermostats as desired.
Result The HEAT XCHANGERS have now been connected.

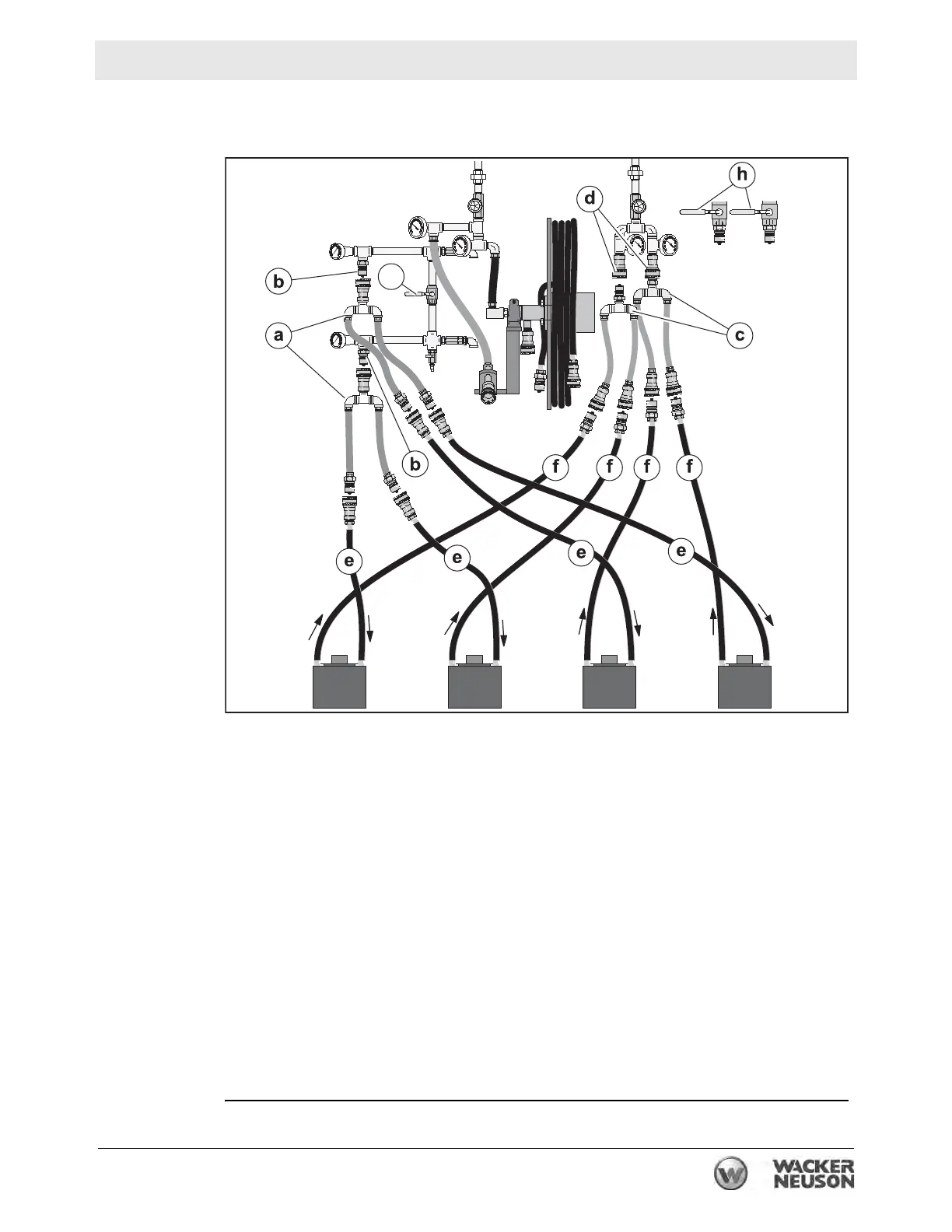

wc_gr007818
