E 2200, E 3000ES Burner Setup
wc_tx001669gb.fm 81
Continued from the previous page.

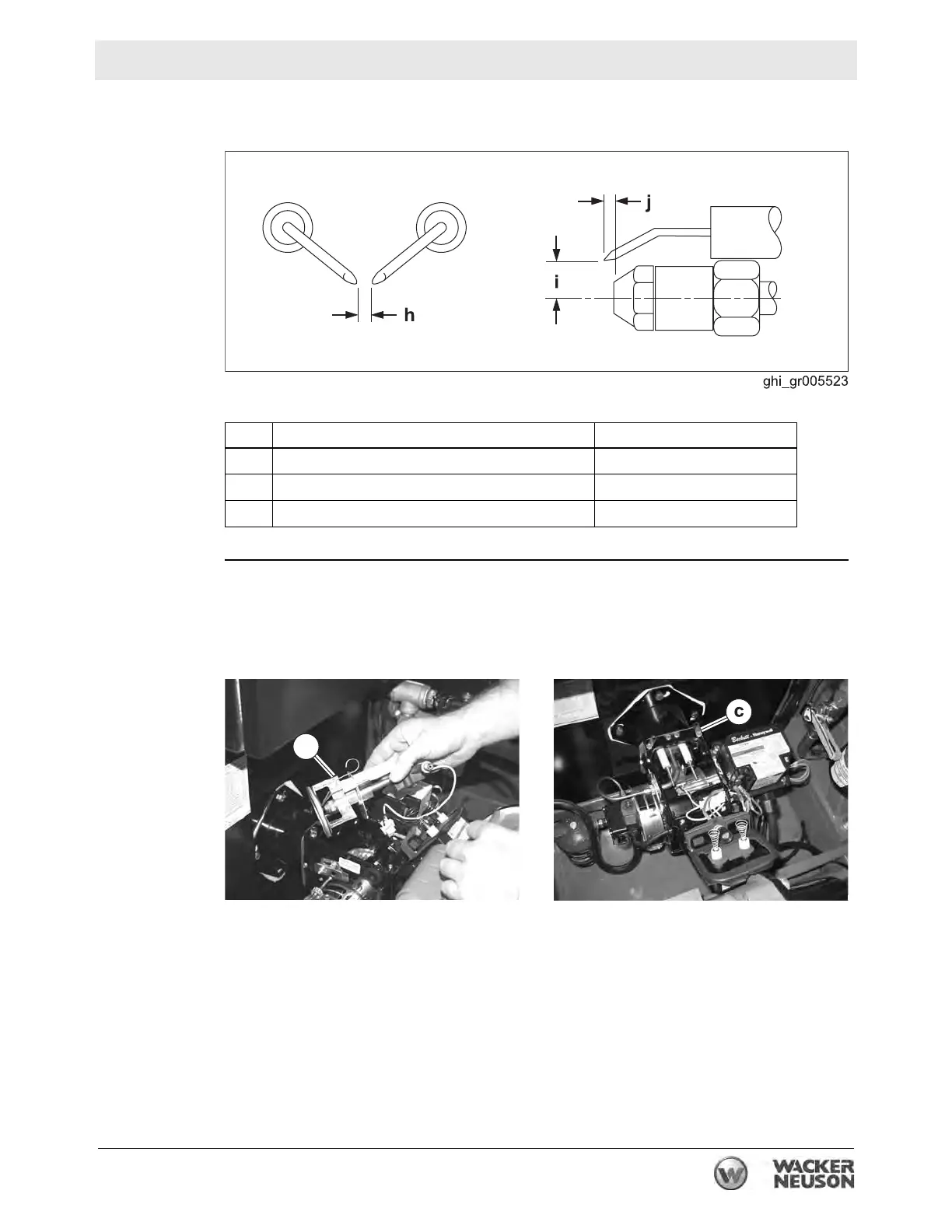

7. Use the measurements below to properly set the electrode tips.
Installation
Follow the procedure below to install the burner nozzle.
1. Thread the new burner nozzle into the burner tube.
Note: Do not use thread sealant on the threads.
2. Position the electrode-nozzle assembly (d) into the burner.
3. Connect the wiring.
4. Close the igniter cover and secure it with tabs (c).
This procedure continues on the next page.
Ref. Description Gap distance
h Electrode tip to electrode tip 5/32 in. (4 mm)
i Nozzle center to electrode tip 5/16 in. (7.5 mm)
j Nozzle end to electrode tip end 1/16 in. (1.5 mm)
