Burner Setup E 2200, E 3000ES
84 wc_tx001669gb.fm
Continued from the previous page.
7. Unscrew the burner nozzle (e) from the burner tube.
The procedure to remove the burner nozzle is now complete.
Installation
Follow the procedure below to install the burner nozzle.
1. Thread the new burner nozzle into the burner tube.
Note: Do not use thread sealant on the threads.
2. Position the electrode-nozzle assembly (d) into the burner.
3. Connect the wiring.
4. Close the igniter cover and secure it with tabs (c).
This procedure continues on the next page.

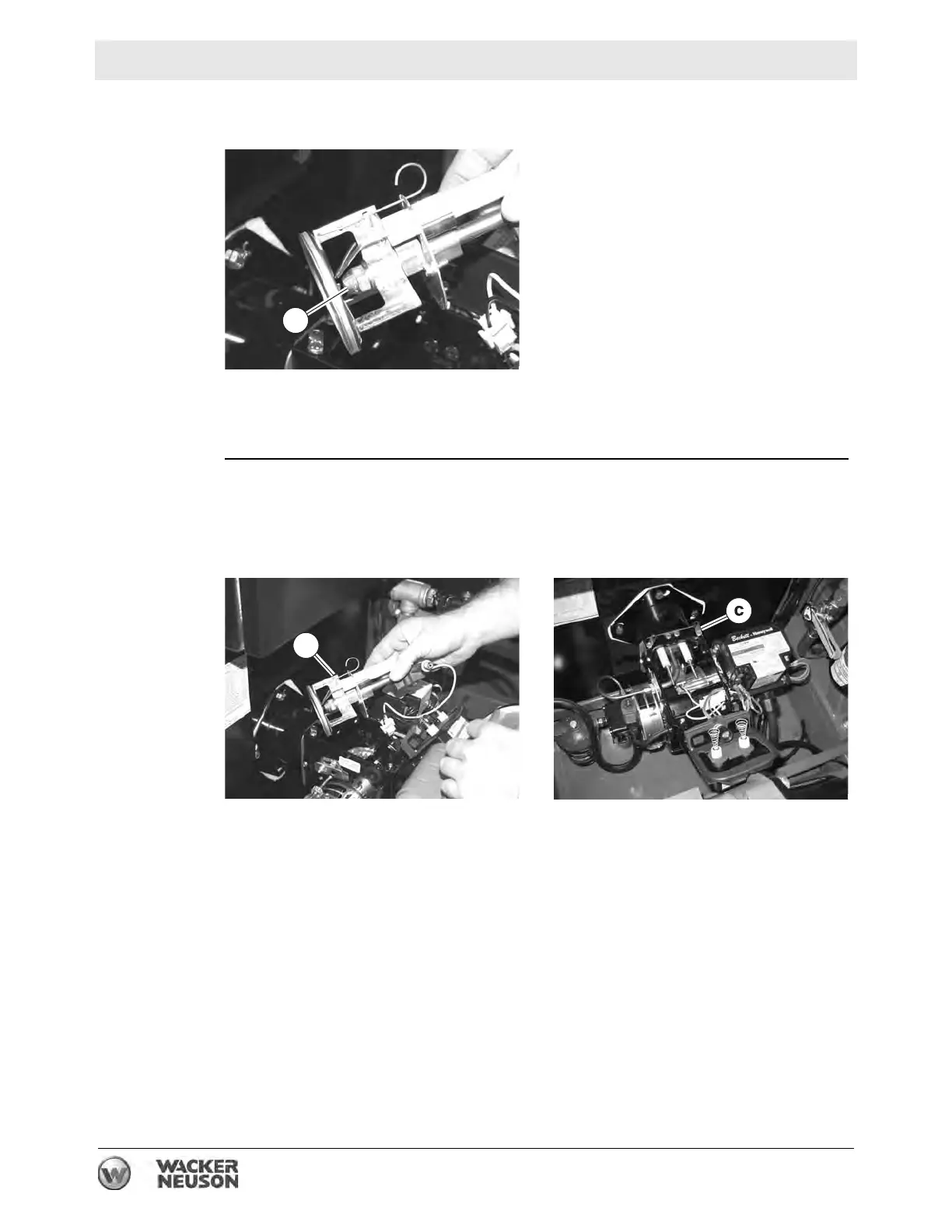

wc_gr008114
