Troubleshooting GP Repair
wc_tx000548gb.fm 96
6.19 Checking and Installing the Voltage Selector Switch (VSS)
See Graphic: wc_gr003134 and wc_gr003135
Personal injury may occur while running the generator if the VSS is
incorrectly wired. If the VSS has been worked on, be sure the VSS is
correctly wired before running the generator.
CAUTION: Damage to the generator will occur if the VSS is incorrectly
wired.

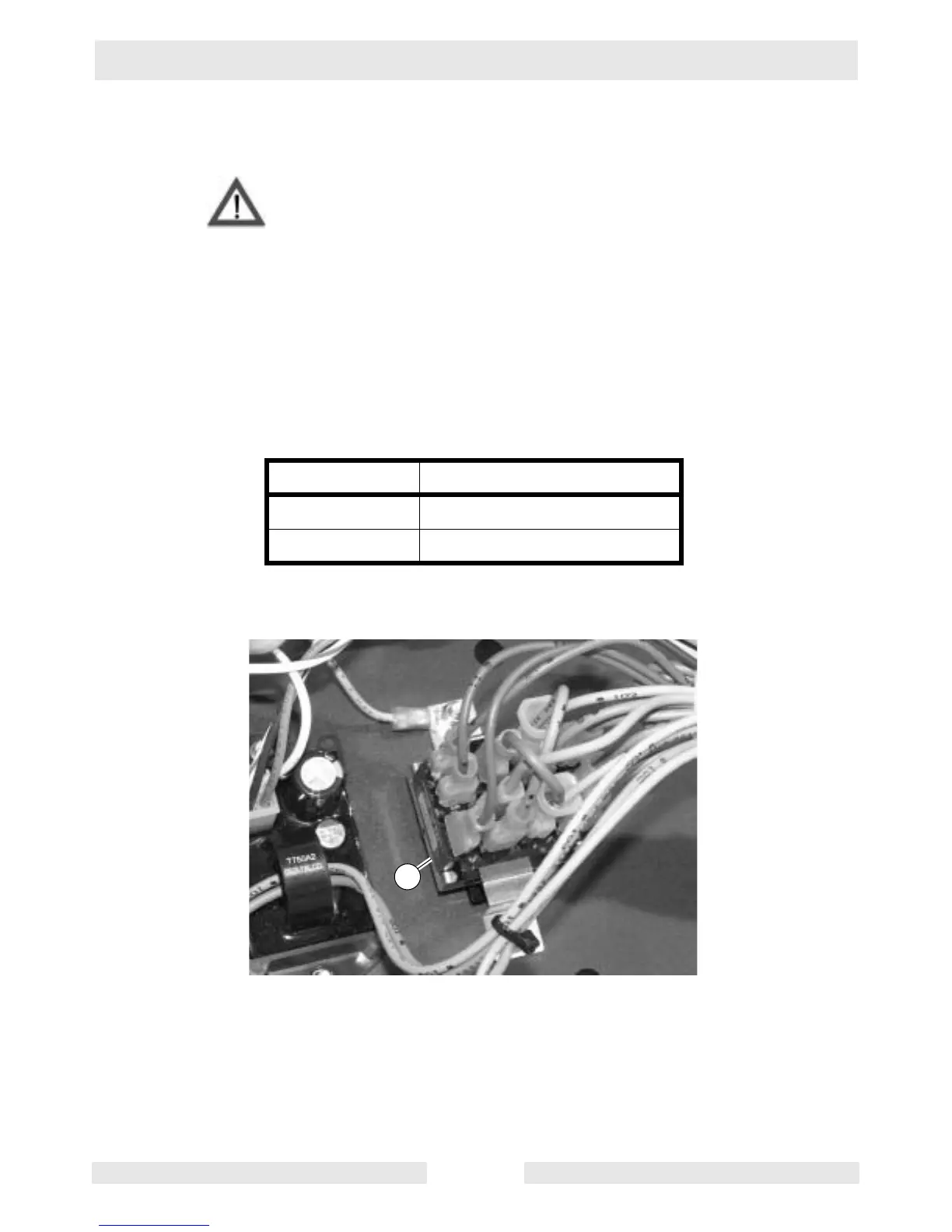

The VSS (a) selects the voltage mode setting of the generator.
Changing the voltage mode also changes the orientation of the
Automatic Voltage Regulator (AVR) sensing wires. Use the following
information when testing and installing the VSS.
Position Terminals with Continuity
120V/240V 1–2; 4–5; 7–8; 10–11
120V 2–3; 5–6; 8–9; 11–12
WARNING
wc_gr003135
a
