Lifting the Machine LTN 6L-V
3 Lifting the Machine
Overview
The machine is equipped with fork lift pockets (a) and a lifting eye (b).
Requirements
Before lifting the machine, make sure that the following requirements have been
met.
Machine is stopped
Tower is completely lowered
Lights have been rotated so that they are level with the ground
Doors are properly latched
Outriggers have been returned to their travel position
Outrigger bars and jacks are locked in place
Rear jack (c) is completely cranked in and rotated 90°
Lifting devices have enough weight-bearing capacity to lift and move the
machine safely. See Technical Data.
Lifting the
machine
To lift the machine:
use a forklift and the designated forklift pockets
attach a sling or chain to the lifting eye

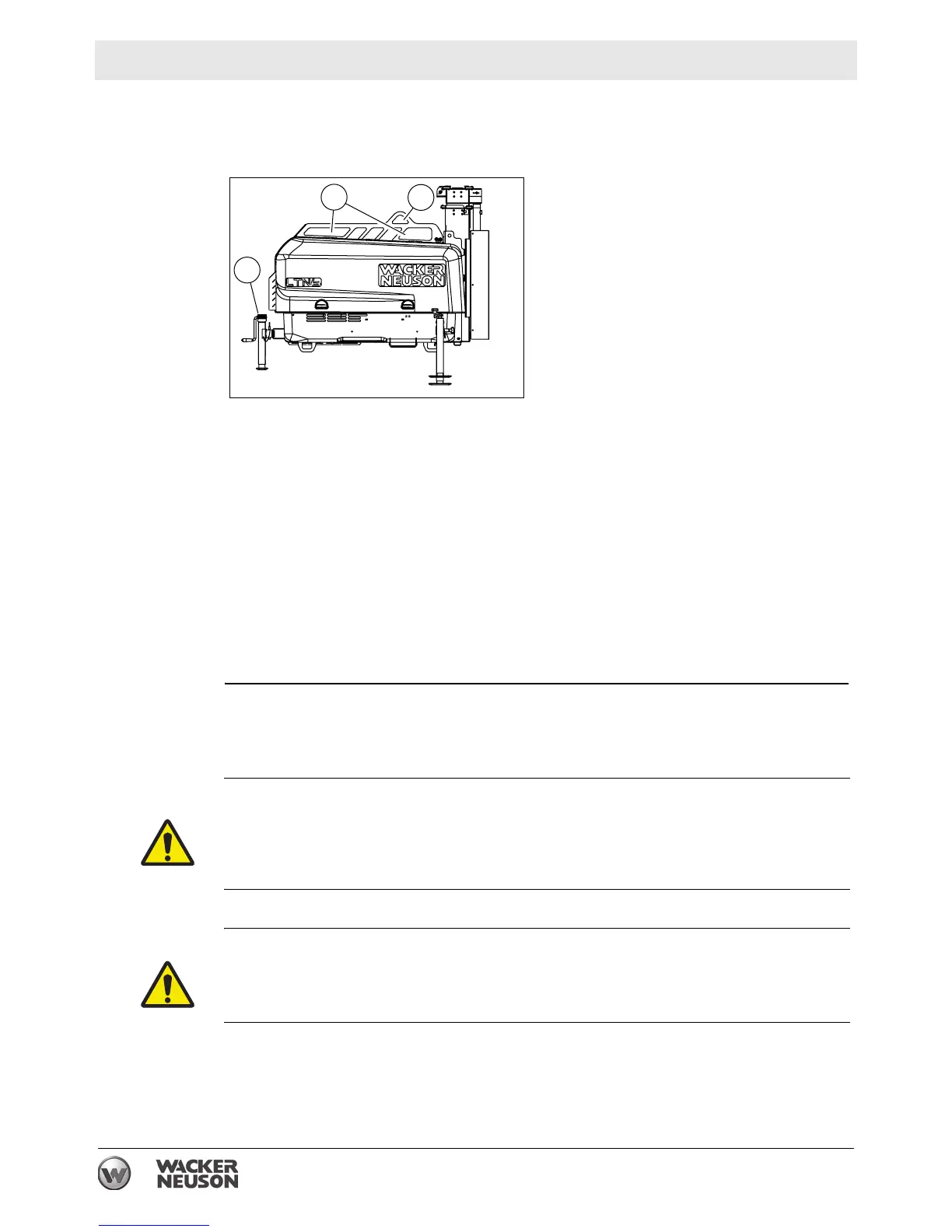

wc_gr009316
c
a
b
WARNING
Crushing hazard. The machine can drop if the lifting gear is attached to any part of
the machine other than the designated lifting locations. Only the designated lifting
locations can support the weight of the machine.
f Use only the supplied forklift pockets or lifting eye to lift the machine.
WARNING
Crushing hazard.
f Keep people away from the machine as it is being lifted. Do not allow anyone to
stand beneath the machine.
