LTN 6L-V Operation
4.11 Raising the Tower - LTN 6L-V
Overview
The tower is raised by the action of a hydraulic cylinder (c).
Note: The tower can be raised without running the engine.
Procedure
Perform the procedure below to raise the tower.
1. If equipped, engage the parking brake on the trailer.
Note: The tower will not raise if the brake is not engaged.
2. Aim the lights. See topic Aiming the Lights.
3. Start the engine. See topic Starting the Machine.
4. Turn on the circuit breakers (a,b). See topic Operating the Lights.
5. Press and hold the upper half of the tower switch (d). Release the switch when
the tower reaches the desired height. See topic Rotating the Mast for more
information.
WARNING
Personal injury hazard. Raising or lowering the tower creates situations that if not
avoided, will cause death or serious injury from striking, crushing, pinching,
electrocution, etc.
f Keep the area under and around the lights clear of people and obstructions
while raising and lowering the tower.

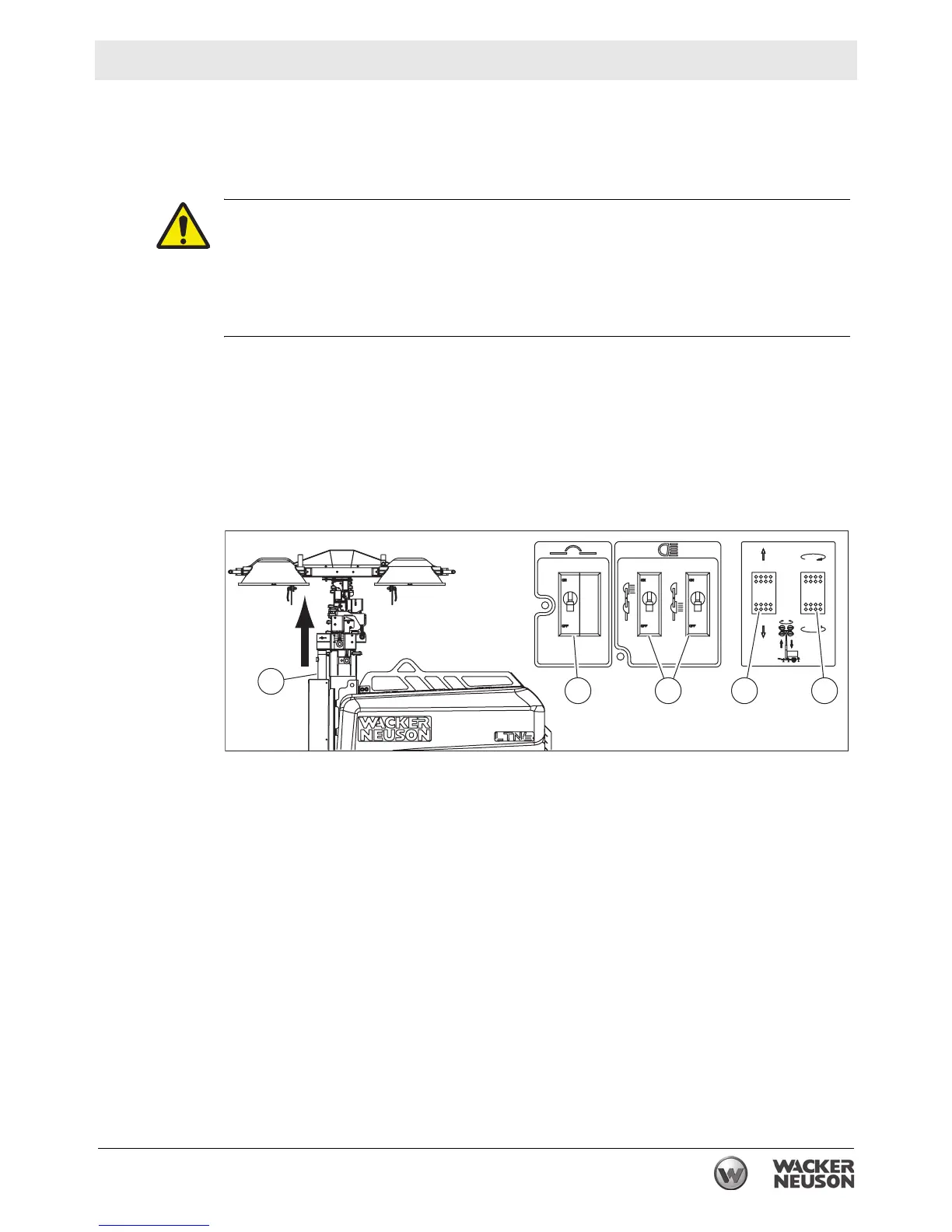

wc_gr009319
c
a b d e
